TOYOTA WISH ZGE22R-HWXQP / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

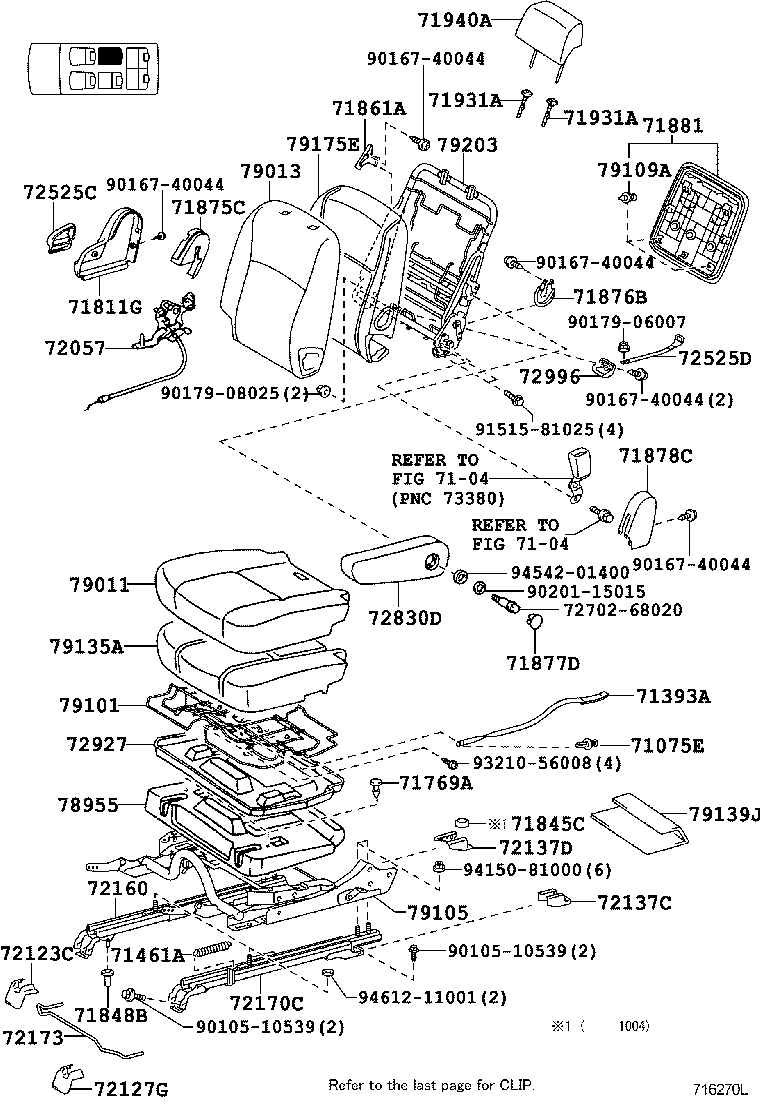

REAR SEAT SEAT TRACK

REAR NO.1 SEAT (RH) ILLUST NO. 1 OF 4(1006- )ZGE22

WISH | REAR SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71075E - CLIP(FOR REAR SEAT) 71393A - BAND, REAR SEAT CUSHION, RH 71461A - SPRING, REAR SEAT CUSHION, NO.1 71769A - CLIP, REAR SEAT BACK BOARD 71811G - SHIELD, REAR SEAT CUSHION, RH 71845C - CAP, REAR SEAT COVER 71848B - CAP, SEAT ADJUSTER COVER, RH 71861A - SHIELD, REAR SEAT CUSHION, INNER RH 71875C - COVER, RECLINING ADJUSTER INSIDE, RH 71876B - COVER, RECLINING ADJUSTER INSIDE, LH 71877D - COVER, REAR SEAT ARMREST HOLE 71878C - COVER, REAR SEAT RECLINING, INNER RH 71881 - BOARD, REAR SEAT BACK, RH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH 72123C - COVER, SEAT TRACK BRACKET, OUTER FRONT RH 72127G - COVER, SEAT TRACK BRACKET, INNER FRONT RH 72137C - COVER, SEAT TRACK INNER, RH 72137D - COVER, REAR SEAT TRACK, RH 72160 - TRACK ASSY, REAR SEAT, OUTER RH 72170C - TRACK ASSY, REAR NO.1 SEAT, INNER RH 72173 - HANDLE, REAR SEAT TRACK ADJUSTING 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH ** Std Part 72830D - ARMREST ASSY, REAR SEAT, RH 72927 - COVER, REAR SEAT CUSHION UNDER, RH 72996 - COVER, REAR SEAT BACK, RH 78955 - COVER, REAR SEAT UNDER TRAY RH 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH 79101 - FRAME SUB-ASSY, NO.1 SEAT CUSHION 79105 - LEG SUB-ASSY, NO.1 SEAT, RH 79109A - CLIP (FOR NO.1 SEAT BACK BOARD) 79135A - PAD, NO.1 SEAT CUSHION, RH 79139J - CLOTH, NO.1 SEAT CUSHION RH 79175E - PAD, NO.1 SEAT BACK, RH 79203 - FRAME SUB-ASSY, NO.2 SEAT BACK ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
