TOYOTA YARIS ASIA NCP91R-AHPDKD / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

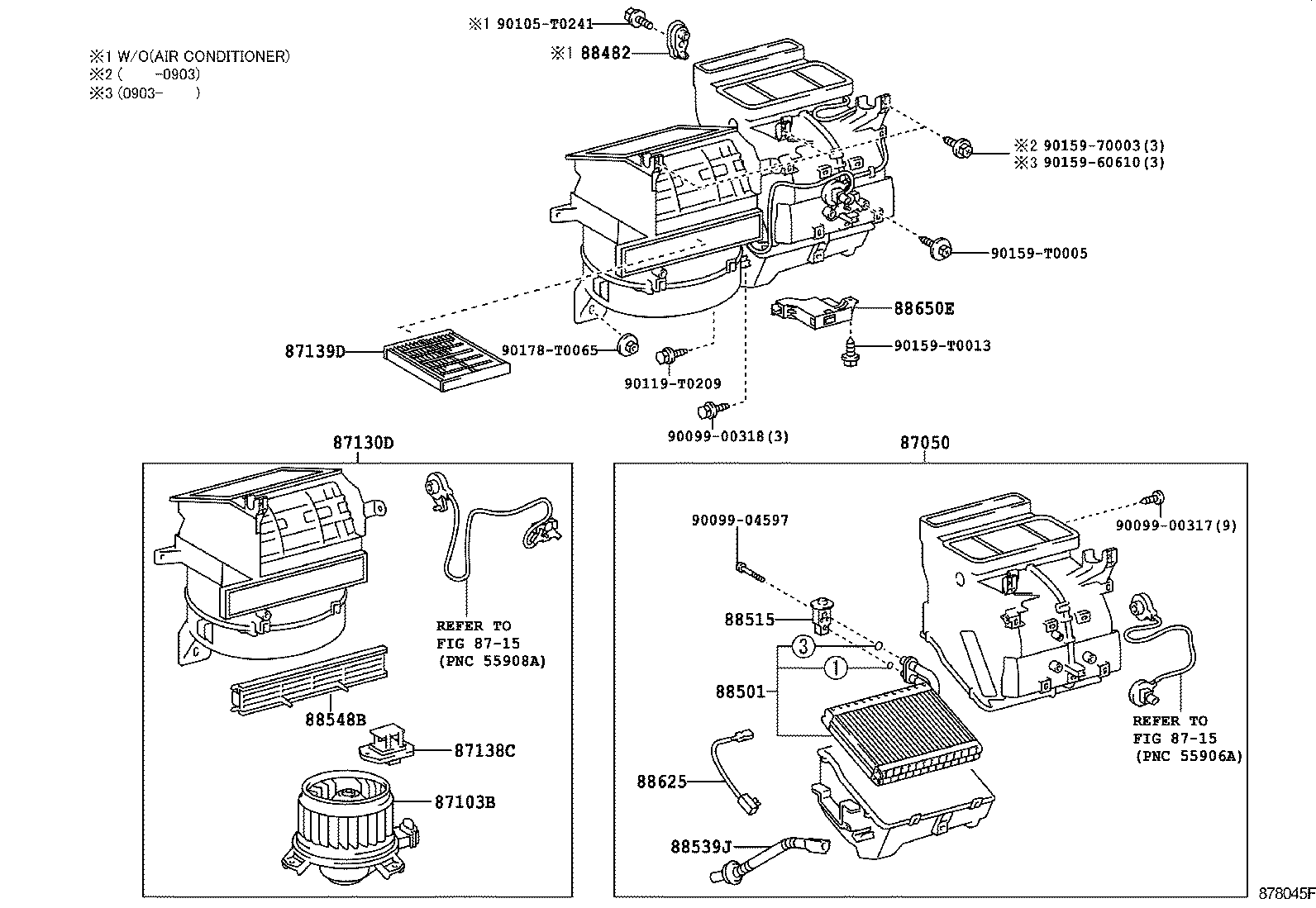

ILLUST NO. 1 OF 2(0601- )RHD

YARIS ASIA | HEATING AIR CONDITIONING COOLER UNIT 87050 - RADIATOR ASSY, AIR CONDITIONER 87103B - MOTOR SUB-ASSY, BLOWER W/FAN 87130D - BLOWER ASSY 87138C - RESISTOR, BLOWER 87139D - ELEMENT, AIR REFINER ** Refer Fig ** Refer Fig 88482 - CAP, COOLER 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88515 - VALVE, COOLER EXPANSION 88539J - HOSE, DRAIN COOLER 88548B - CASE, AIR FILTER 88625 - THERMISTOR, COOLER, NO.1 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
