TOYOTA YARIS ASIA NCP91R-AHPVKE / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

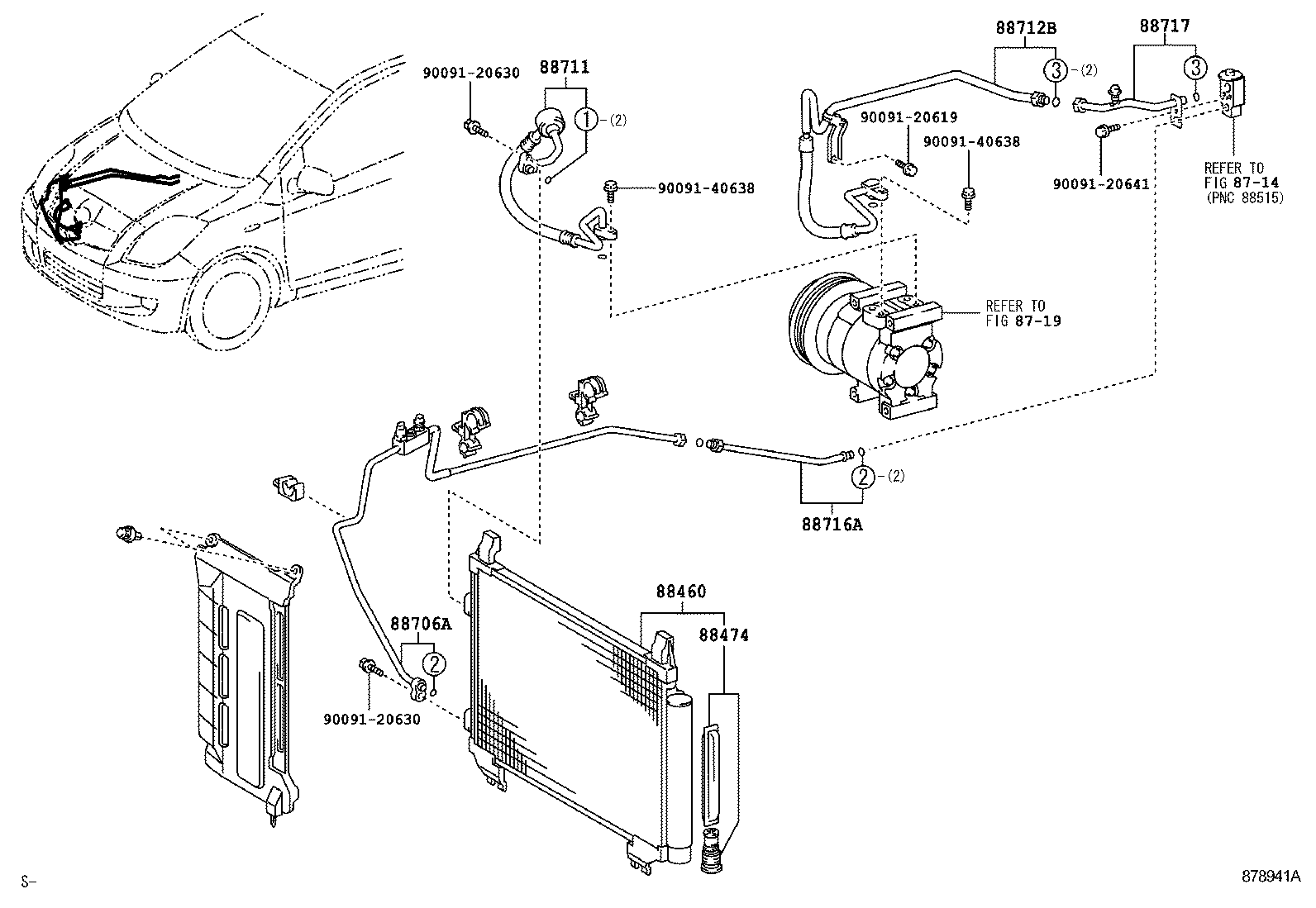

HEATING AIR CONDITIONING COOLER PIPING

DEALER OPTION ILLUST NO. 1 OF 2(0601- )S..MA ; (0601- )E,G..MA,TH

YARIS ASIA | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 88460 - CONDENSER ASSY, COOLER 88474 - DRYER, COOLER 88706A - TUBE SUB-ASSY, LIQUID, A 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712B - HOSE, COOLER REFRIGERANT SUCTION 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
