TOYOTA CAMRY HYBRID ASIA AHV40R-JEXGBT / POWERTRAIN-CHASSIS / TRANSAXLE ASSY HYBRID VEHICLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

TRANSAXLE ASSY HYBRID VEHICLE

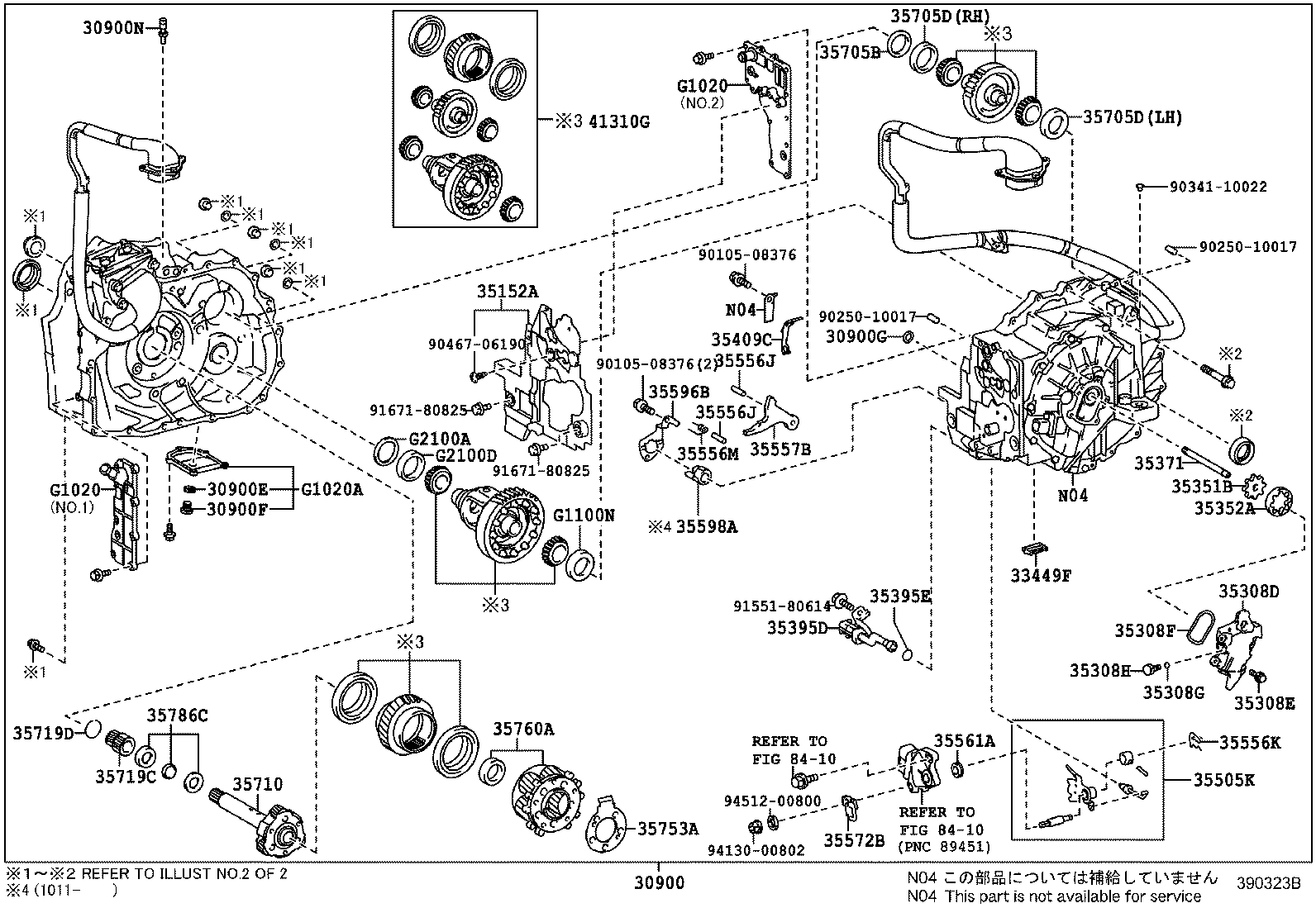

ILLUST NO. 1 OF 2(0907- )AHV40

CAMRY HYBRID ASIA | TRANSAXLE ASSY HYBRID VEHICLE 30900 - TRANSAXLE ASSY, HYBRID VEHICLE 30900E - GASKET(FOR TRANSAXLE HOUSING & CASE) 30900F - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE) 30900G - GASKET, NO.2(FOR TRANSAXLE HOUSING & CASE) 30900N - PLUG, BREATHER(FOR TRANSAXLE) 33449F - MAGNET, TRANSMISSION NO.1 35152A - COVER, AUTOMATIC TRANSMISSION CASE, NO.2 35308D - COVER SUB-ASSY, TRANSMISSION OIL PUMP 35308E - BOLT, W/WASHER (FOR TRANSMISSION OIL PUMP COVER) 35308F - RING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER) 35308G - RING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER) 35308H - PLUG (FOR TRANSMISSION OIL PUMP COVER) 35351B - ROTOR, TRANSAXLE OIL PUMP DRIVE 35352A - ROTOR, TRANSMISSION OIL PUMP DRIVEN 35371 - SHAFT, OIL PUMP DRIVE 35395D - STRAINER, TRANSMISSION OIL 35395E - RING, O(FOR TRANSAXLE OIL STRAINER) 35409C - SPRING SUB-ASSY, MANUAL DETENT 35505K - LEVER SUB-ASSY, PARKING LOCK, NO.1 35556J - SHAFT, PARKING LOCK PAWL 35556J - SHAFT, PARKING LOCK PAWL 35556K - SPRING, RETAINER 35556M - SPRING, TORSION 35557B - PAWL, PARKING LOCK 35561A - SEAL, TYPE T OIL(FOR PARKING LOCK SHAFT) 35572B - LEVER, TRANSMISSION, OUTER 35596B - PLATE, PAWL STOPPER 35598A - SLEEVE, PARKING LOCK 35705B - SHIM(FOR COUNTER DRIVEN GEAR) 35705D - OUTER RACE, TAPERED ROLLER BEARING(FOR COUNTER DRIVEN GEAR ) 35705D - OUTER RACE, TAPERED ROLLER BEARING(FOR COUNTER DRIVEN GEAR ) 35710 - SHAFT ASSY, INPUT 35719C - GEAR, PLANETARY SUN 35719D - RING, SNAP(FOR PLANETARY SUN GEAR) 35753A - RECEIVER, PLANETARY OIL 35760A - GEAR ASSY, REAR PLANETARY NO.1 35786C - RACE, THRUST BEARING, NO.1 41310G - GEAR KIT, DIFFERENTIAL & COUNTER DRIVEN ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G1020 - COVER ASSY, MOTOR WATER JACKET, NO.1 G1020 - COVER ASSY, MOTOR WATER JACKET, NO.1 G1020A - COVER ASSY, MOTOR WATER JACKET, NO.2 G1100N - OUTER RACE, TAPERED ROLLER BEARING LH G2100A - SHIM(FOR DIFFERENTIAL CASE RH) G2100D - OUTER RACE, TAPERED ROLLER BEARING RH
