TOYOTA HILUX GGN15R-CRASKQ / BODY / REAR FLOOR PANEL REAR FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

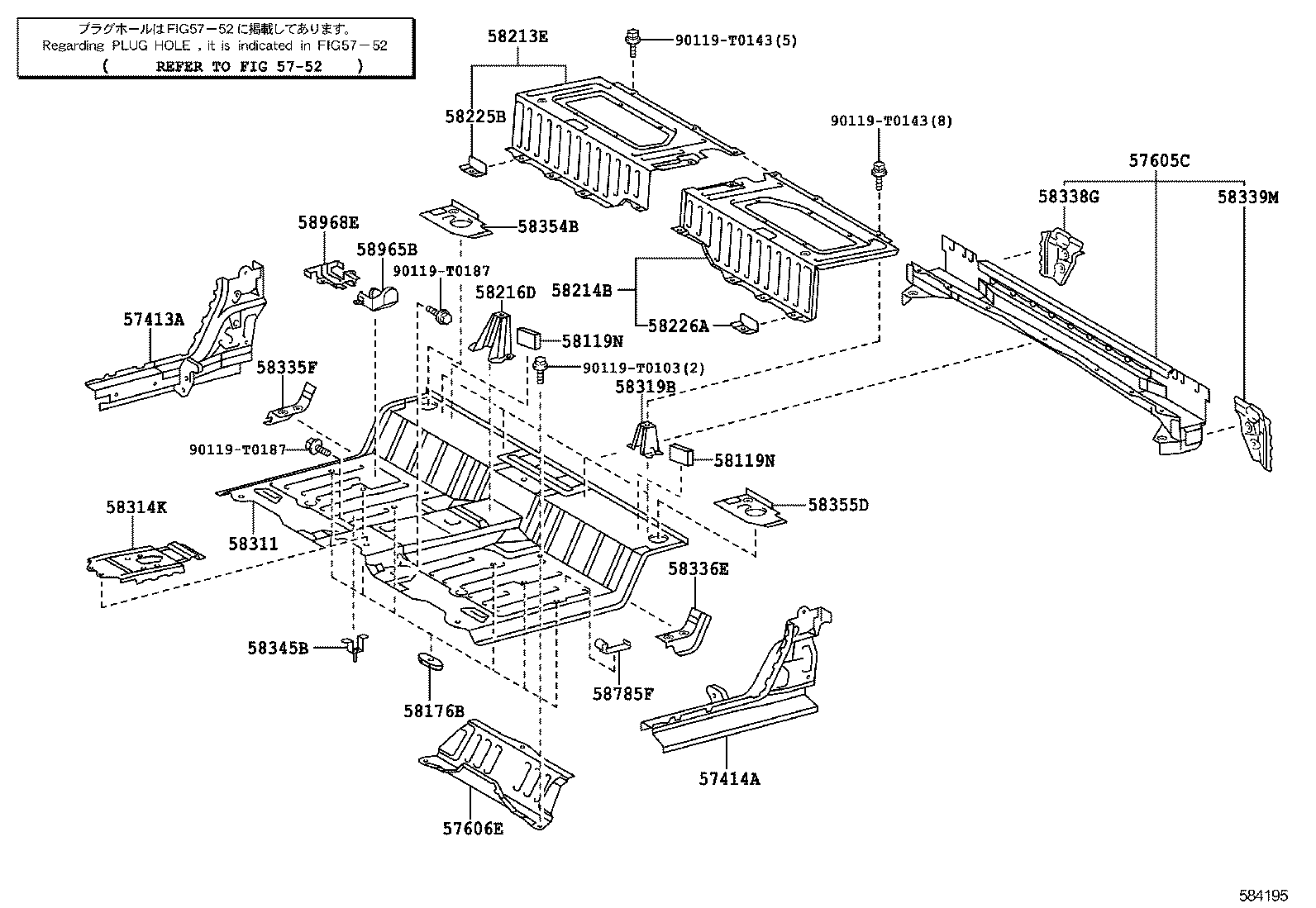

REAR FLOOR PANEL REAR FLOOR MEMBER

(1107- )SMT,XTR

HILUX | REAR FLOOR PANEL REAR FLOOR MEMBER 57413A - MEMBER, FLOOR SIDE, INNER REAR RH 57414A - MEMBER, FLOOR SIDE, INNER REAR LH ** Refer Fig 57605C - MEMBER SUB-ASSY, REAR FLOOR CROSS 57606E - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 58119N - CUSHION, REAR FLOOR 58119N - CUSHION, REAR FLOOR 58176B - PLATE, RR SEAT SETTING NUT 58213E - PANEL, SEAT FLOOR SIDE, RH 58214B - PANEL, SEAT FLOOR SIDE, LH 58216D - BRACKET, REAR SEAT MOUNTING, LH 58225B - PLATE, FRONT FLOOR SIDE, LOWER RH 58226A - PLATE, FRONT FLOOR SIDE, LOWER LH 58311 - PAN, REAR FLOOR 58314K - PANEL, REAR FLOOR, CENTER 58319B - BRACKET, REAR FLOOR SIDE PANEL 58335F - PLATE, FLOOR SIDE, FRONT RH 58336E - PLATE, FLOOR SIDE, FRONT LH 58338G - GUSSET, CAB REAR MOUNTING, RR RH 58339M - GUSSET, CAB REAR MOUNTING, REAR LH 58345B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1 58354B - REINFORCEMENT, REAR FLOOR PANEL, NO.4 58355D - REINFORCEMENT, REAR FLOOR PANEL, NO.5 58785F - BRACKET, TOOL BAG BAND 58965B - HOLDER, JACK 58968E - BRACKET, JACK SUPPORT, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
