TOYOTA COASTER XZB59R-ZEMQY5 / TOOL-ENGINE-FUEL / INJECTION PUMP ASSEMBLY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

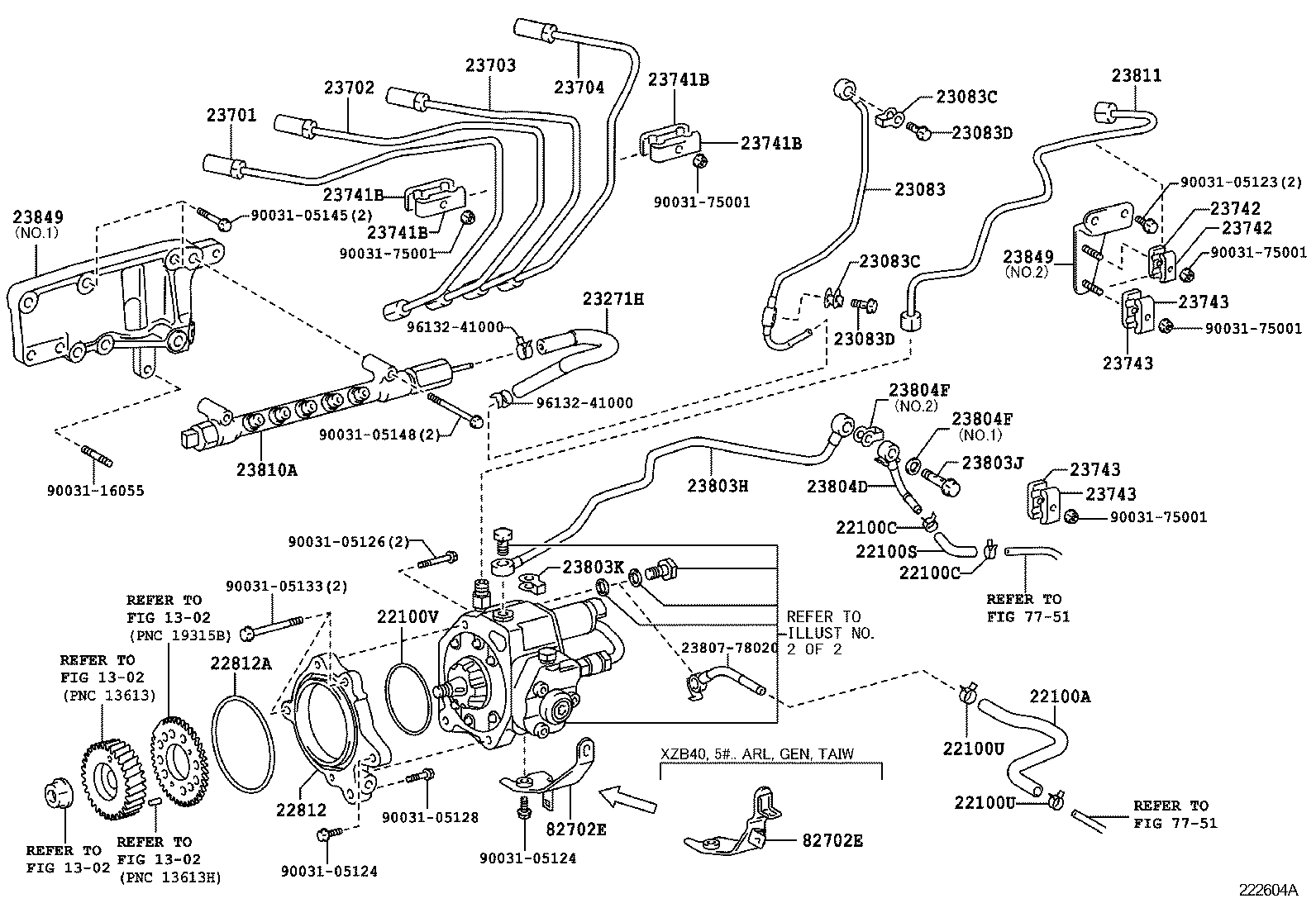

INJECTION PUMP ASSEMBLY

ILLUST NO. 1 OF 2(1108- )N04C

 COASTER |  INJECTION PUMP ASSEMBLY ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) 22100C - CLAMP, FUEL HOSE, NO.2 22100C - CLAMP, FUEL HOSE, NO.2 22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE) 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) 22100V - RING, O(FOR INJECTION PUMP) 22812 - RETAINER, INJECTION PUMP 22812A - RING, O 23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3 23083C - GASKET(NOZZLE LEKAGE PIPE NO.3) 23083C - GASKET(NOZZLE LEKAGE PIPE NO.3) 23083D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) 23083D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) 23271H - HOSE, FUEL, NO.1 23701 - PIPE SUB-ASSY, INJECTION, NO.1 23702 - PIPE SUB-ASSY, INJECTION, NO.2 23703 - PIPE SUB-ASSY, INJECTION, NO.3 23704 - PIPE SUB-ASSY, INJECTION, NO.4 23741B - CLAMP, INJECTION PIPE 23741B - CLAMP, INJECTION PIPE 23741B - CLAMP, INJECTION PIPE 23741B - CLAMP, INJECTION PIPE 23742 - CLAMP, INJECTION PIPE, NO.2 23742 - CLAMP, INJECTION PIPE, NO.2 23743 - CLAMP, INJECTION PIPE, NO.3 23743 - CLAMP, INJECTION PIPE, NO.3 23743 - CLAMP, INJECTION PIPE, NO.3 23743 - CLAMP, INJECTION PIPE, NO.3 23803H - PIPE SUB-ASSY, FUEL RETURN 23803J - BOLT, UNION(FOR FUEL RETURN PIPE) 23803K - GASKET(FOR FUEL RETURN PIPE) 23804D - PIPE SUB-ASSY, FUEL, NO.4 23804F - GASKET(FOR FUEL PIPE NO.4) 23804F - GASKET(FOR FUEL PIPE NO.4)  ** Std Part 23810A - RAIL ASSY, COMMON 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) 23849 - SUPPORT, FUEL 23849 - SUPPORT, FUEL ** Refer Fig ** Refer Fig 82702E - BRACKET SUB-ASSY, WIRING HARNESS 82702E - BRACKET SUB-ASSY, WIRING HARNESS  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
