TOYOTA ETIOS LIVA CROSS NUK15R-AEMRXX / TOOL-ENGINE-FUEL / CYLINDER BLOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

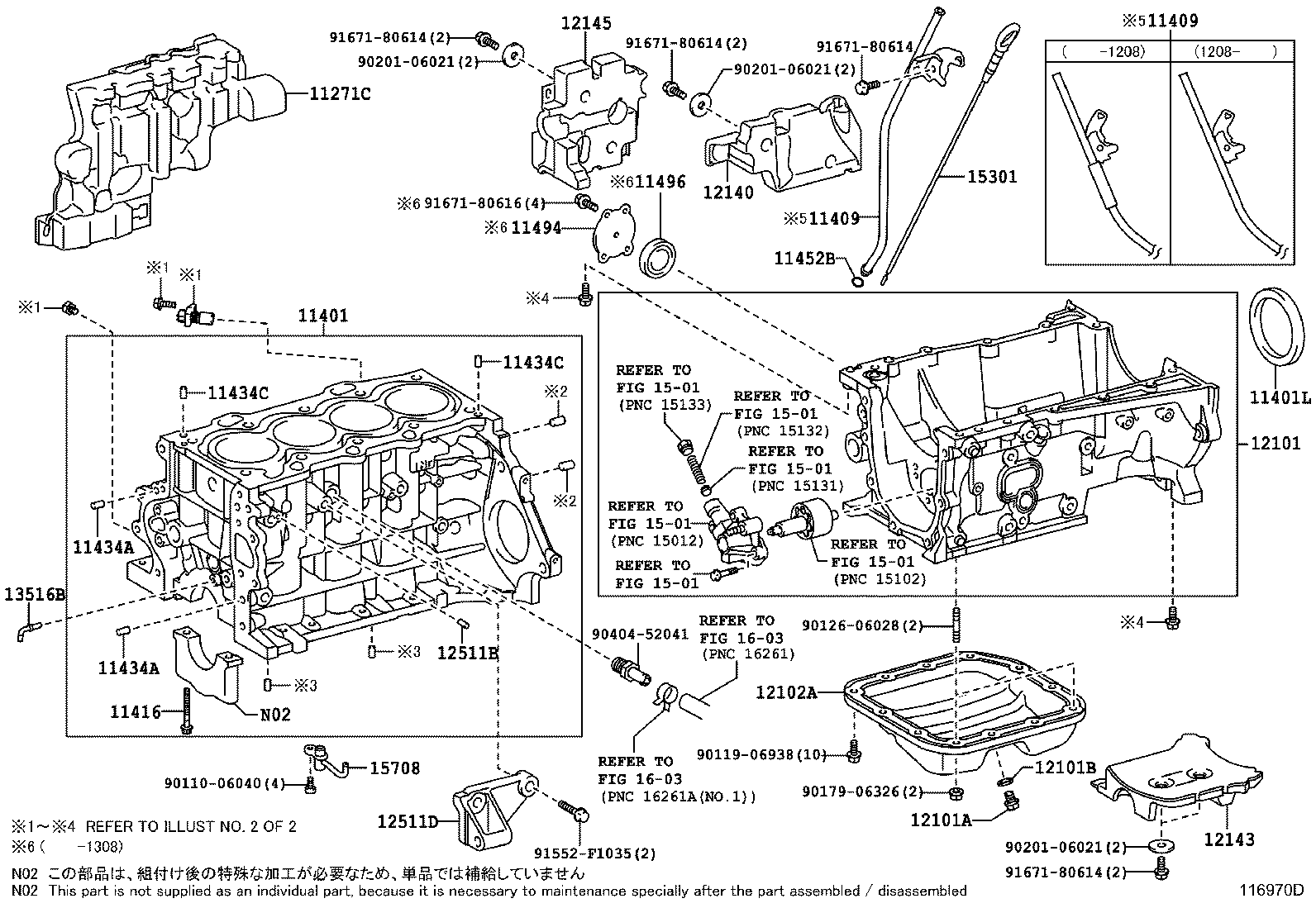

CYLINDER BLOCK

ILLUST NO. 1 OF 2(1108- )1NDTV

 ETIOS LIVA CROSS |  CYLINDER BLOCK 11271C - COVER, CYLIVDER BLOCK SIDE 11401 - BLOCK SUB-ASSY, CYLINDER 11401L - SEAL, ENGINE REAR OIL 11409 - GUIDE SUB-ASSY, OIL LEVEL GAGE 11409 - GUIDE SUB-ASSY, OIL LEVEL GAGE 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) 11494 - PLATE, OIL HOLE COVER 11496 - GASKET, OIL HOLE COVER PLATE 12101 - PAN SUB-ASSY, OIL 12101A - PLUG(FOR OIL PAN DRAIN) 12101B - GASKET(FOR OIL PAN DRAIN PLUG) 12102A - PAN SUB-ASSY, OIL, NO.2 12140 - COVER, OIL PAN 12143 - COVER, OIL PAN 12145 - SILENCER, OIL PAN COVER, NO.2 12511B - PIN, RING(FOR ALTERNATOR BRACKET) 12511D - BRACKET, ALTERNATOR 13516B - JET, OIL ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 15301 - GAGE SUB-ASSY, OIL LEVEL 15708 - NOZZLE SUB-ASSY, OIL, NO.1 ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
