TOYOTA ETIOS LIVA CROSS NUK15R-AEMRXX / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

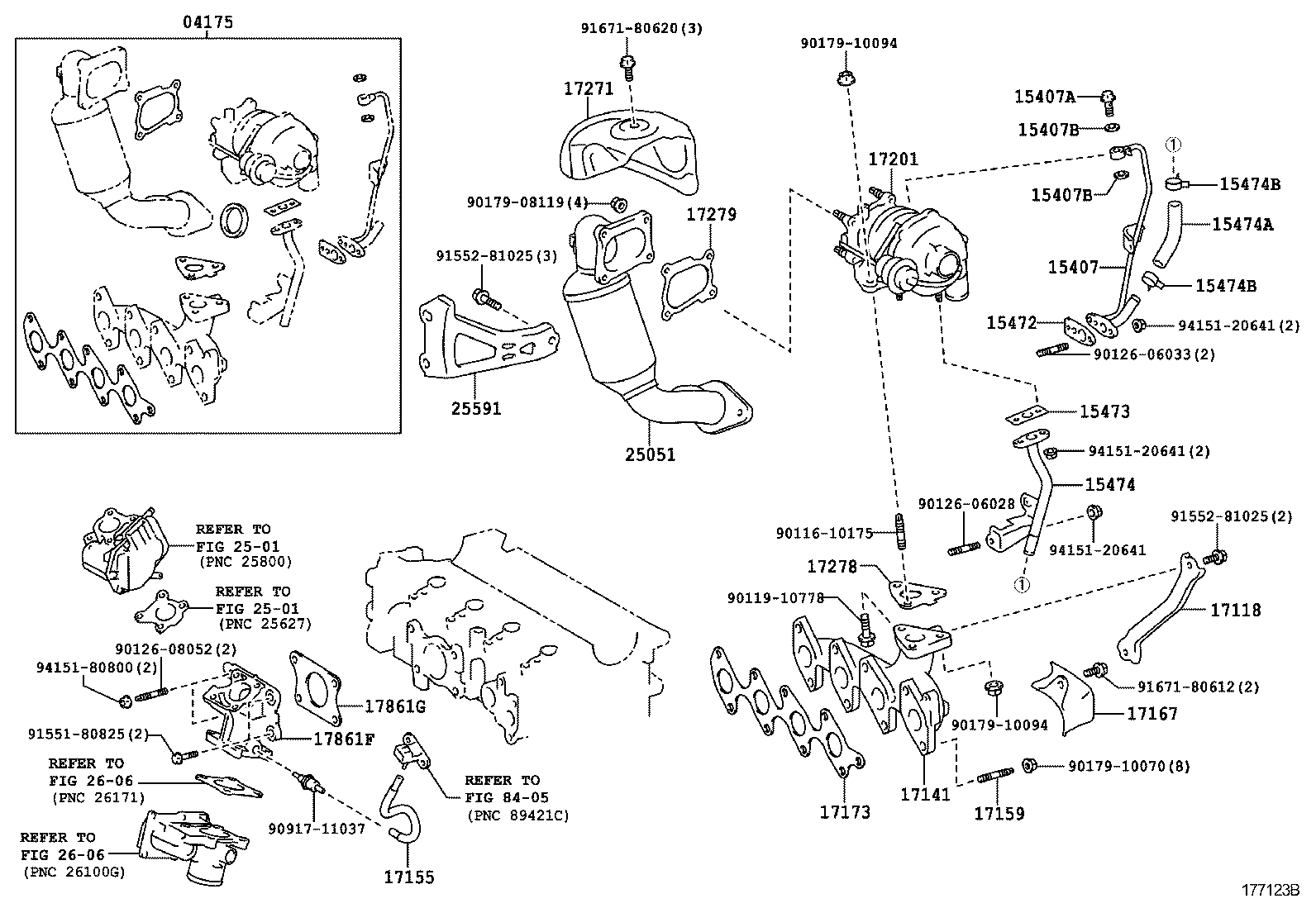

MANIFOLD

(1108- )1NDTV

 ETIOS LIVA CROSS |  MANIFOLD 04175 - GASKET KIT, TURBOCHARGER 15407 - PIPE SUB-ASSY, TURBO OIL INLET 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15472 - GASKET, TURBO OIL OUTLET, NO.1 15473 - GASKET, TURBO OIL OUTLET, NO.2 15474 - PIPE, TURBO OIL OUTLET 15474A - HOSE, TURBO OIL OUTLET 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) 17118 - STAY, MANIFOLD 17141 - MANIFOLD, EXHAUST 17155 - HOSE(FOR MANIFOLD) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17201 - TURBOCHARGER SUB-ASSY 17271 - INSULATOR, TURBO, NO.1 17278 - GASKET, TURBO TO EXHAUST MANIFOLD 17279 - GASKET, TURBINE OUTLET ELBOW 17861F - CONNECTOR, INTAKE AIR 17861G - GASKET, INTAKE AIR CONNECTOR ** Refer Fig ** Refer Fig 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD 25591 - BRACKET, MANIFOLD SUPPORT ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
