TOYOTA AVALON GSX40L-AETPKV / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

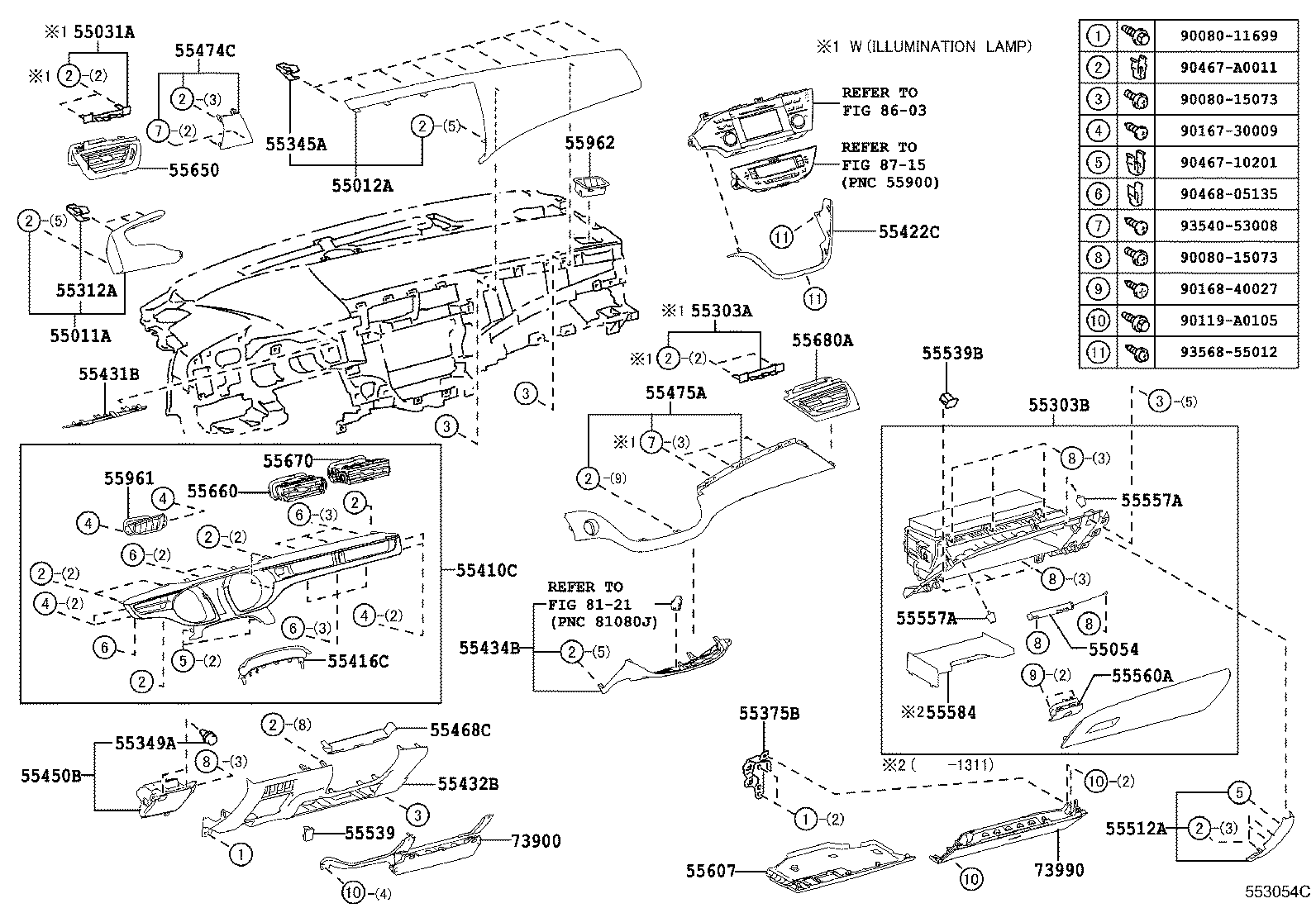

INSTRUMENT PANEL GLOVE COMPARTMENT

ILLUST NO. 2 OF 2(1210- )

AVALON | INSTRUMENT PANEL GLOVE COMPARTMENT 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 55031A - STAY SUB-ASSY, INSTRUMENT PANEL, NO.1 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR 55303A - STAY SUB-ASSY, INSTRUMENT PANEL 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER 55312A - CLIP, INSTRUMENT PANEL 55345A - CLIP, INSTRUMENT PANEL, NO.1 55349A - CUSHION, INSTRUMENT PANEL 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER 55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER 55450B - BOX ASSY, COIN 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 55512A - PLATE, GLOVE COMPARTMENT 55539 - COVER, SPARE SWITCH HOLE 55539B - COVER, SPARE SWITCH HOLE, NO.2 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR 55584 - HOLDER, MAP 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 55961 - NOZZLE, SIDE DEFROSTER, NO.1 55962 - NOZZLE, SIDE DEFROSTER, NO.2 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
