TOYOTA CAMRY HYBRID ASIA AVV50R-JEXVBX / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

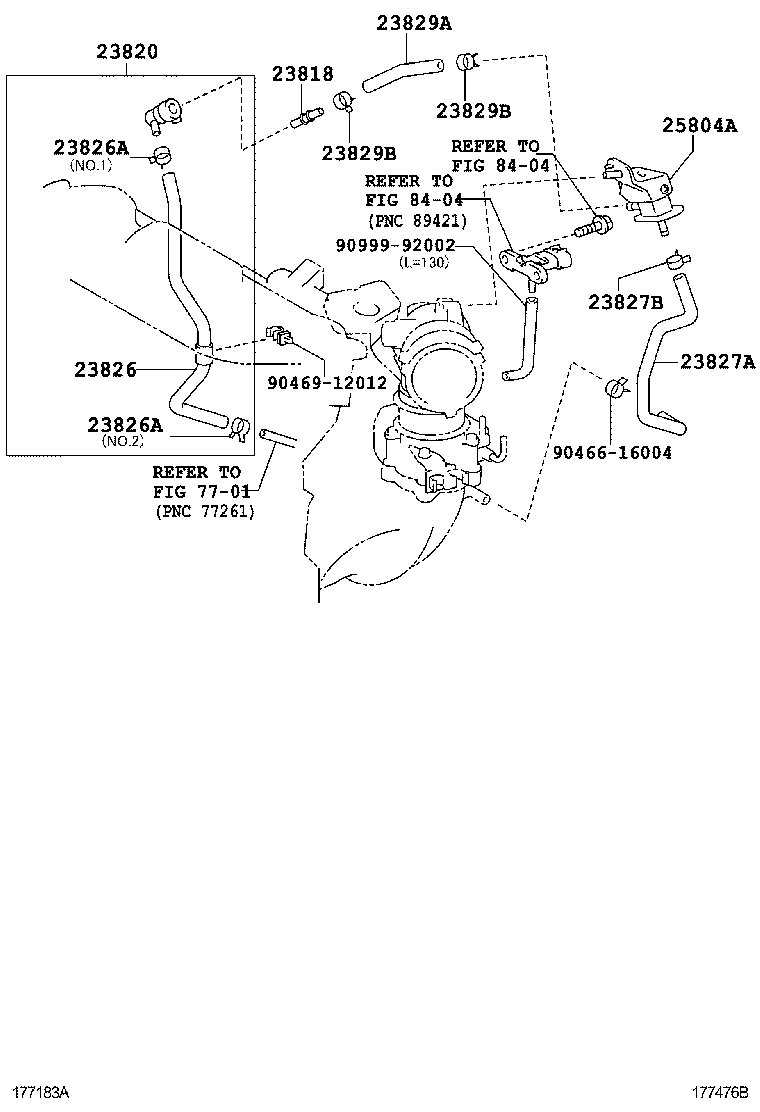

VACUUM PIPING

(1202- )2ARFXE

CAMRY HYBRID ASIA | VACUUM PIPING 23818 - PIPE, FUEL VAPOR FEED 23820 - HOSE ASSY, FUEL VAPOR FEED 23826 - HOSE, FUEL VAPOR FEED, NO.1 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) 23827A - HOSE, FUEL VAPOR FEED, NO.2 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) 23829A - HOSE, FUEL VAPOR FEED 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) 25804A - VALVE SUB-ASSY, VACUUM SWITCHING ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part
