TOYOTA LAND CRUISER 200 VDJ200L-GNTEZ / BODY / BACK DOOR LOCK HINGE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BACK DOOR LOCK HINGE

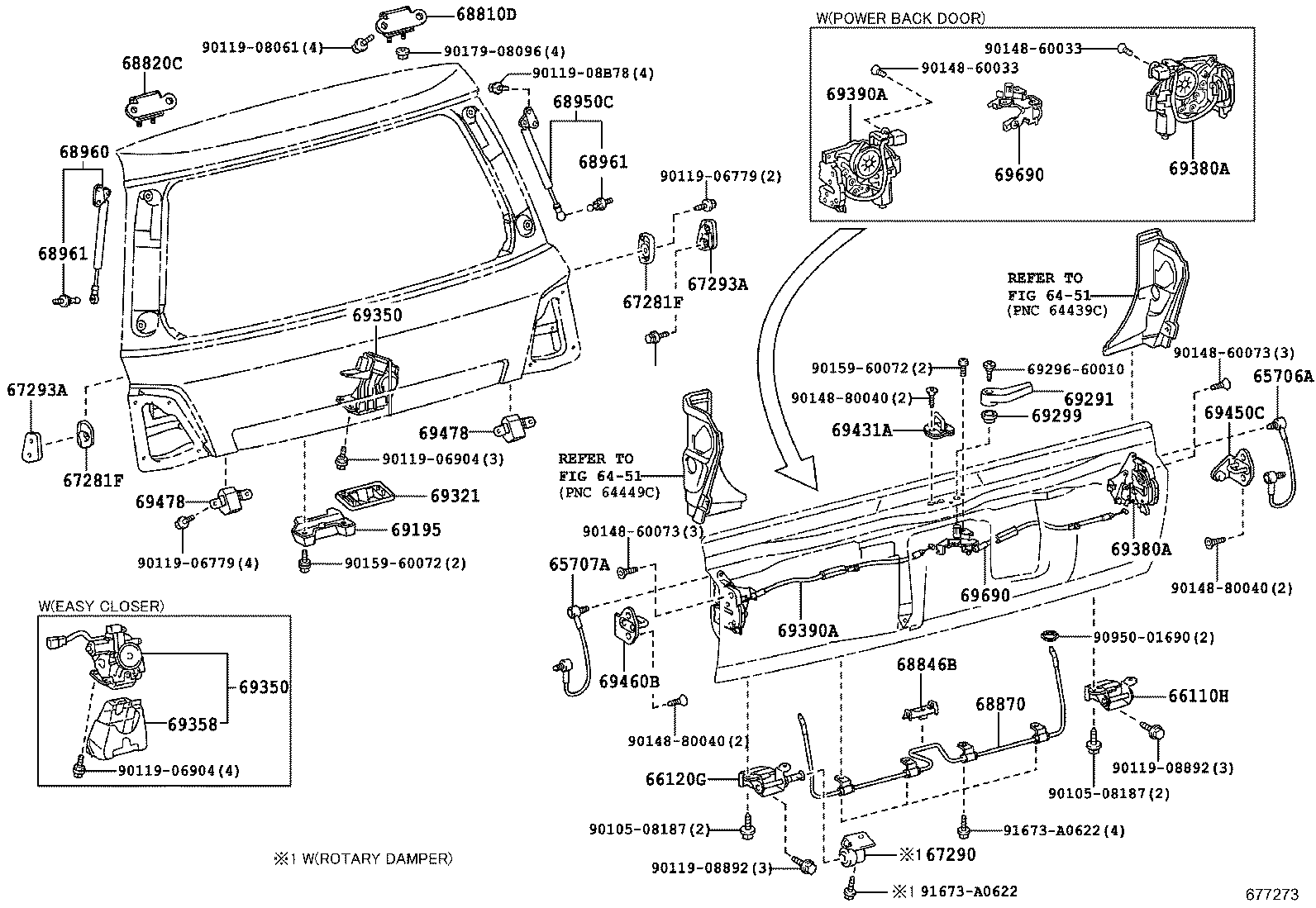

ILLUST NO. 1 OF 2(1201- )LUB

LAND CRUISER 200 | BACK DOOR LOCK HINGE ** Refer Fig ** Refer Fig 65706A - STAY SUB-ASSY, TAIL GATE, RH 65707A - STAY SUB-ASSY, TAIL GATE, LH 66110H - HINGE ASSY, TAIL GATE, RH 66120G - HINGE ASSY, TAIL GATE, LH 67281F - STOPPER, BACK DOOR, LOWER 67281F - STOPPER, BACK DOOR, LOWER 67290 - DAMPER ASSY, BACK DOOR 67293A - CUSHION, BACK DOOR STOPPER 67293A - CUSHION, BACK DOOR STOPPER 68810D - HINGE ASSY, BACK DOOR, RH 68820C - HINGE ASSY, BACK DOOR, LH 68846B - GUIDE, BACK DOOR TORSION BAR 68870 - BAR ASSY, BACK DOOR LOWER TORSION 68950C - STAY ASSY, BACK DOOR, RH 68960 - STAY ASSY, BACK DOOR, LH 68961 - BOLT, BACK DOOR STAY 68961 - BOLT, BACK DOOR STAY 69195 - GRIP, BACK DOOR 69291 - HANDLE ASSY, BACK DOOR INSIDE ** Std Part 69299 - GROMMET, BACK DOOR HANDLE 69321 - COVER, BACK DOOR LOCK 69350 - LOCK ASSY, BACK DOOR 69350 - LOCK ASSY, BACK DOOR 69358 - PROTECTOR, BACK DOOR LOCK 69380A - LOCK ASSY, TAIL GATE, LOWER RH 69380A - LOCK ASSY, TAIL GATE, LOWER RH 69390A - LOCK ASSY, TAIL GATE, LOWER LH 69390A - LOCK ASSY, TAIL GATE, LOWER LH 69431A - STRIKER, REAR SWING GATE LOCK 69450C - STRIKER ASSY, BACK DOOR LOCK, RH 69460B - STRIKER ASSY, BACK DOOR LOCK, LH 69478 - CUSHION, BACK DOOR LOWER STOPPER 69478 - CUSHION, BACK DOOR LOWER STOPPER 69690 - CONTROL ASSY, BACK DOOR REMOTE 69690 - CONTROL ASSY, BACK DOOR REMOTE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
