TOYOTA LAND CRUISER 200 VDJ200L-GNTEZ / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

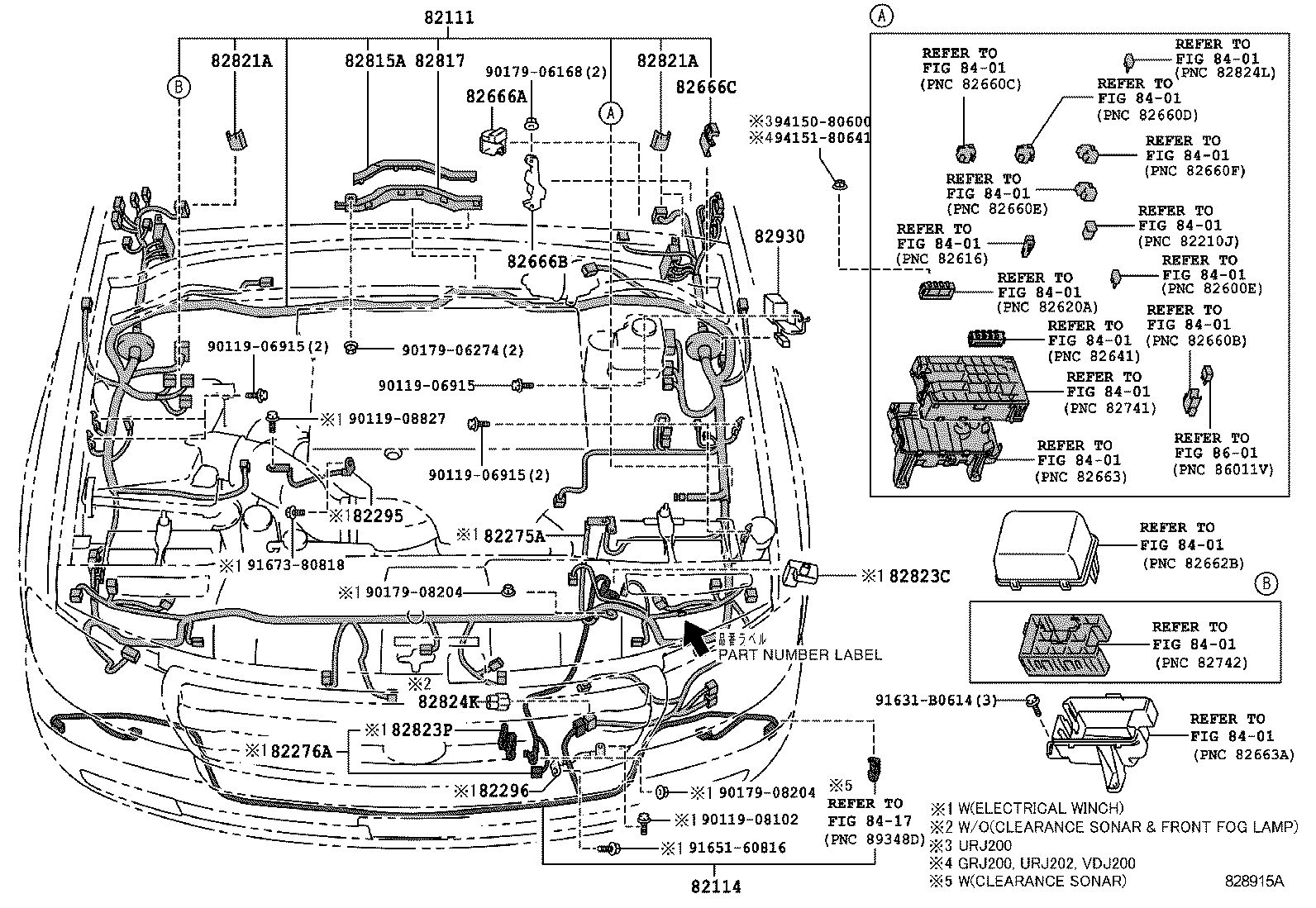

ENGINE ROOM ILLUST NO. 1 OF14(1301- )LHD

LAND CRUISER 200 | WIRING CLAMP 82111 - WIRE, ENGINE ROOM MAIN 82114 - WIRE, ENGINE ROOM, NO.4 82275A - CABLE, BATTERY TO MAGNET SWITCH 82276A - CABLE, MAGNET SWITCH TO WINCH 82295 - WIRE, WINCH EARTH 82296 - WIRE, WINCH EARTH, NO.2 82666A - HOLDER, CONNECTOR NO.2 82666B - HOLDER, CONNECTOR NO.3 82666C - HOLDER, CONNECTOR NO.4 82815A - COVER, WIRING HARNESS PROTECTOR 82817 - PROTECTOR, WIRING HARNESS, NO.1 82821A - COVER, CONNECTOR 82821A - COVER, CONNECTOR 82823C - CAP, TERMINAL, NO.4 82823P - CAP, TERMINAL, NO.6 82824K - CONNECTOR, WIRING HARNESS 82930 - CONDENSER ASSY, WIRING HARNESS, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
