TOYOTA TOWN MASTERACE V WG TR11V-MNZW / BODY / REAR FLOOR PANEL REAR FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR FLOOR PANEL REAR FLOOR MEMBER

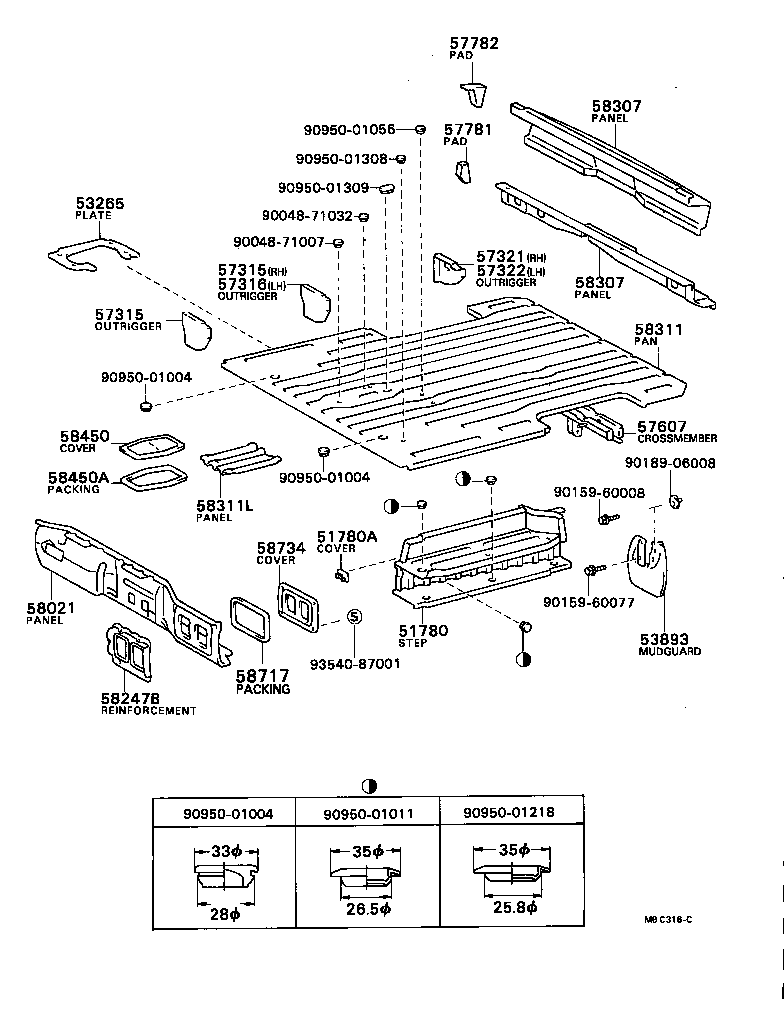

ILLUST NO. 1 OF 2(8101- )V4D ; (8101- )TR15

TOWN MASTERACE V WG | REAR FLOOR PANEL REAR FLOOR MEMBER 51780 - STEP ASSY, FRONT, LH 51780A - COVER, STEP LAMP HOLE 53265 - PLATE, BATTERY CARRIER MOUNTING, NO.2 53893 - MUDGUARD, REAR 57315 - OUTRIGGER, NO.3 RH 57315 - OUTRIGGER, NO.3 RH 57316 - OUTRIGGER, NO.3 LH 57321 - OUTRIGGER, NO.4 RH 57322 - OUTRIGGER, NO.4 LH 57607 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1 57781 - PAD, DUST PROOF REAR FLOOR, NO.1 57782 - PAD, DUST PROOF REAR FLOOR, NO.2 58021 - PANEL SUB-ASSY, HEADER 58247B - REINFORCEMENT, HEADER PANEL 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58311L - PANEL, HEAT PROOF 58450 - COVER ASSY, BATTERY SERVICE HOLE 58450A - PACKING, BATTERY SERVICE HOLE COVER 58717 - PACKING, COOLER AIR INLET COVER 58734 - COVER, COOLER AIR INLET ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
