TOYOTA CARINA FR SA60-AEPES / TOOL-ENGINE-FUEL / MANIFOLD AIR INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

MANIFOLD AIR INJECTION SYSTEM

(8109- )1SU

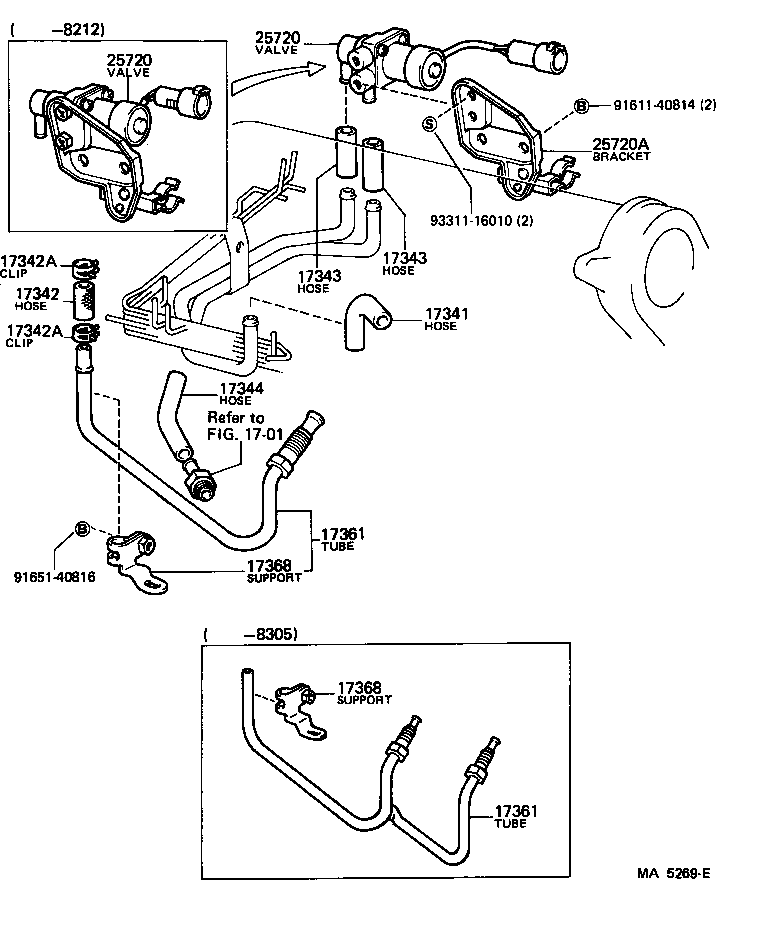

 CARINA FR |  MANIFOLD AIR INJECTION SYSTEM ** Refer Fig 17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM) 17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM) 17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2) 17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM) 17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM) 17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM) 17361 - TUBE, AIR 17361 - TUBE, AIR 17368 - SUPPORT, AIR TUBE 17368 - SUPPORT, AIR TUBE 25720 - VALVE ASSY, ELECTRIC AIR CONTROL 25720 - VALVE ASSY, ELECTRIC AIR CONTROL 25720A - BRACKET, ELECTRIC AIR CONTROL VALVE  ** Std Part  ** Std Part  ** Std Part
