TOYOTA CHASER MX61-DTPGT / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

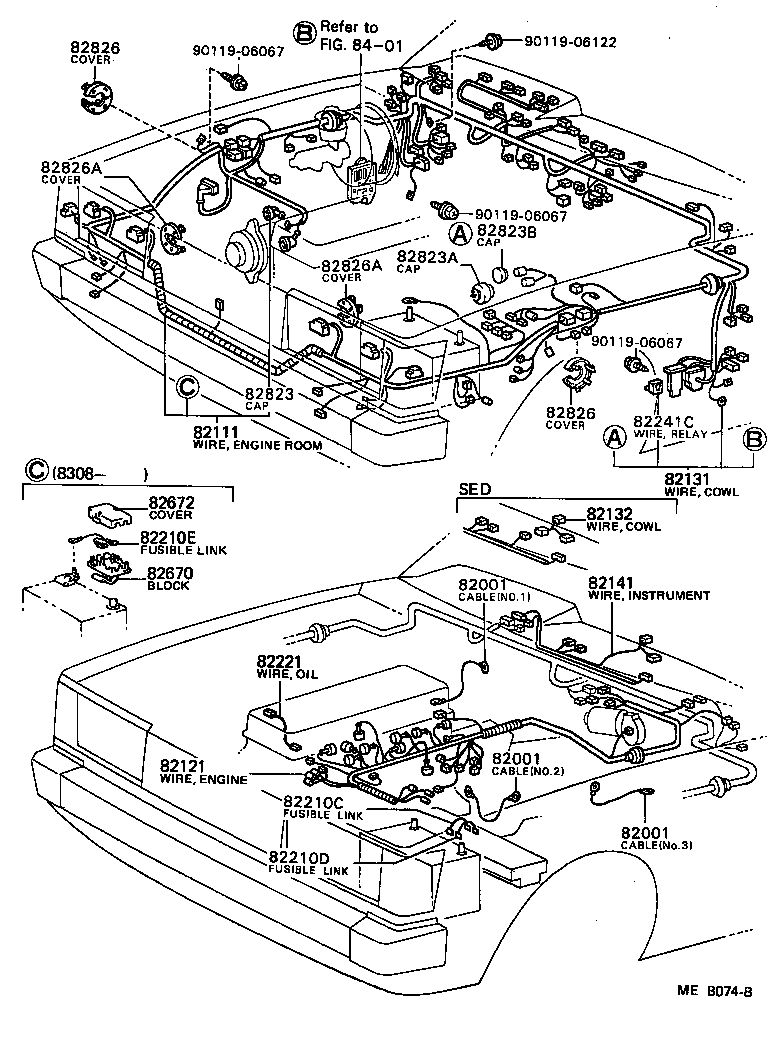

ILLUST NO. 1 OF 5(8110- )MX61

 CHASER |  WIRING CLAMP 82001 - CABLE, BOND, NO.1 82001 - CABLE, BOND, NO.1 82001 - CABLE, BOND, NO.1 82111 - WIRE, ENGINE ROOM MAIN 82121 - WIRE, ENGINE 82131 - WIRE, COWL 82132 - WIRE, COWL, NO.2 82141 - WIRE, INSTRUMENT PANEL 82210C - FUSIBLE LINK 82210D - FUSIBLE LINK 82210E - FUSIBLE LINK 82221 - WIRE, OIL PRESSURE SWITCH 82241C - WIRE, RELAY 82670 - BLOCK ASSY, JUNCTION, NO.1 82672 - COVER, JUNKTION BLOCK 82823 - CAP, TERMINAL, NO.1 82823A - CAP, TERMINAL, NO.2 82823B - CAP, TERMINAL, NO.3 82826 - COVER, WIRING HARNESS HOLE 82826 - COVER, WIRING HARNESS HOLE 82826A - COVER, WIRING HARNESS HOLE, NO.2 82826A - COVER, WIRING HARNESS HOLE, NO.2 ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part
