TOYOTA CROWN LS120G-SWPGT / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

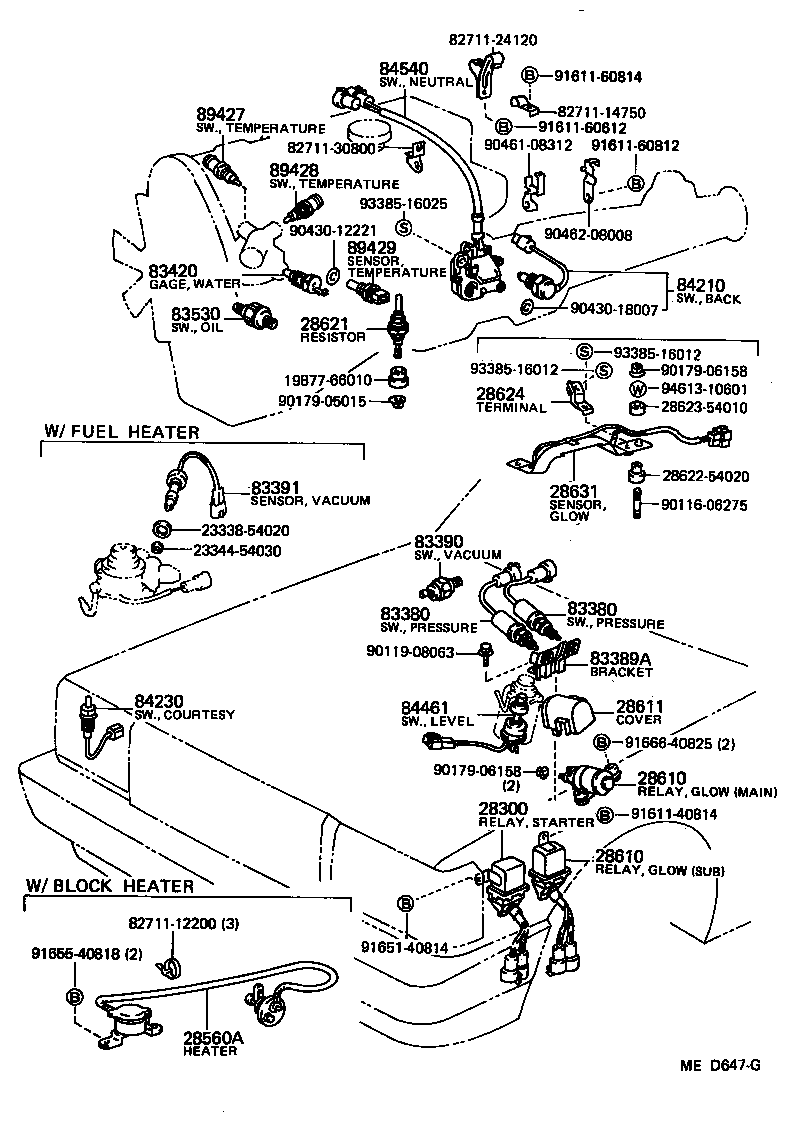

ILLUST NO. 1 OF 9(8308- )LS12#

CROWN | SWITCH RELAY COMPUTER ** Std Part ** Std Part ** Std Part 28300 - RELAY ASSY, STARTER 28560A - BLOCK, HEATER 28610 - RELAY ASSY, GLOW PLUG 28610 - RELAY ASSY, GLOW PLUG 28611 - COVER, GLOW PLUG RELAY 28621 - RESISTOR, GLOW PLUG ** Std Part ** Std Part 28624 - PLATE, CURRENT SENSOR 28631 - SENSOR, GLOW PLUG CURRENT ** Std Part ** Std Part ** Std Part ** Std Part 83380 - SWITCH ASSY, PRESURE 83380 - SWITCH ASSY, PRESURE 83389A - BRACKET, PRESSURE SWITCH 83390 - SWITCH ASSY, VACUUM WARNING 83391 - SWITCH, VACUUM 83420 - GAGE ASSY, WATER TEMPERATURE SENDER 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 84210 - SWITCH ASSY, BACK-UP LAMP 84230 - SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM) 84461 - SWITCH, LEVEL WARNING 84540 - SWITCH ASSY, NEUTRAL START 89427 - SWITCH, TEMPERATURE DETECT 89428 - SWITCH, TEMPERATURE DETECT, NO.2 89429 - SENSOR, OIL TEMPERATURE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
