TOYOTA MARK 2 MX60-XEHDP / TOOL-ENGINE-FUEL / LPG OR CNG REGULATOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

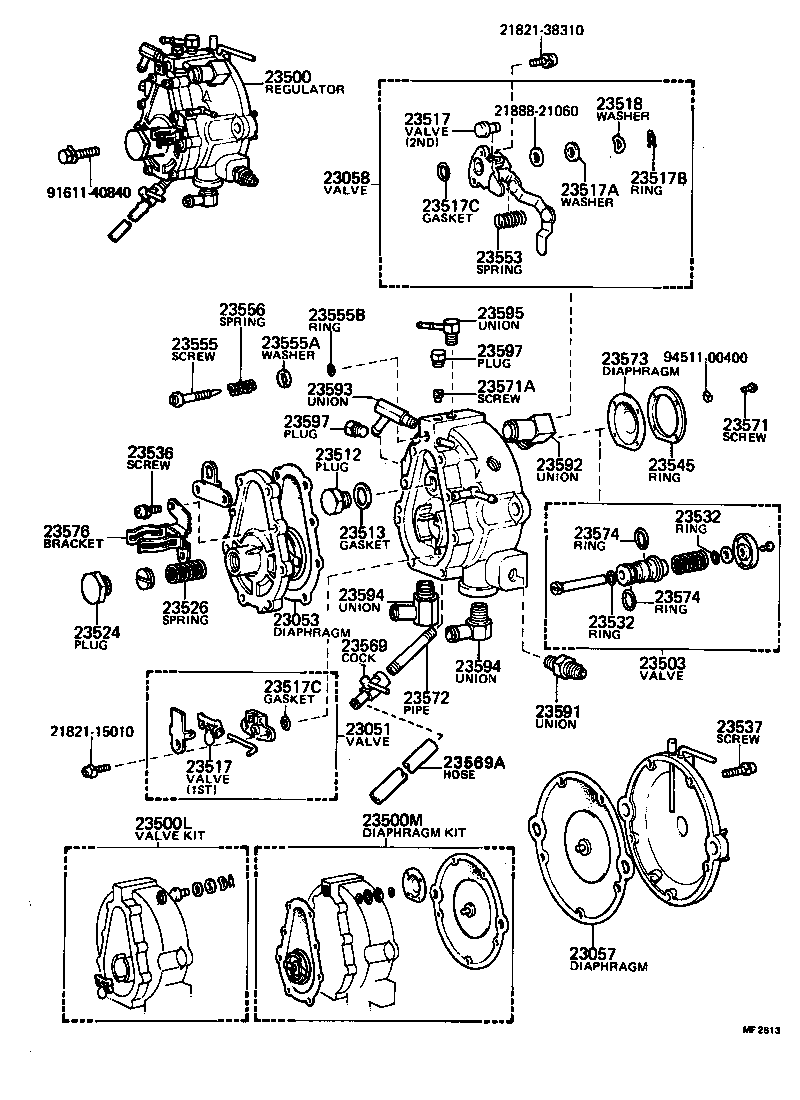

LPG OR CNG REGULATOR

(8011-8308)MU

MARK 2 | LPG OR CNG REGULATOR ** Std Part ** Std Part ** Std Part 23051 - VALVE SUB-ASSY, 1ST 23053 - DIAPHRAGM SUB-ASSY, 1ST 23057 - DIAPHRAGM SUB-ASSY, 2ND REGULATOR 23058 - VALVE SUB-ASSY, 2ND 23500 - REGULATOR ASSY, LPG(CNG) 23500L - VALVE KIT, LPG REGULATOR 23500M - DIAPHRAGM KIT, LPG REGULATOR, W/O VALVE 23503 - VALVE SUB-ASSY 23512 - PLUG, WATER CORE 23513 - GASKET, WATER CORE 23517 - VALVE, ELASTIC FACE 23517 - VALVE, ELASTIC FACE 23517A - WASHER(FOR ELASTIC FACE VALVE SET) 23517B - RING, SNAP(FOR ELASTIC FACE VALVE SET) 23517C - GASKET(FOR ELASTIC FACE VALVE) 23517C - GASKET(FOR ELASTIC FACE VALVE) 23518 - WASHER, WAVE(FOR ELASTIC FACE VALVE SET) 23524 - PLUG, 1ST REGULATOR COVER 23526 - SPRING, 1ST REGULATOR 23532 - RING, O, NO.2(FOR BULB) 23532 - RING, O, NO.2(FOR BULB) 23536 - SCREW(FOR 1ST REGULATOR COVER SET) 23537 - SCREW(FOR 2ND REGULATOR COVER SET) 23545 - RING, VACUUM LOCK DIAPHRAGM 23553 - SPRING, 2ND REGULATOR 23555 - SCREW, IDLE ADJUST 23555A - WASHER, IDLE ADJUST SCREW 23555B - RING, O(FOR IDLE ADJUST SCREW) 23556 - SPRING, IDLE ADJUST SCREW 23569 - COCK, DRAIN 23569A - HOSE(FOR DRAIN COCK) 23571 - SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET) 23571A - SCREW 23572 - PIPE, DRAIN 23573 - DIAPHRAGM 23574 - RING, O, NO.1(FOR BULB) 23574 - RING, O, NO.1(FOR BULB) 23576 - BRACKET 23591 - UNION, NO.1, FUEL 23592 - UNION, NO.2, FUEL HOSE 23593 - UNION, NO.3 23594 - UNION, NO.4, WATER HOSE 23594 - UNION, NO.4, WATER HOSE 23595 - UNION, NO.5 23597 - PLUG, LPG REGULATOR BODY 23597 - PLUG, LPG REGULATOR BODY ** Std Part ** Std Part
