TOYOTA SOARER MZ11-HCMQF / ELECTRICAL / HEATING AIR CONDITIONING VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

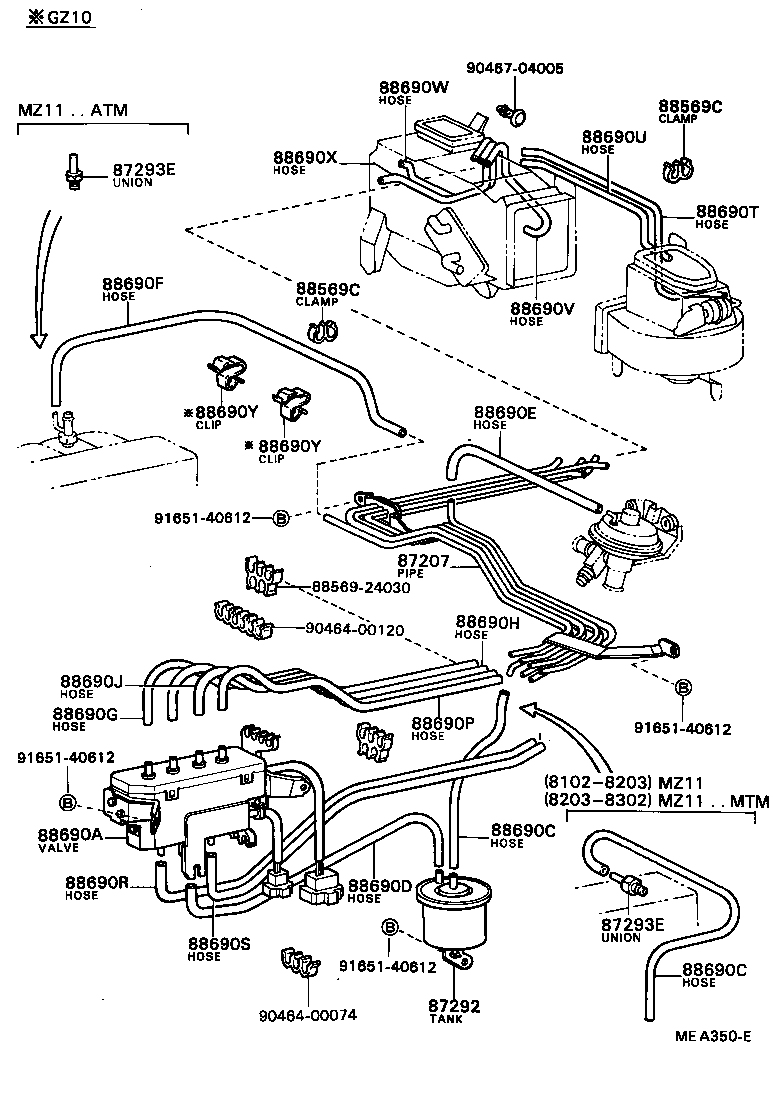

HEATING AIR CONDITIONING VACUUM PIPING

ILLUST NO. 1 OF 2(8102-8302)GT,VX

SOARER | HEATING AIR CONDITIONING VACUUM PIPING 87207 - PIPE SUB-ASSY, VACUUM 87292 - TANK, VACUUM 87293E - UNION, HOSE 87293E - UNION, HOSE ** Std Part 88569C - CLAMP (FOR HEATER OR AIR CONDITIONER CONTROL), NO.1 88569C - CLAMP (FOR HEATER OR AIR CONDITIONER CONTROL), NO.1 88690A - VALVE ASSY, COMBINATION 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) 88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER) 88690E - HOSE, VACUUM, NO.3 (FOR HEATER OR AIR CONDITIONER) 88690F - HOSE, VACUUM, NO.4 (FOR HEATER OR AIR CONDITIONER) 88690G - HOSE, VACUUM, NO.5 (FOR HEATER OR AIR CONDITIONER) 88690H - HOSE, VACUUM, NO.6 (FOR HEATER OR AIR CONDITIONER) 88690J - HOSE, VACUUM, NO.7 (FOR HEATER OR AIR CONDITIONER) 88690P - HOSE, VACUUM, NO.8 (FOR HEATER OR AIR CONDITIONER) 88690R - HOSE, VACUUM, NO.9 (FOR HEATER OR AIR CONDITIONER) 88690S - HOSE, VACUUM, NO.10 (FOR HEATER OR AIR CONDITIONER) 88690T - HOSE, VACUUM, NO.11 (FOR HEATER OR AIR CONDITIONER) 88690U - HOSE, VACUUM, NO.12 (FOR HEATER OR AIR CONDITIONER) 88690V - HOSE, VACUUM, NO.13 (FOR HEATER OR AIR CONDITIONER) 88690W - HOSE, VACUUM, NO.14 (FOR HEATER OR AIR CONDITIONER) 88690X - HOSE, VACUUM, NO.15 (FOR HEATER OR AIR CONDITIONER) 88690Y - CLIP (FOR HEATER OR AIR CONDITIONER CONTROL) 88690Y - CLIP (FOR HEATER OR AIR CONDITIONER CONTROL) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
