TOYOTA CARINA FF AT175-CEPFK / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR PAN LOWER BACK PANEL

(8808- )AT175

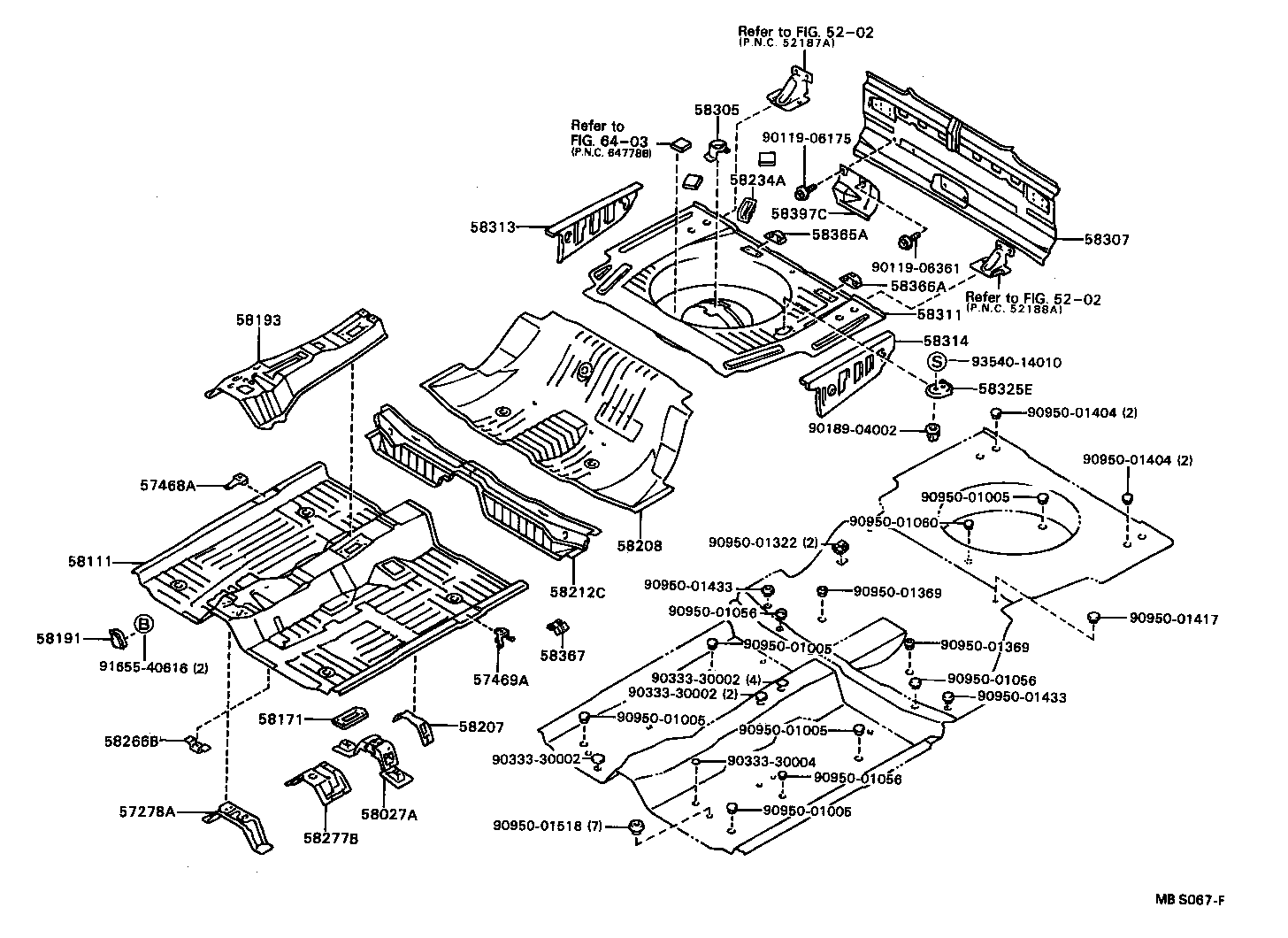

CARINA FF | FLOOR PAN LOWER BACK PANEL ** Refer Fig ** Refer Fig 57278A - BRACKET, CATALYTIC CONVERTER SUPPORT 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR 58111 - PAN, FRONT FLOOR 58171 - REINFORCEMENT, PARKING BRAKE BASE 58191 - FOOTREST, FRONT FLOOR 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING 58207 - BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1 58208 - PAN, CENTER FLOOR 58212C - PAN, CENTER FLOOR, FRONT 58234A - BRACKET, EXHAUST PIPE MOUNTING, INNER 58266B - BRACKET, FUEL TUBE CLAMP 58277B - REINFORCEMENT, DRIVE SHAFT CENTER SUPPORT 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58313 - PANEL, REAR FLOOR SIDE, RH 58314 - PANEL, REAR FLOOR SIDE, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58365A - BRACKET, FUEL TANK SUPPORT, RH 58366A - BRACKET, FUEL TANK SUPPORT, LH 58367 - BRACKET, FUEL TUBE CLAMP 58397C - COVER, BODY LOWER BACK, RH ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
