TOYOTA CARINA FF CT170-CEPES / POWERTRAIN-CHASSIS / FRONT AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

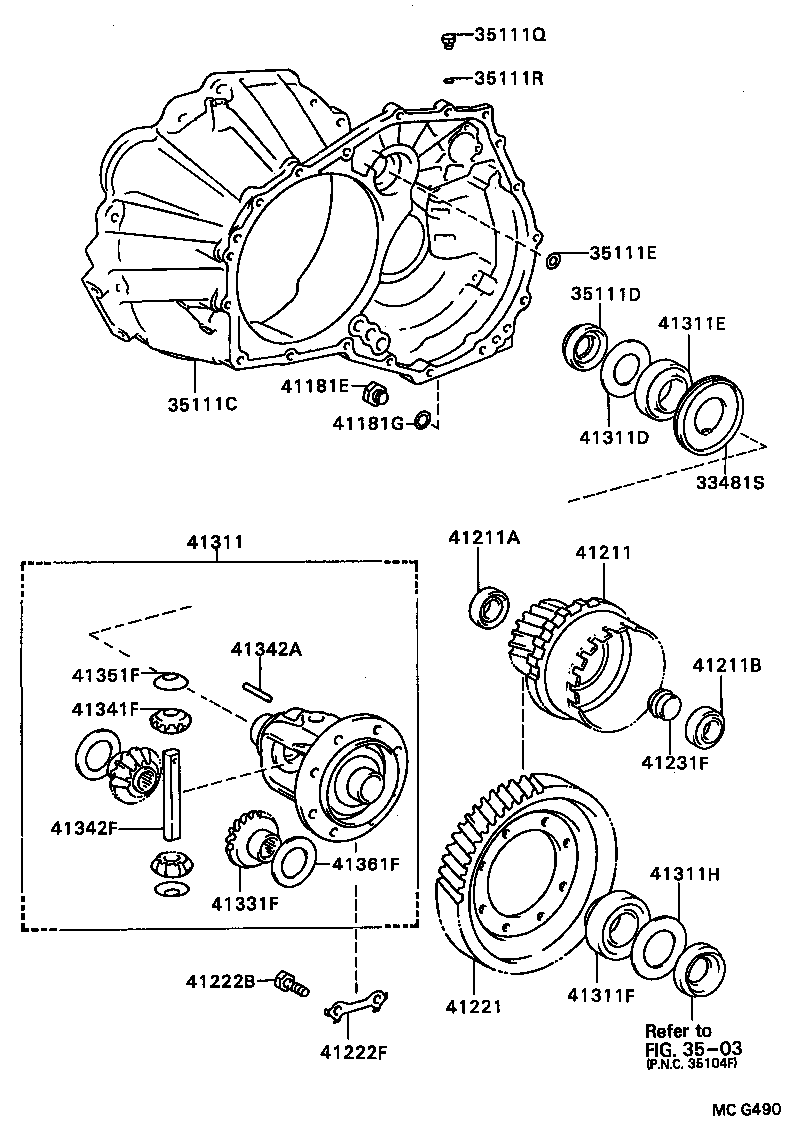

FRONT AXLE HOUSING DIFFERENTIAL

A241L (8805- )CT17#..4FC

 CARINA FF |  FRONT AXLE HOUSING DIFFERENTIAL 33481S - GEAR, SPEEDOMETER DRIVE (ATM) ** Refer Fig 35111C - HOUSING, TRANSAXLE 35111D - SEAL, OIL (FOR TRANSAXLE HOUSING) 35111E - WASHER, SEAL (FOR FRONT TRANSAXLE HOUSING) 35111Q - PLUG, NO.2 (FOR TRANSAXLE HOUSING) 35111R - RING, O (FOR TRANSAXLE HOUSING PLUG NO.2) 41181E - PLUG (FOR FRONT DIFFERENTIAL DRAIN) 41181G - GASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG) 41211 - PINION, DIFFERENTIAL DRIVE 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) 41221 - GEAR, FRONT DIFFERENTIAL RING 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING 41311 - CASE, FRONT DIFFERENTIAL 41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT) 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT) 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR) 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) 41331F - GEAR, FRONT DIFFERENTIAL SIDE 41341F - PINION, FRONT DIFFERENTIAL 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
