TOYOTA DYNA TOYOACE BU67D-PDST / POWERTRAIN-CHASSIS / POWER TAKE OFF OIL PUMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

POWER TAKE OFF OIL PUMP

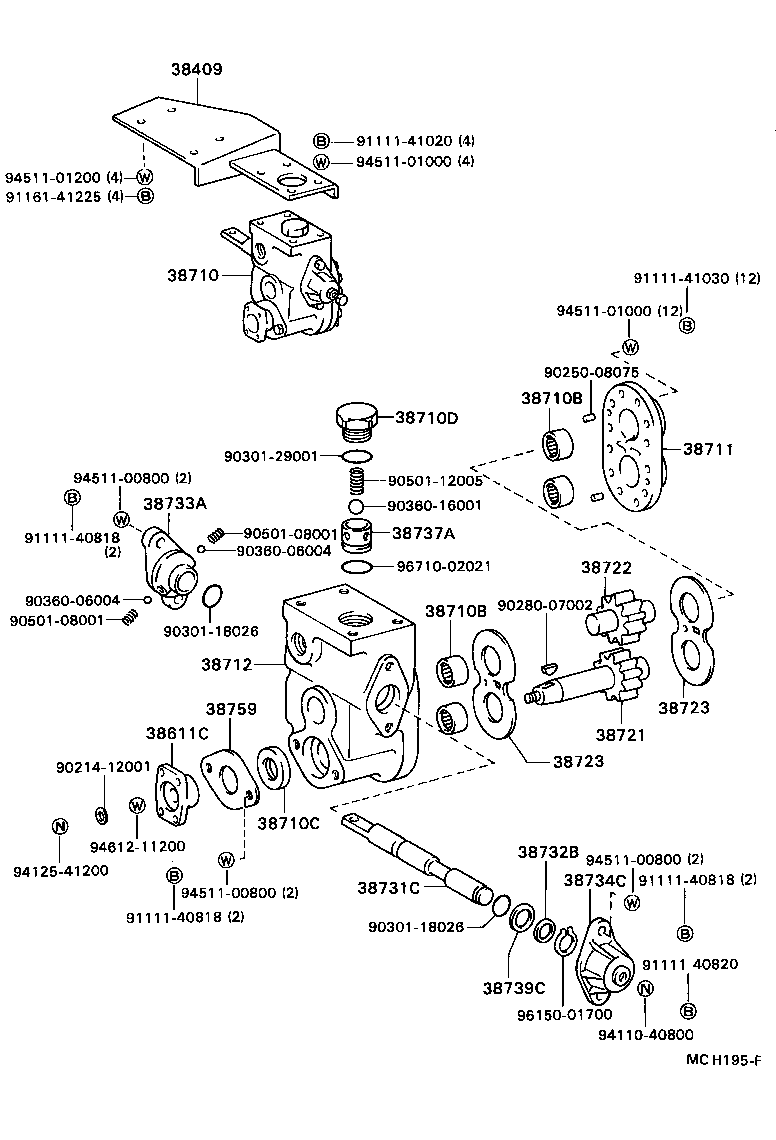

ILLUST NO. 1 OF 2(8808- )BU67..4FC..CBU

DYNA TOYOACE | POWER TAKE OFF OIL PUMP 38409 - BRACKET SUB-ASSY, POWER OIL PUMP 38611C - FLANGE, UNIVERSAL JOINT (FOR OIL PUMP) 38710 - PUMP ASSY, OIL 38710B - BEARING, NEEDLE ROLLER (FOR OIL PUMP) 38710B - BEARING, NEEDLE ROLLER (FOR OIL PUMP) 38710C - SEAL, OIL (FOR OIL PUMP) 38710D - PLUG (FOR OIL PUMP) 38711 - COVER, OIL PUMP 38712 - BODY, OIL PUMP 38721 - GEAR, OIL PUMP DRIVE 38722 - GEAR, OIL PUMP COUNTER 38723 - PLATE, OIL PUMP GEAR SIDE 38723 - PLATE, OIL PUMP GEAR SIDE 38731C - VALVE, OIL PUMP PLUNGER 38732B - RING, OIL PUMP PLUNGER 38733A - RETAINER, OIL PUMP PLUNGER 38734C - COVER, OIL PUMP PLUNGER 38737A - SEAT, CHECK VALVE 38739C - RETAINER, O RING 38759 - COVER, SEAL (FOR OIL PUMP BODY) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
