TOYOTA MR2 SW20-ACPQF / POWERTRAIN-CHASSIS / REAR AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR AXLE HOUSING DIFFERENTIAL

A241E (8912-9908)4FC

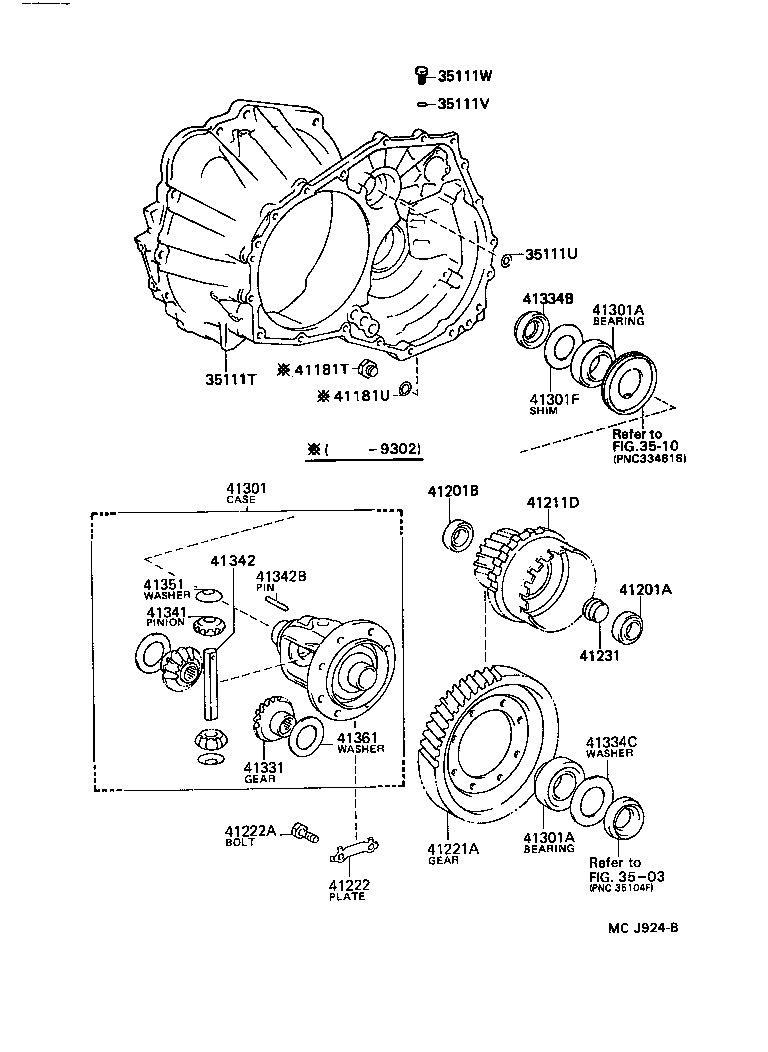

MR2 | REAR AXLE HOUSING DIFFERENTIAL ** Refer Fig ** Refer Fig 35111T - HOUSING, TRANSAXLE 35111U - WASHER, SEAL (FOR REAR TRANSAXLE HOUSING) 35111V - RING, O (FOR TRANSAXLE HOUSING PLUG) 35111W - PLUG (FOR TRANSAXLE HOUSING) 41181T - PLUG (FOR REAR DIFFERENTIAL DRAIN) 41181U - GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG) 41201A - BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION REAR) 41201B - BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION FRONT) 41211D - PINION, DIFFERENTIAL DRIVE 41221A - GEAR, REAR DIFFERENTIAL RING 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) 41301F - SHIM(FOR REAR DIFFERENTIAL CASE) 41331 - GEAR, REAR DIFFERENTIAL SIDE 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41341 - PINION, REAR DIFFERENTIAL 41342 - SHAFT, REAR DIFFERENTIAL PINION 41342B - PIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT) 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
