TOYOTA LAND CRUISER VAN FJ62V-MRC / POWERTRAIN-CHASSIS / TRANSFER GEAR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

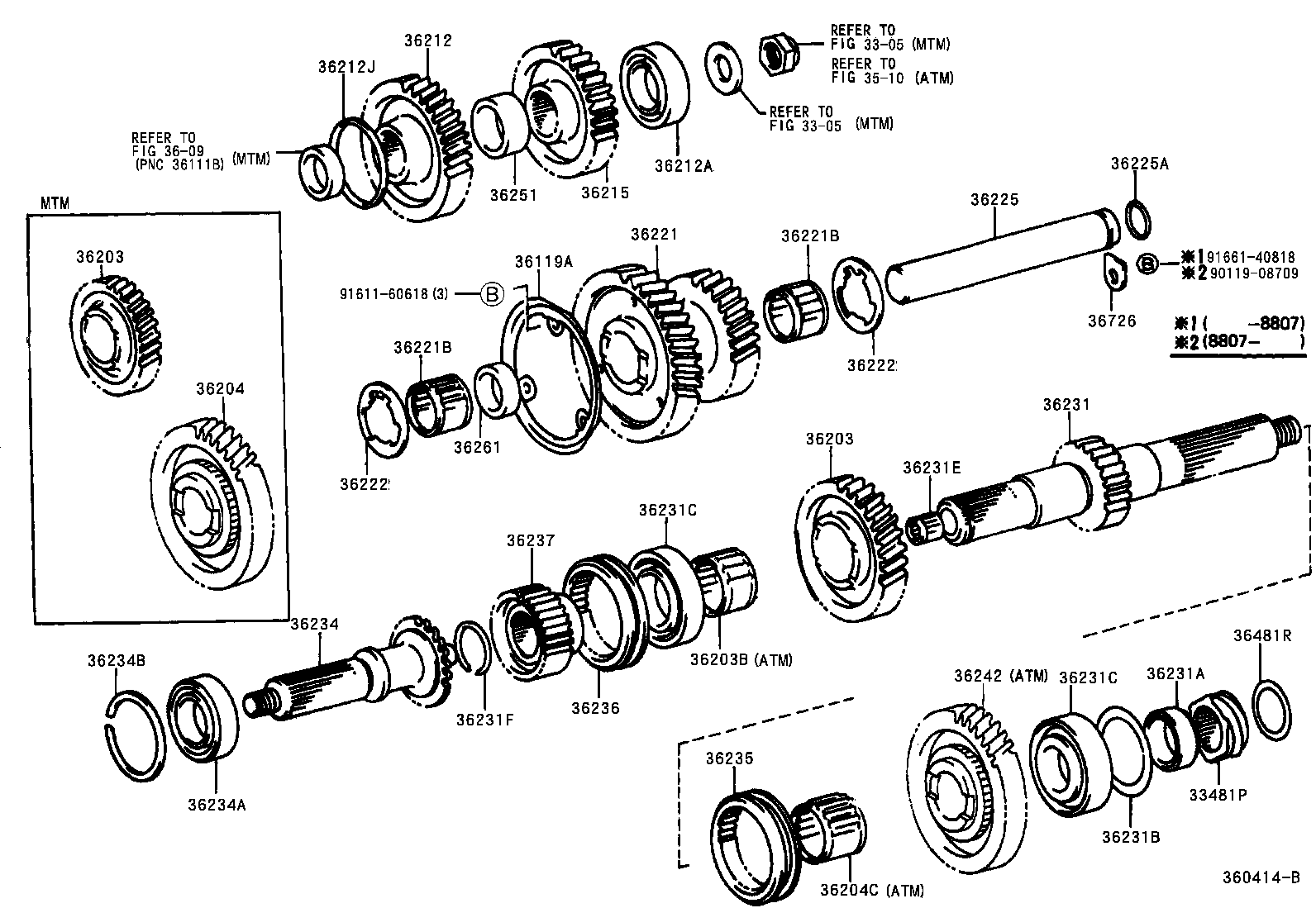

TRANSFER GEAR

(8708- )

 LAND CRUISER VAN |  TRANSFER GEAR ** Refer Fig ** Refer Fig 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) ** Refer Fig ** Refer Fig 36119A - RECEIVER, TRANSFER OIL (FOR TRANSFER IDLER GEAR) 36203 - GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT 36203 - GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT 36203B - BEARING (FOR TRANSFER HIGH SPEED OUTPUT GEAR) 36204 - GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT 36204C - BEARING, NEEDLE ROLLER (FOR TRANSFER LOW GEAR) 36212 - GEAR, TRANSFER INPUT 36212A - BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR) 36212J - RING, O (FOR TRANSFER INPUT GEAR) 36215 - GEAR, POWER TAKE-OFF DRIVE 36221 - GEAR, TRANSFER IDLER 36221B - BEARING (FOR TRANSFER IDLER GEAR) 36221B - BEARING (FOR TRANSFER IDLER GEAR) 36222 - WASHER, TRANSFER IDLER GEAR SIDE THRUST 36222 - WASHER, TRANSFER IDLER GEAR SIDE THRUST 36225 - SHAFT, TRANSFER IDLER GEAR 36225A - RING, O (FOR TRANSFER IDLER SHAFT) 36231 - SHAFT, TRANSFER OUTPUT, REAR 36231A - SPACER (FOR TRANSFER OUTPUT SHAFT) 36231B - SHIM (FOR TRANSFER OUTPUT SHAFT) 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT) 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) 36234 - SHAFT, TRANSFER OUTPUT, FRONT 36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT) 36234B - RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING) 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH 36236 - SLEEVE, FRONT DRIVE CLUTCH 36237 - HUB, TRANSFER CLUTCH 36242 - GEAR, TRANSFER LOW 36251 - SPACER, TRANSFER INPUT SHAFT 36261 - SPACER, TRANSFER IDLER GEAR 36481R - WASHER, PLATE (FOR SPEEDMETER DRIVE GEAR) 36726 - PLATE, LOCK (FOR TRANSFER GEAR)  ** Std Part  ** Std Part  ** Std Part
