TOYOTA LAND CRUISER VAN FJ62V-MRC / TOOL-ENGINE-FUEL / CYLINDER BLOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

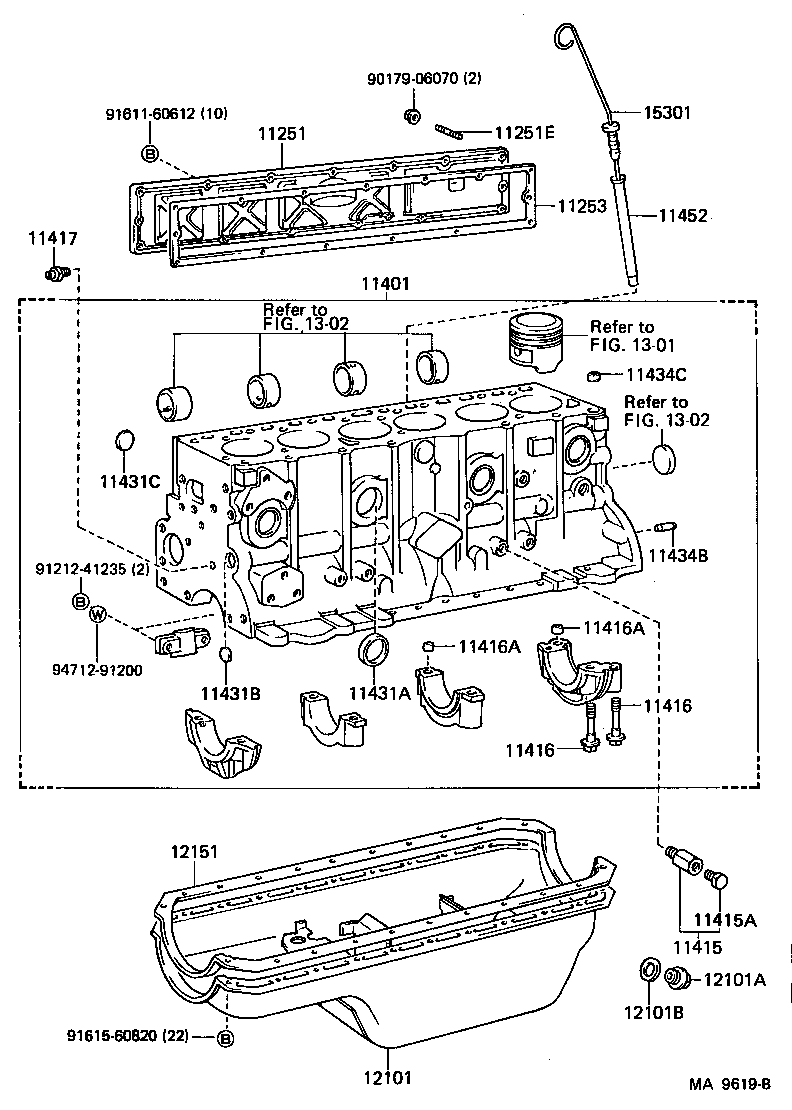

CYLINDER BLOCK

(8708- )3F..CBU

 LAND CRUISER VAN |  CYLINDER BLOCK 11251 - COVER, VALVE PUSH ROD 11251E - BOLT, STUD(FOR VALVE PUSH ROD COVER) 11253 - GASKET, VALVE PUSH ROD COVER 11401 - BLOCK SUB-ASSY, CYLINDER 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) 11417 - NOZZLE, OIL 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) 11452 - GUIDE, OIL LEVEL GAGE 12101 - PAN SUB-ASSY, OIL 12101A - PLUG(FOR OIL PAN DRAIN) 12101B - GASKET(FOR OIL PAN DRAIN PLUG) 12151 - GASKET, OIL PAN ** Refer Fig ** Refer Fig ** Refer Fig 15301 - GAGE SUB-ASSY, OIL LEVEL  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
