TOYOTA COASTER HDB31-MGZGRX / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

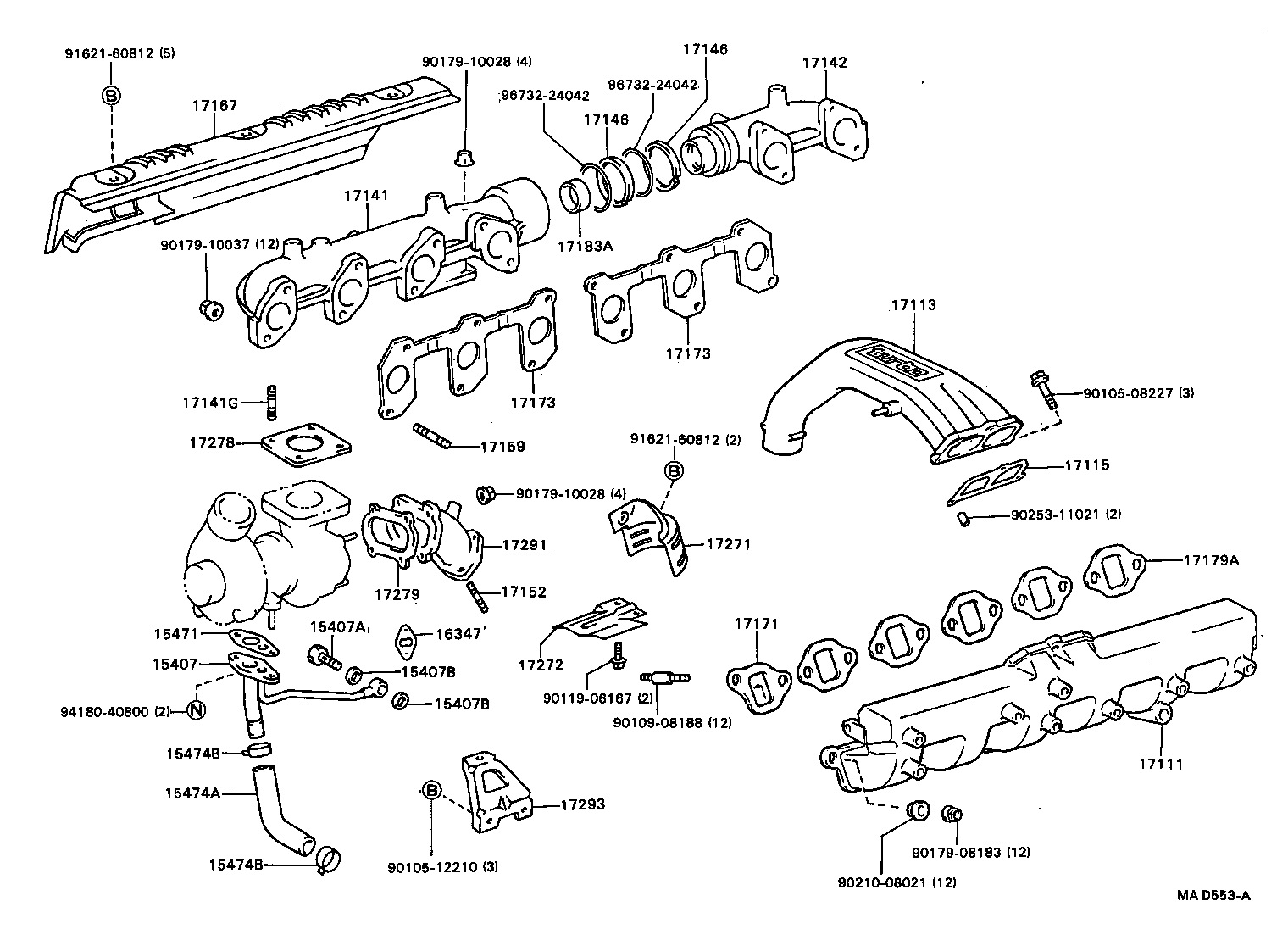

MANIFOLD

ILLUST NO. 1 OF 2(9001- )1HDT

 COASTER |  MANIFOLD 15407 - PIPE SUB-ASSY, TURBO OIL INLET 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15471 - GASKET, TURBO OIL INLET 15474A - HOSE, TURBO OIL OUTLET 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) 16347 - GASKET, WATER BY-PASS 17111 - MANIFOLD, INTAKE 17113 - PIPE, INTAKE 17115 - GASKET, INTAKE MANIFOLD HOLE COVER 17141 - MANIFOLD, EXHAUST 17141G - BOLT, STUD(FOR TURBOCHARGER) 17142 - CASE, EXHAUST MANIFOLD, NO.2 17146 - RING, EXHAUST MANIFOLD 17146 - RING, EXHAUST MANIFOLD 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17179A - GASKET, INTAKE MANIFOLD, NO.2 17183A - COLLAR, MANIFOLD 17271 - INSULATOR, TURBO, NO.1 17272 - INSULATOR, TURBO, NO.2 17278 - GASKET, TURBO TO EXHAUST MANIFOLD 17279 - GASKET, TURBINE OUTLET ELBOW 17291 - ELBOW, TURBINE OUTLET 17293 - STAY, TURBOCHARGER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
