TOYOTA HILUX YN86-TRPSE / ELECTRICAL / METER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

METER

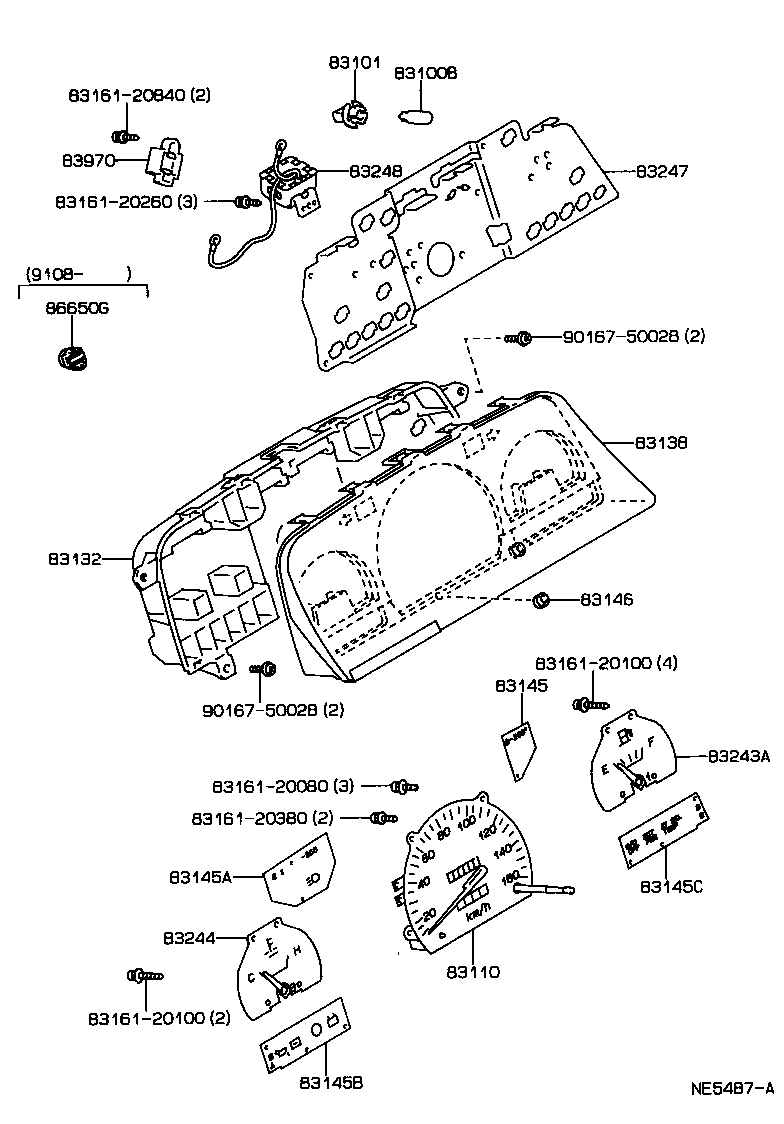

コンビネ-シヨン メ-タ, ナシ(タコメ-タ) ILLUST NO. 1 OF 3(8809- )

 HILUX |  METER 83100B - BULB, COMBINATION METER, NO.1 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB 83110 - SPEEDOMETER ASSY 83132 - CASE, COMBINATION METER 83138 - GLASS, SPEEDOMETER 83145 - LENS, METER, NO.1 83145A - LENS, METER, NO.2 83145B - LENS, METER, NO.3 83145C - LENS, METER, NO.4 83146 - GROMMET, METER GLASS  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part 83243A - GAUGE SUB-ASSY, FUEL RECEIVER 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER 83247 - PLATE, METER CIRCUIT 83248 - CHIME, SPEED WARNING 83970 - BUZZER ASSY, REVERSE WARNING 86650G - BUZZER ASSY  ** Std Part  ** Std Part
