TOYOTA SOARER JZZ31-ACPVF / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

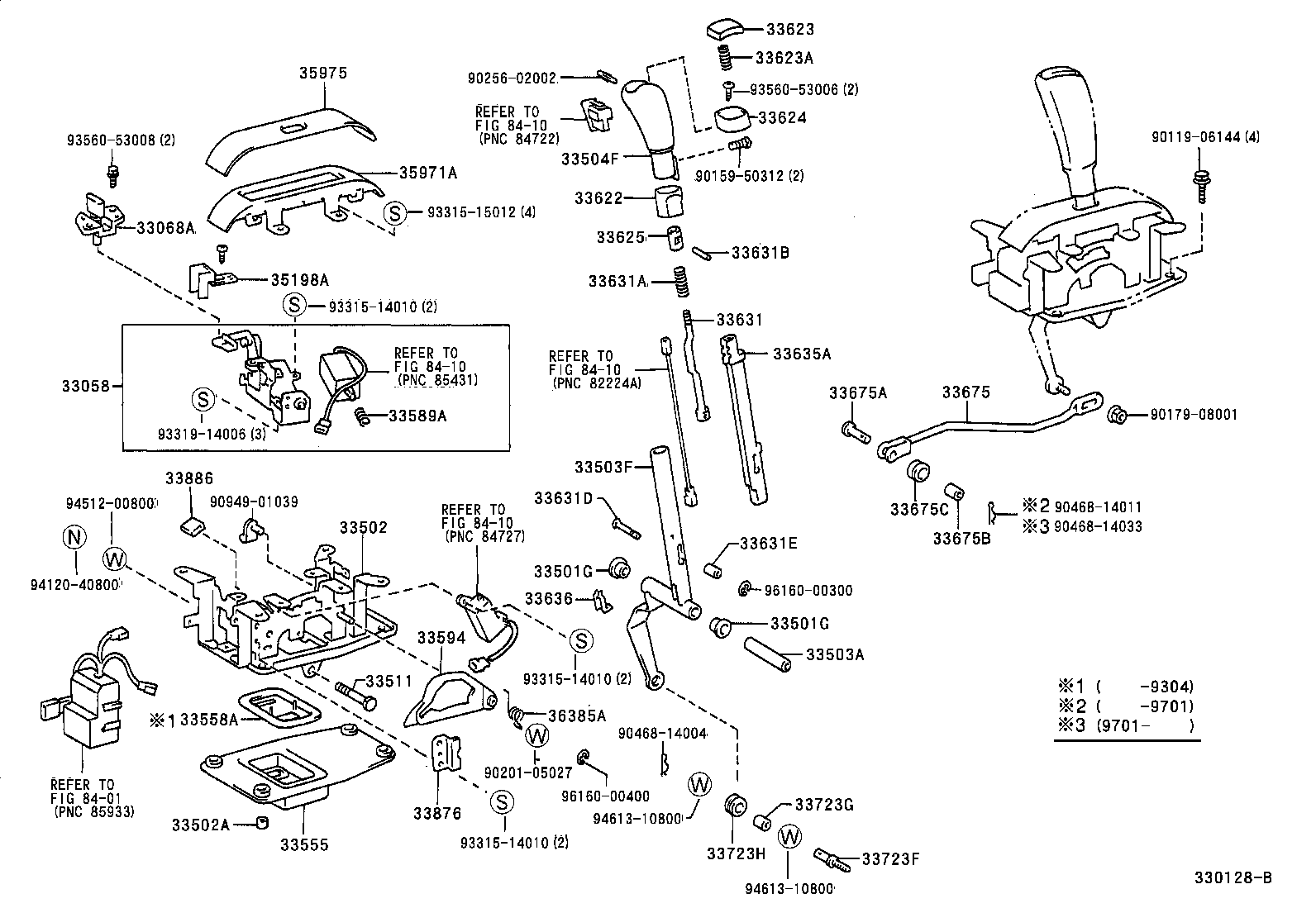

SHIFT LEVER RETAINER

A340E,A341E (9105- )ATM

 SOARER |  SHIFT LEVER RETAINER 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID 33068A - BUTTON SUB-ASSY, SHIFT LOCK RELEASE(FOR FLOOR SHIFT) 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33502 - PLATE SUB-ASSY, SHIFT LEVER 33502A - COLLAR (FOR FLOOR SHIFT SETTING) 33503A - COLLAR(FOR SHIFT LEVER) 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) 33504F - KNOB SUB-ASSY, SHIFT LEVER 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) 33555 - BOOT, SHIFT LEVER 33558A - SEAL, SHIFT LEVER BOOT DUST, NO.1 33589A - SPRING, COMPRESSION (FOR SHIFT LOCK SOLENOID LINK) 33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT) 33622 - COVER, SHIFT LEVER KNOB, NO.1 33623 - BUTTON, SHIFT LEVER KNOB 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) 33624 - HOLDER, KNOB COVER 33625 - SLEEVE, SHIFT LEVER KNOB 33631 - ROD, DETENT 33631A - SPRING, COMPRESSION (FOR DETENT ROD) 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) 33631D - PIN, GROOVED (FOR DETENT ROD) 33631E - ROLLER (FOR DETENT ROD) 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) 33675 - ROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT) 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) 33876 - GUIDE, SHIFT LOCK PLATE 33886 - STOPPER, SHIFT LEVER 35198A - BRACKET, WIRE HARNESS CLAMP, NO.4 35971A - HOUSING, POSITION INDICATOR, UPPER 35975 - COVER, SLIDE (FOR POSITION INDICATOR) 36385A - SPRING, FLOOR SHIFT LEVER TORSION, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
