TOYOTA DYNA TOYOACE BU68DH-MDKTUJ3 / TOOL-ENGINE-FUEL / LPG CARBURETOR FUEL PIPE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

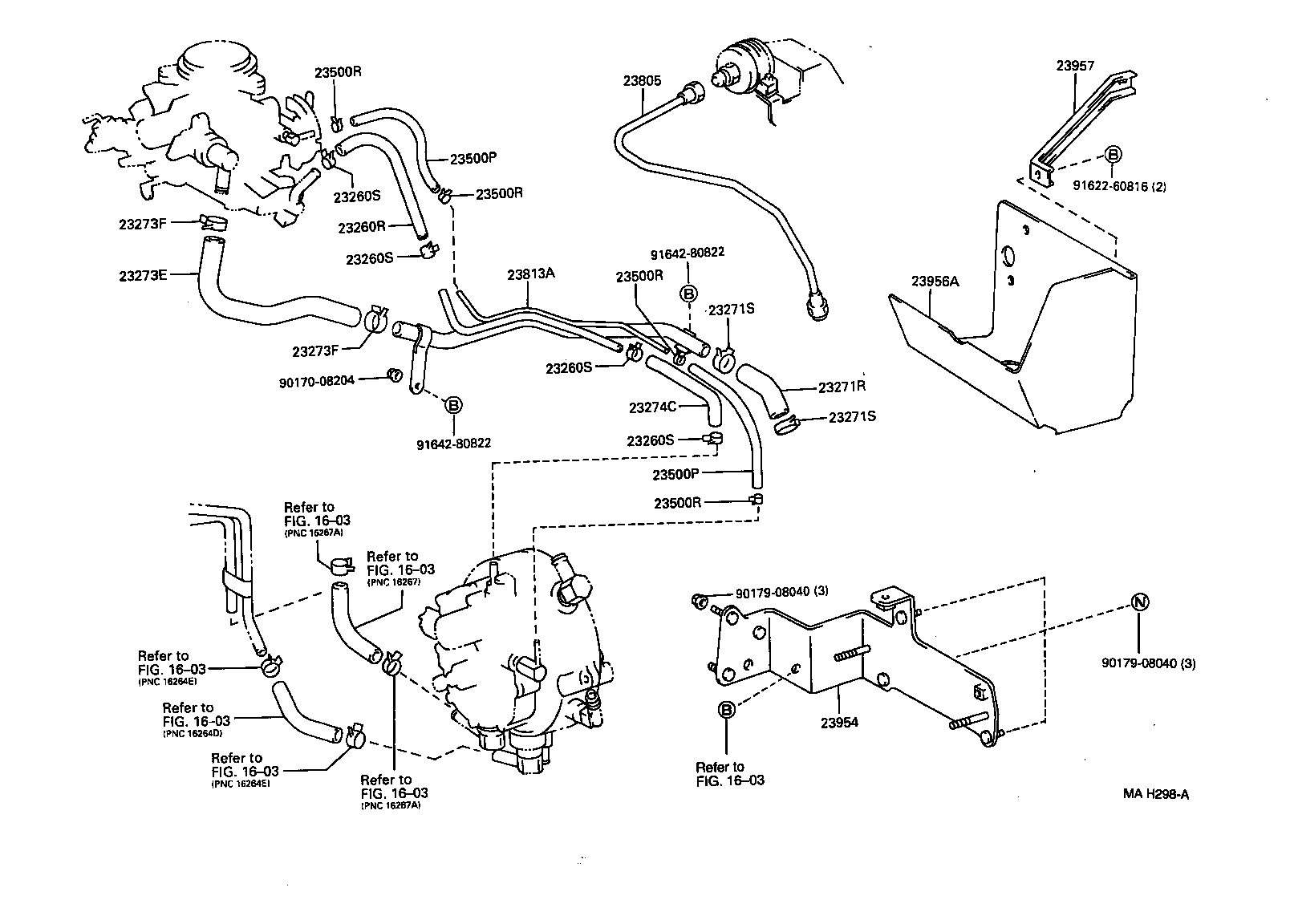

LPG CARBURETOR FUEL PIPE

(9311- )27LPG

 DYNA TOYOACE |  LPG CARBURETOR FUEL PIPE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 23260R - HOSE, LPG INJECTOR 23260S - CLAMP OR CLIP(FOR LPG INJECTOR HOSE) 23260S - CLAMP OR CLIP(FOR LPG INJECTOR HOSE) 23260S - CLAMP OR CLIP(FOR LPG INJECTOR HOSE) 23260S - CLAMP OR CLIP(FOR LPG INJECTOR HOSE) 23271R - HOSE, FUEL, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR) 23271S - CLAMP OR CLIP(FOR FUEL HOSE NO.1) 23271S - CLAMP OR CLIP(FOR FUEL HOSE NO.1) 23273E - HOSE, FUEL, NO.3(FOR LPG REGULATOR TO LPG CARBURETOR) 23273F - CLAMP OR CLIP(FOR FUEL HOSE NO.3) 23273F - CLAMP OR CLIP(FOR FUEL HOSE NO.3) 23274C - HOSE, FUEL, NO.3 23500P - HOSE, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR) 23500P - HOSE, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR) 23500R - CLAMP OR CLIP, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR) 23500R - CLAMP OR CLIP, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR) 23500R - CLAMP OR CLIP, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR) 23500R - CLAMP OR CLIP, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR) 23805 - PIPE SUB-ASSY, LPG REGULATOR 23813A - PIPE, LPG FUEL 23954 - BRACKET, LPG REGULATOR 23956A - COVER, LPG REGULATOR 23957 - STAY, LPG REGULATOR  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
