TOYOTA COASTER HDB51-ZRMQW / POWERTRAIN-CHASSIS / OIL PUMP OIL COOLER PIPE MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

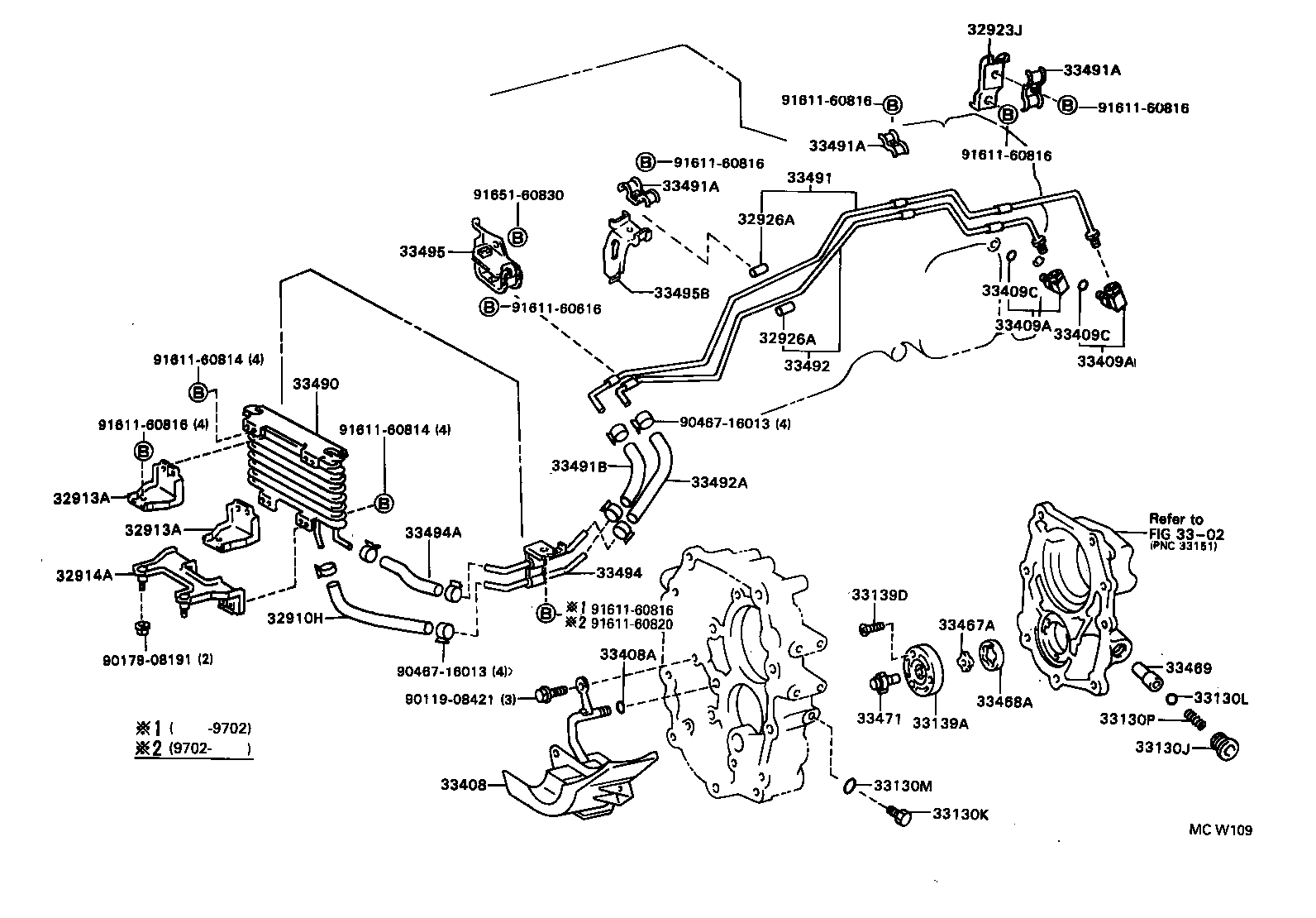

OIL PUMP OIL COOLER PIPE MTM

(9301-9705)HDB5#..5F

 COASTER |  OIL PUMP OIL COOLER PIPE MTM 32910H - HOSE(FOR MANUAL TRANSMISSION OIL COOLER) 32913A - BRACKET, TRANSMISSION OIL COOLER 32913A - BRACKET, TRANSMISSION OIL COOLER 32914A - STAY, MANUAL TRANSMISSION OIL COOLER 32923J - CLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.4 32926A - CUSHION, OIL COOLER TUBE(MTM) 32926A - CUSHION, OIL COOLER TUBE(MTM) ** Refer Fig 33130J - PLUG, NO.1(FOR MANUAL TRANSMISSION OIL PUMP COVER) 33130K - PLUG, NO.2(FOR MANUAL TRANSMISSION OIL PUMP COVER) 33130L - BALL(FOR TRANSMISSION OIL PUMP COVER) 33130M - RING, O, NO.1(FOR MANUAL TRANSMISSION OIL PUMP COVER) 33130P - SPRING, COMPRESSION(FOR TRANSMISSION OIL PUMP COVER) 33139A - COVER, OIL PUMP(FOR MANUAL TRANSMISSION) 33139D - SCREW(FOR TRANSMISSION OIL PUMP COVER) 33408 - STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL 33408A - RING, O (FOR MANUAL TRANSMISSION OIL STRAINER) 33409A - ELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE) 33409A - ELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE) 33409C - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW) 33409C - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW) 33467A - ROTOR, OIL PUMP DRIVE (FOR MANUAL TRANSMISSION) 33468A - ROTOR, OIL PUMP DRIVEN (FOR MANUAL TRANSMISSION) 33469 - SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP) 33471 - SHAFT, MANUAL TRANSMISSION OIL PUMP DRIVE, NO.1 33490 - COOLER ASSY, MANUAL TRANSMISSION OIL 33491 - TUBE, MANUAL TRANSMISSION OIL COOLER, NO.1 33491A - CLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.1 33491A - CLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.1 33491A - CLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.1 33491B - HOSE, NO.1 (FOR MANUAL TRANSMISSION OIL COOLER TUBE) 33492 - TUBE, MANUAL TRANSMISSION OIL COOLER, NO.2 33492A - HOSE, NO.2 (FOR MANUAL TRANSMISSION OIL COOLER TUBE) 33494 - TUBE, MANUAL TRANSMISSION OIL COOLER, NO.3 33494A - HOSE, NO.3 (FOR MANUAL TRANSMISSION OIL COOLER TUBE) 33495 - CLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.2 33495B - CLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.3  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
