TOYOTA CROWN CROWN MAJESTA UZS155-CTPZK / POWERTRAIN-CHASSIS / VANE PUMP RESERVOIR POWER STEERING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

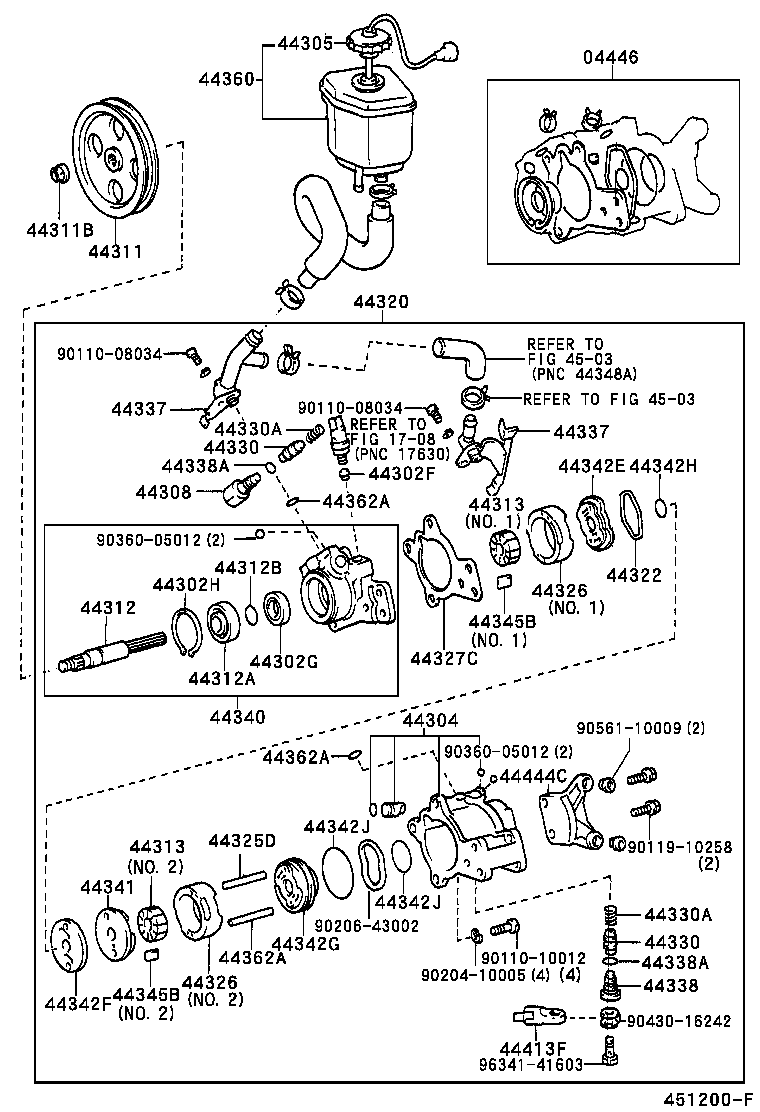

VANE PUMP RESERVOIR POWER STEERING

(9707- )UZS155

CROWN CROWN MAJESTA | VANE PUMP RESERVOIR POWER STEERING 04446 - GASKET KIT, POWER STEERING PUMP ** Refer Fig 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR 44308 - UNION SUB-ASSY, PRESSURE PORT 44311 - PULLEY, VANE PUMP 44311B - NUT(FOR VANE PUMP PULLEY) 44312 - SHAFT, VANE PUMP 44312A - BEARING(FOR VANE PUMP SHAFT) 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) 44313 - ROTOR, VANE PUMP 44313 - ROTOR, VANE PUMP 44320 - PUMP ASSY, VANE 44322 - SEAL, VANE PUMP SIDE PLATE 44325D - PIN, RING(FOR VANE PUMP CAM RING) 44326 - RING, CAM(FOR VANE PUMP) 44326 - RING, CAM(FOR VANE PUMP) 44327C - GASKET, VANE PUMP HOUSING 44330 - VALVE ASSY, FLOW CONTROL 44330 - VALVE ASSY, FLOW CONTROL 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) 44337 - UNION, POWER STEERING SUCTION PORT 44337 - UNION, POWER STEERING SUCTION PORT 44338 - UNION, PRESSURE PORT 44338A - RING, O(FOR PRESSURE PORT UNION) 44338A - RING, O(FOR PRESSURE PORT UNION) 44340 - HOUSING ASSY, PUMP, FRONT W/SHAFT 44341 - PLATE, VANE PUMP SIDE, FRONT 44342E - PLATE, VANE PUMP SIDE, REAR NO.1 44342F - PLATE, VANE PUMP SIDE, REAR NO.2 44342G - PLATE, VANE PUMP SIDE, REAR NO.3 44342H - RING, O(FOR VANE PUMP SIDE PLATE REAR NO.1) 44342J - RING, O(FOR VANE PUMP SIDE PLATE REAR NO.2) 44342J - RING, O(FOR VANE PUMP SIDE PLATE REAR NO.2) 44345B - PLATE, VANE PUMP 44345B - PLATE, VANE PUMP 44360 - RESERVOIR ASSY, VANE PUMP OIL 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) 44413F - TUBE, PRESSURE FEED, NO.2 44444C - STAY, VANE PUMP, REAR ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
