TOYOTA ESTIMA EMINA LUCIDA CXR11G-RFSGT / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT FENDER APRON DASH PANEL

(9608- )

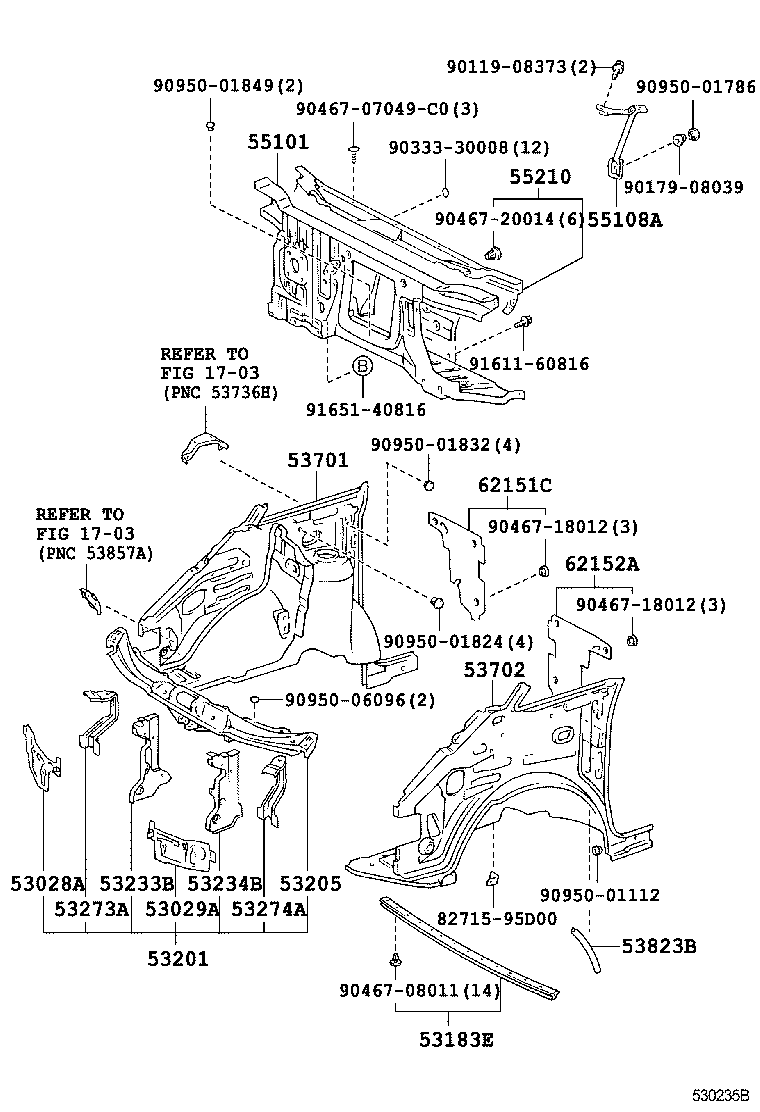

 ESTIMA EMINA LUCIDA |  FRONT FENDER APRON DASH PANEL ** Refer Fig ** Refer Fig 53028A - SUPPORT SUB-ASSY, RADIATOR, LOWER RH 53029A - SUPPORT SUB-ASSY, RADIATOR, LOWER LH 53183E - SEAL, HEADLAMP COVER, RH 53201 - SUPPORT SUB-ASSY, RADIATOR 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER 53233B - BRACKET, HEADLAMP, INNER RH 53234B - BRACKET, HEADLAMP, INNER LH 53273A - REINFORCEMENT, RADIATOR SUPPORT, RH 53274A - REINFORCEMENT, RADIATOR SUPPORT, LH 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53823B - PROTECTOR, FRONT SIDE PANEL, NO.2 55101 - PANEL SUB-ASSY, DASH 55108A - BRACE SUB-ASSY, PEDAL SUPPORT TO COWL 55210 - INSULATOR ASSY, DASH PANEL 62151C - PAD, COWL SIDE SILENCER, RH 62152A - PAD, COWL SIDE SILENCER, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
