TOYOTA PRIUS NHW10-AEEEB / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

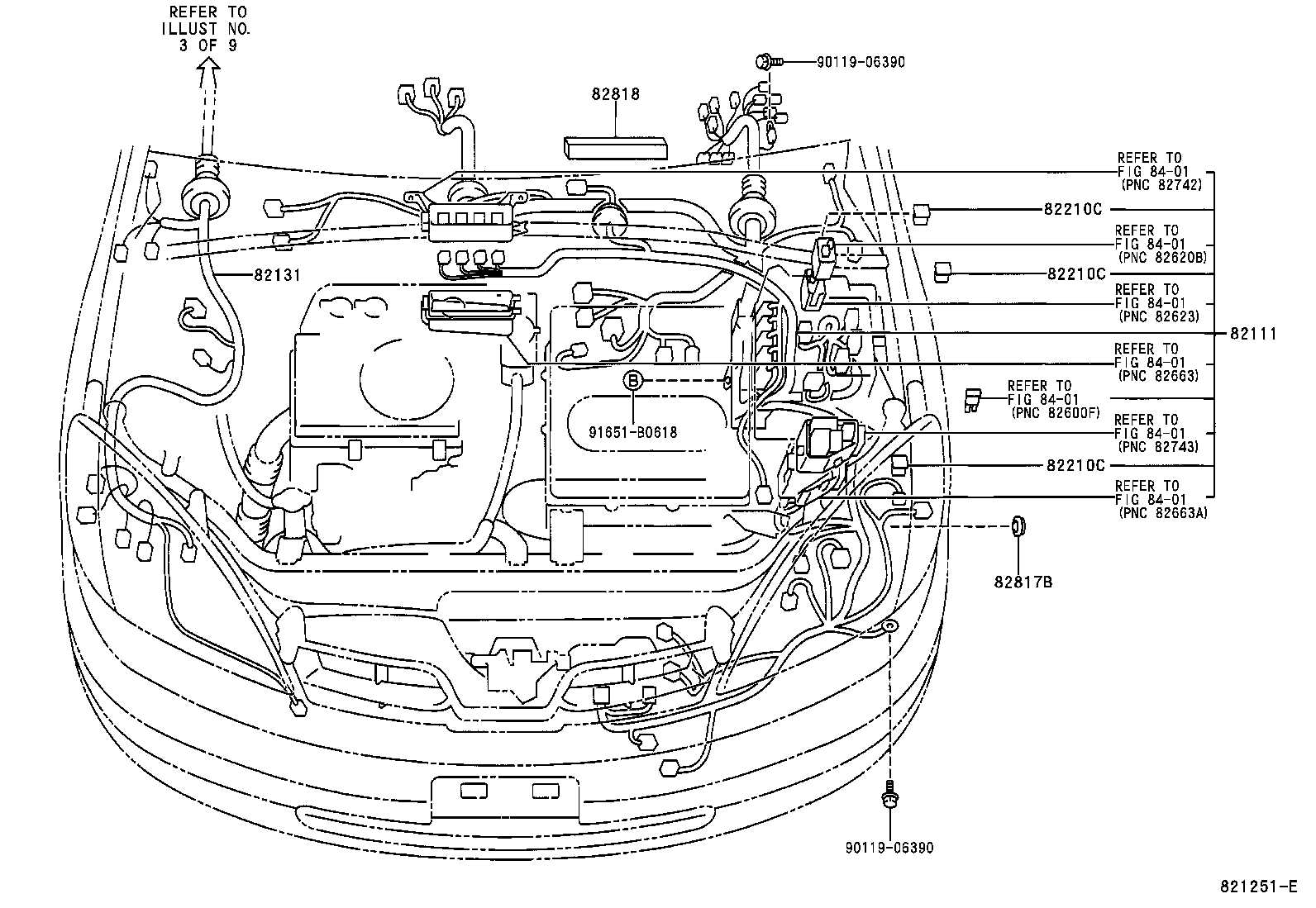

ｴﾝｼﾞﾝﾙ-ﾑ ILLUST NO. 1 OF 9(9712-0005)

PRIUS | WIRING CLAMP 82111 - WIRE, ENGINE ROOM MAIN 82131 - WIRE, COWL 82210C - FUSIBLE LINK 82210C - FUSIBLE LINK 82210C - FUSIBLE LINK 82817B - PROTECTOR, WIRING HARNESS, NO.3 82818 - PROTECTOR, WIRING HARNESS, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part
