TOYOTA CAMI J100E-GPDE / TOOL-ENGINE-FUEL / CAMSHAFT VALVE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CAMSHAFT VALVE

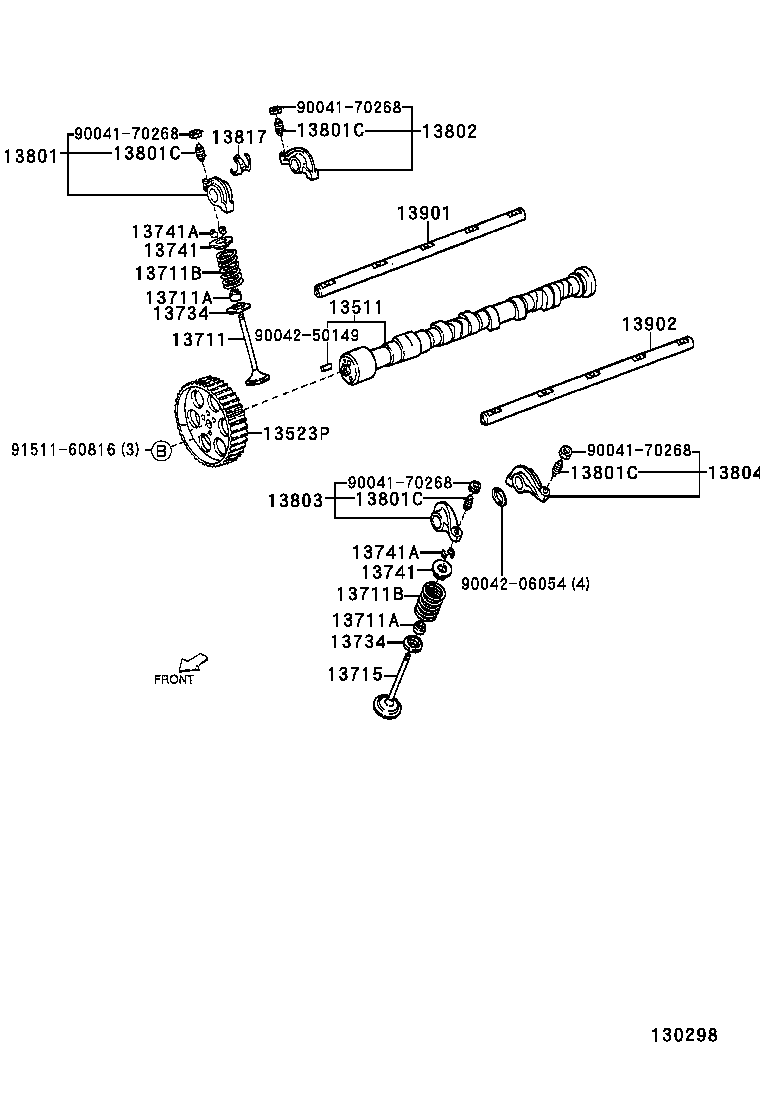

HCEJ ILLUST NO. 1 OF 2(9905-0005)

CAMI | CAMSHAFT VALVE 13511 - CAMSHAFT 13523P - PULLEY, CAMSHAFT TIMING 13711 - VALVE, INTAKE 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) 13711B - SPRING, COMPRESSION(FOR INNER) 13711B - SPRING, COMPRESSION(FOR INNER) 13715 - VALVE, EXHAUST 13734 - SEAT, VALVE SPRING 13734 - SEAT, VALVE SPRING 13741 - RETAINER, VALVE SPRING 13741 - RETAINER, VALVE SPRING 13741A - LOCK, VALVE SPRING RETAINER 13741A - LOCK, VALVE SPRING RETAINER 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 13801C - SCREW, VALVE ADJUSTING 13801C - SCREW, VALVE ADJUSTING 13801C - SCREW, VALVE ADJUSTING 13801C - SCREW, VALVE ADJUSTING 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 13803 - ARM SUB-ASSY, VALVE ROCKER, NO.3 13804 - ARM SUB-ASSY, VALYE ROCKER, NO.4 13817 - SPACER, VALVE ROCKER ARM 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 13902 - SHAFT SUB-ASSY, VALVE ROCKER, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
