TOYOTA CAMI J100E-GPDE / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

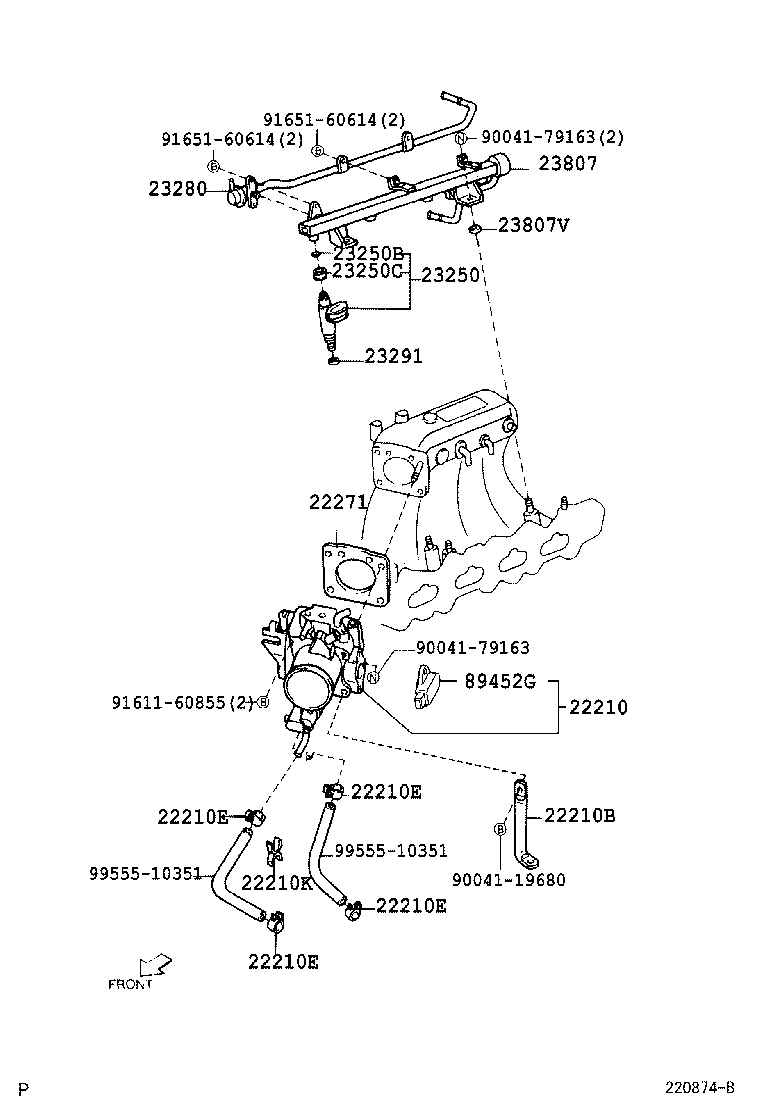

FUEL INJECTION SYSTEM

HCEJ ILLUST NO. 1 OF 4(9905-0005)

CAMI | FUEL INJECTION SYSTEM 22210 - BODY ASSY, THROTTLE 22210B - STAY, THROTTLE BODY, NO.1 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) 22210K - CLAMP(FOR WATER HOSE) 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23280 - REGULATOR ASSY, FUEL PRESSURE 23291 - INSULATOR, INJECTOR VIBRATION 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 89452G - SENSOR, THROTTLE POSITION ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
