TOYOTA LAND CRUISER PRADO VZJ90W-GJMGK / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

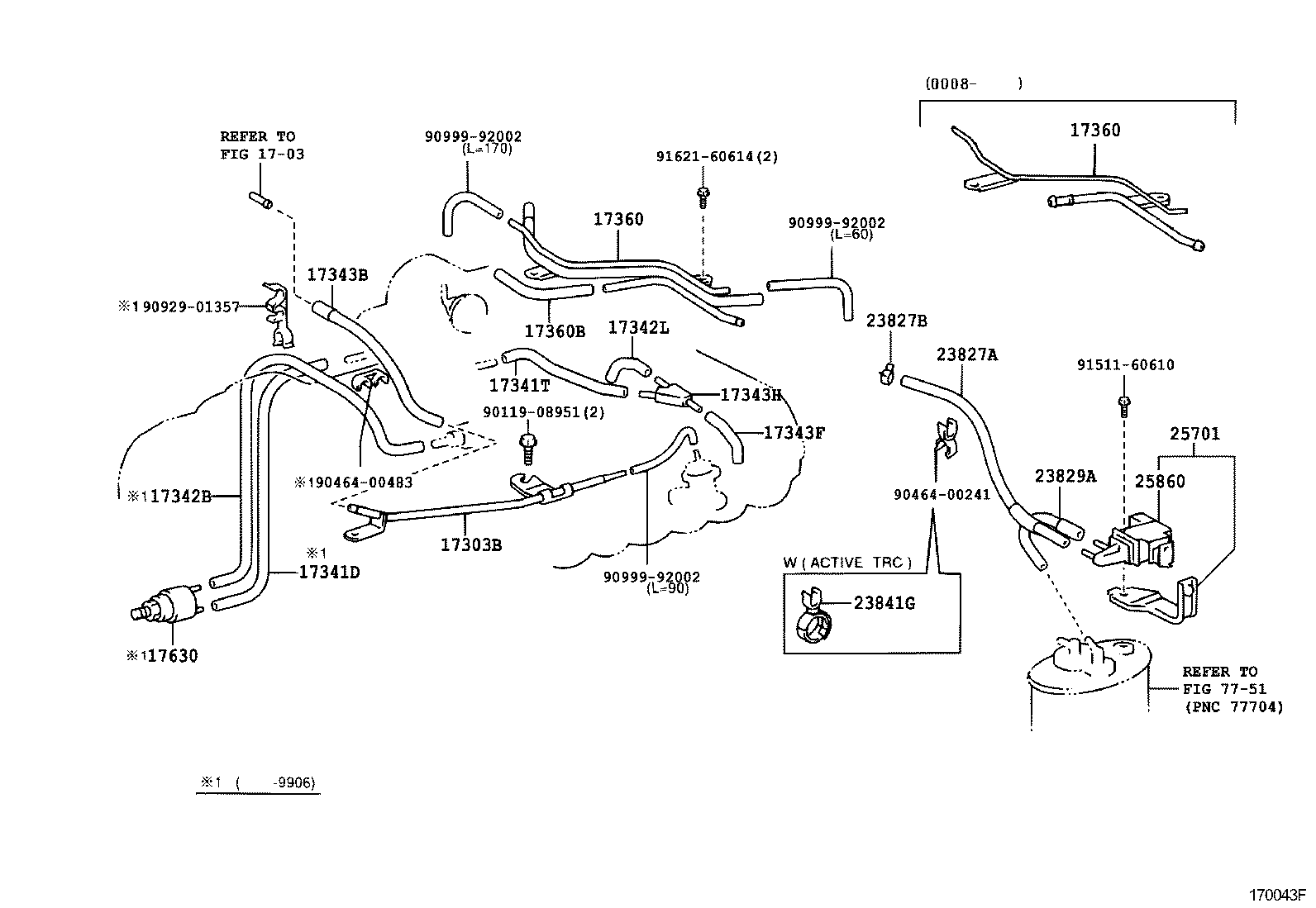

VACUUM PIPING

(9604- )5VZFE

 LAND CRUISER PRADO |  VACUUM PIPING ** Refer Fig 17303B - PIPE SUB-ASSY, AIR, NO.1 17341D - HOSE, NO.1(FOR IDLE-UP) 17341T - HOSE, AIR, NO.1 17342B - HOSE, NO.2(FOR IDLE-UP) 17342L - HOSE, AIR, NO.2 17343B - HOSE, NO.3(FOR IDLE-UP) 17343F - HOSE, AIR, NO.3 17343H - WAY, 3(FOR AIR HOSE) 17360 - TUBE ASSY, AIR 17360 - TUBE ASSY, AIR 17360B - HOSE(FOR AIR PIPE) 17630 - VALVE ASSY, AIR CONTROL 23827A - HOSE, FUEL VAPOR FEED, NO.2 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) 23829A - HOSE, FUEL VAPOR FEED 23841G - CLAMP, FUEL HOSE 25701 - VALVE SET, EMISSION CONTROL 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
