TOYOTA BB OPEN DECK NCP31-DHSGK / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR PAN LOWER BACK PANEL

(0001-0304)NCP30,31

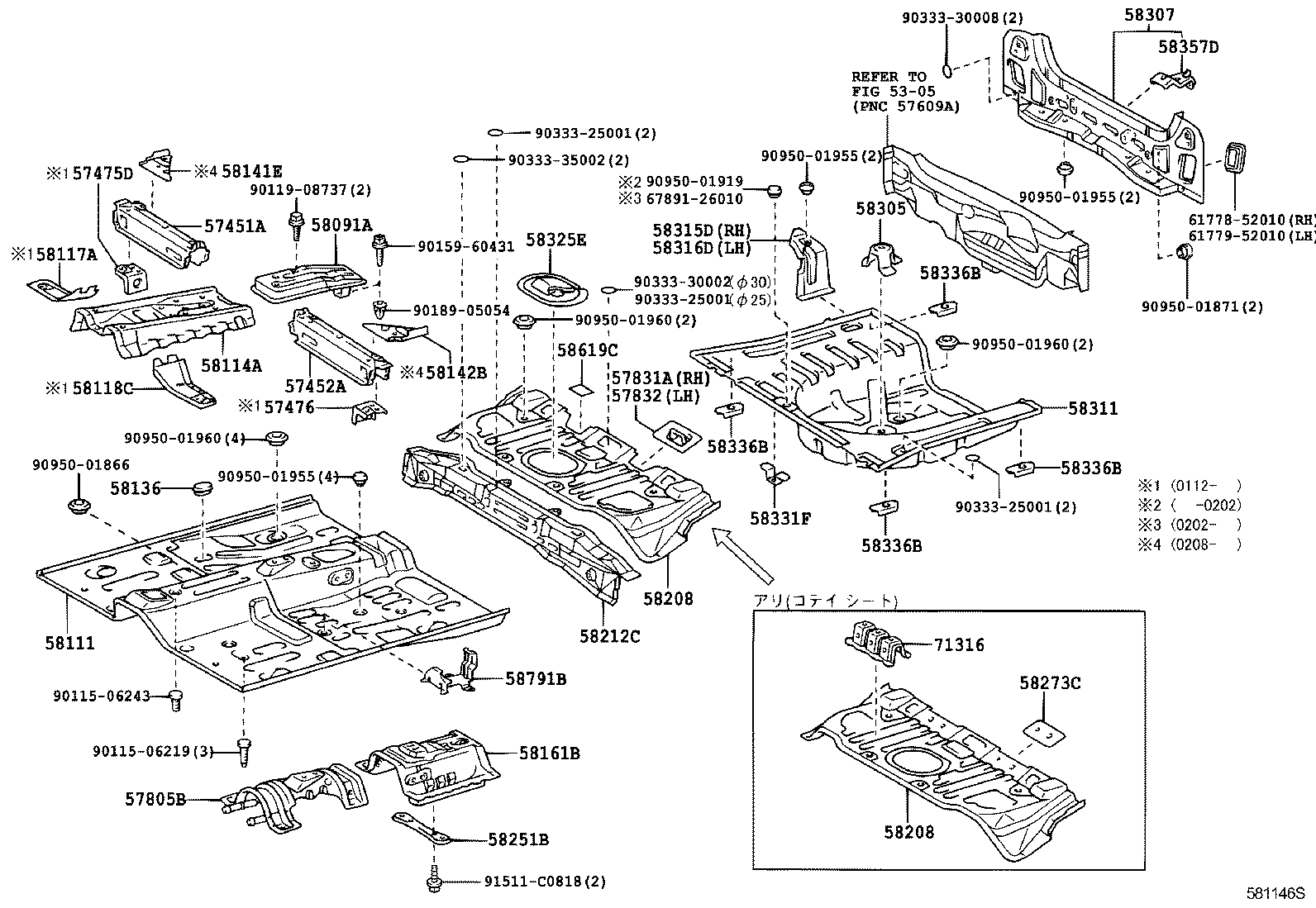

BB OPEN DECK | FLOOR PAN LOWER BACK PANEL ** Refer Fig 57451A - MEMBER, FRONT FLOOR CROSS, RH 57452A - MEMBER, FRONT FLOOR CROSS, NO.2 57475D - PLATE, FRONT FLOOR CROSSMEMBER, RH 57476 - PLATE, FRONT FLOOR CROSSMEMBER, LH 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH 57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2 58091A - REINFORCEMENT SET, BODY FITTING 58111 - PAN, FRONT FLOOR 58114A - REINFORCEMENT, FRONT FLOOR PANEL 58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH 58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH 58136 - COVER, FRONT FLOOR HOLE 58141E - REINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH 58142B - REINFORCEMNT, FRONT SIDE MEMBER TO FLOOR PAN, LH 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN 58208 - PAN, CENTER FLOOR 58208 - PAN, CENTER FLOOR 58212C - PAN, CENTER FLOOR, FRONT 58251B - BRACE, FLOOR PANEL, FRONT 58273C - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58315D - EXTENSION, REAR FLOOR PAN, RH 58316D - EXTENSION, REAR FLOOR PAN, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 58336B - REINFORCEMENT, REAR FLOOR PAN 58336B - REINFORCEMENT, REAR FLOOR PAN 58336B - REINFORCEMENT, REAR FLOOR PAN 58336B - REINFORCEMENT, REAR FLOOR PAN 58357D - SUPPORT, REAR STEP, NO.1 58619C - SHEET, CENTER FLOOR SILENCER SUB 58791B - CARRIER, JACK ** Std Part ** Std Part ** Std Part 71316 - BRACKET, REAR SEAT SUPPORT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
