TOYOTA AVENSIS AZT255W-AWPNH / POWERTRAIN-CHASSIS / TRANSFER GEAR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

TRANSFER GEAR

(0309- )AZT255

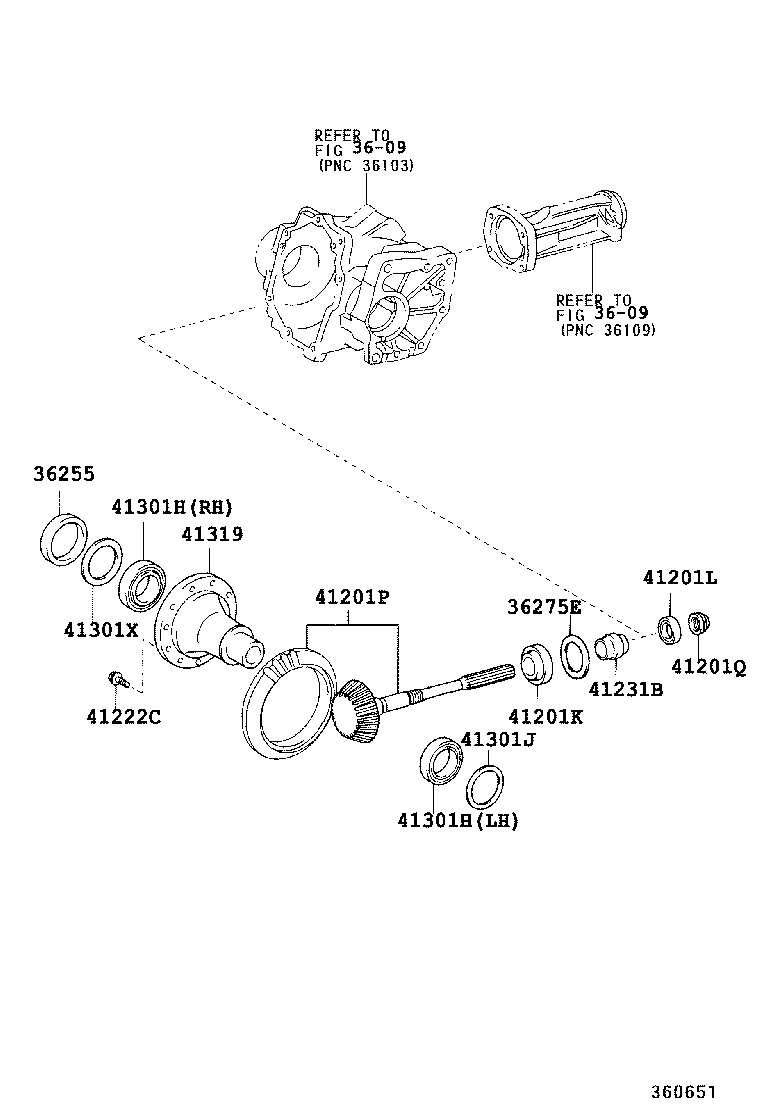

 AVENSIS |  TRANSFER GEAR ** Refer Fig ** Refer Fig 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 36275E - WASHER, TRANSFER OUTPUT SHAFT 41201K - BEARING (FOR TRANSFER DRIVEN PINION FRONT) 41201L - BEARING (FOR TRANSFER DRIVEN PINION REAR) 41201P - GEAR KIT, TRANSFER 41201Q - NUT (FOR TRANSFER GEAR) 41222C - BOLT (FOR TRANSFER RING GEAR) 41231B - SPACER, TRANSFER PINION BEARING 41301H - BEARING(FOR RING GEAR MOUNTING CASE) 41301H - BEARING(FOR RING GEAR MOUNTING CASE) 41301J - WASHER, PLATE(FOR RING GEAR MOUNTING CASE) 41301X - WASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2 41319 - CASE, TRANSFER RING GEAR MOUNTING
