TOYOTA ESTIMA ACR50W-GRXEK / BODY / FRONT DOOR LOCK HANDLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

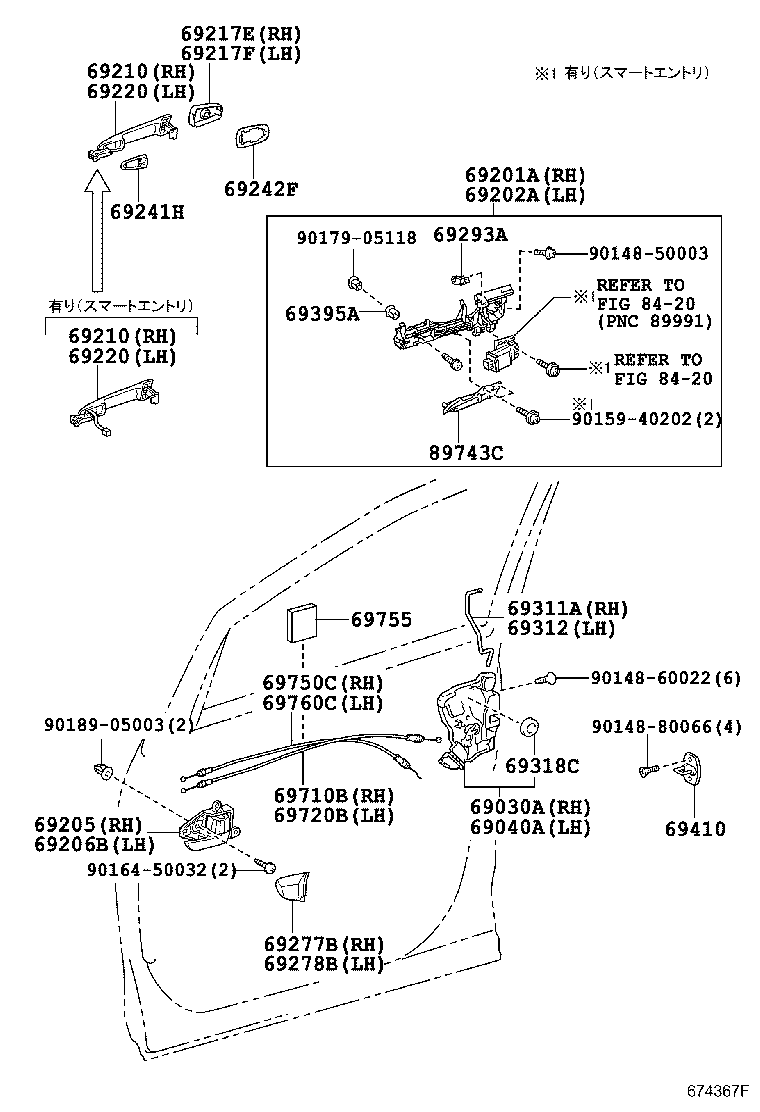

FRONT DOOR LOCK HANDLE

(0601- )

ESTIMA | FRONT DOOR LOCK HANDLE 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT 69242F - PAD, FRONT DOOR OUTSIDE HANDLE, REAR 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE 69311A - ROD, FRONT DOOR LOCK OPEN, RH 69312 - ROD, FRONT DOOR LOCK OPEN, LH 69318C - SEAL, DOOR LOCK WIRING HARNESS 69395A - BUSHING(FOR FRONT DOOR OUTSIDE HANDLE) 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH 69755 - SILENCER, FRONT DOOR LOCK LINK 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH ** Refer Fig ** Refer Fig 89743C - BRACKET, ELECTRICAL KEY WIRE HARNESS ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
