TOYOTA MARK X GRX121-AETZH / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

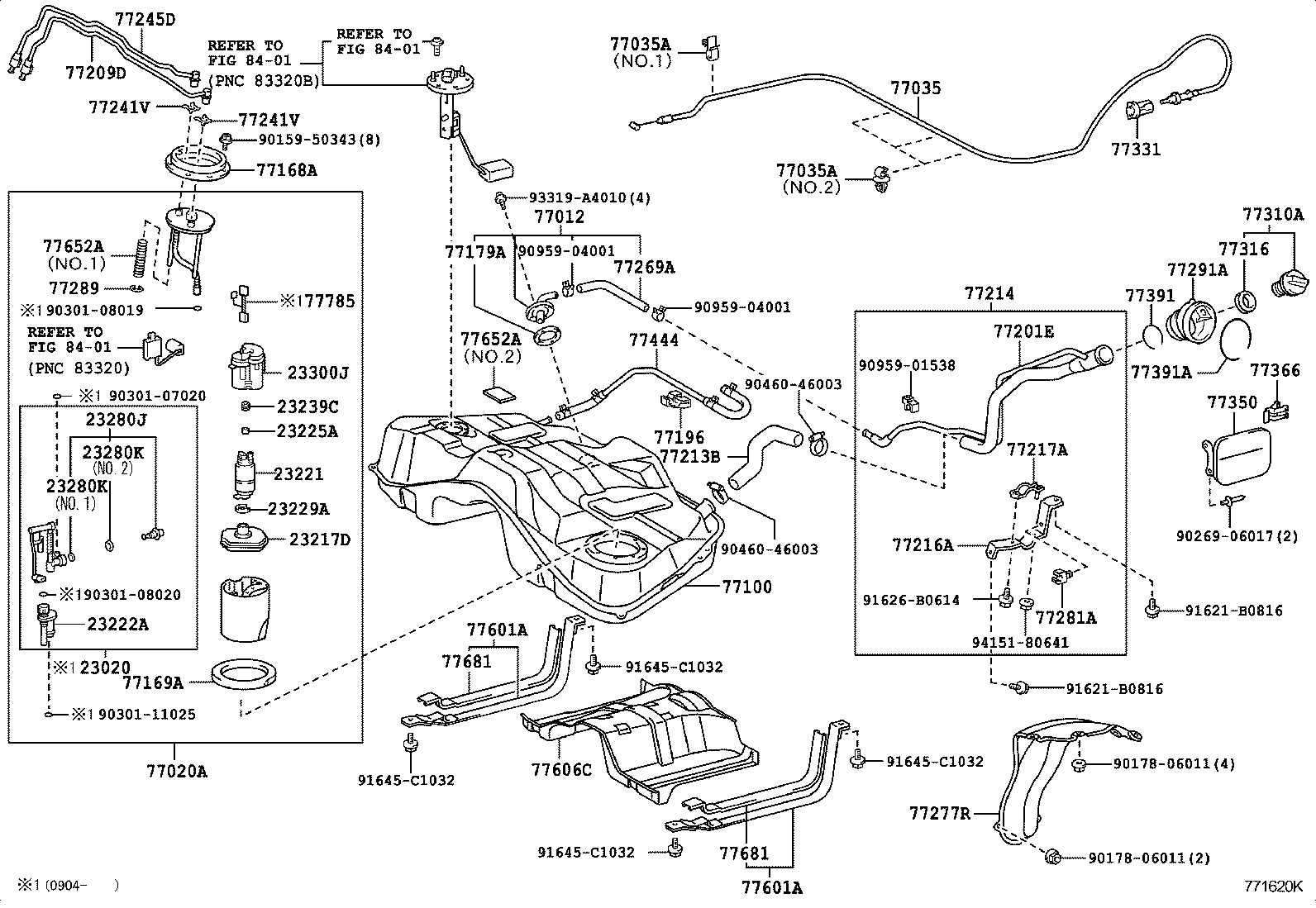

ﾌｭｰｴﾙ ﾀﾝｸ ILLUST NO. 1 OF 2(0411- )

MARK X | FUEL TANK TUBE 23020 - REGULATOR ASSY, FUEL PRESSURE W/JET PUMP 23217D - FILTER, FUEL PUMP 23221 - PUMP, FUEL 23222A - TUBE, FUEL RETURN JET 23225A - SPACER, FUEL PUMP 23229A - CLIP(FOR FUEL PUMP FILTER) 23239C - SEAL, FUEL PUMP FILTER 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23300J - FILTER ASSY, FUEL 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) 77100 - TANK ASSY, FUEL 77168A - PLATE, FUEL TANK VENT TUBE SET 77169A - GASKET, FUEL SUCTION TUBE SET 77179A - GASKET, FUEL TANK BREATHER TUBE 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77209D - TUBE SUB-ASSY, FUEL TANK MAIN 77213B - HOSE, FUEL TANK TO FILLER PIPE 77214 - PIPE, FUEL TANK FILLER 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77241V - CLIP, TUBE JOINT 77241V - CLIP, TUBE JOINT 77245D - TUBE, FUEL TANK RETURN VENT 77269A - HOSE, FUEL TANK BREATHER 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77281A - CLAMP, FUEL FILLER PIPE 77289 - HOLDER, FUEL TANK PIPE SETTING 77291A - SHIELD, FUEL TANK FILLER PIPE 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77331 - BRACKET, FUEL LID LOCK CONTROL 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77444 - HOSE, FUEL TANK VENT 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77606C - PROTECTOR, FUEL TANK, NO.2 77652A - CUSHION, FUEL TANK, NO.2 77652A - CUSHION, FUEL TANK, NO.2 77681 - SEAT, FUEL TANK BAND, RH 77681 - SEAT, FUEL TANK BAND, RH 77785 - HARNESS, FUEL PUMP ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
