TOYOTA FJ CRUISER GSJ15W-GKASK / BODY / FRONT FLOOR PANEL FRONT FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

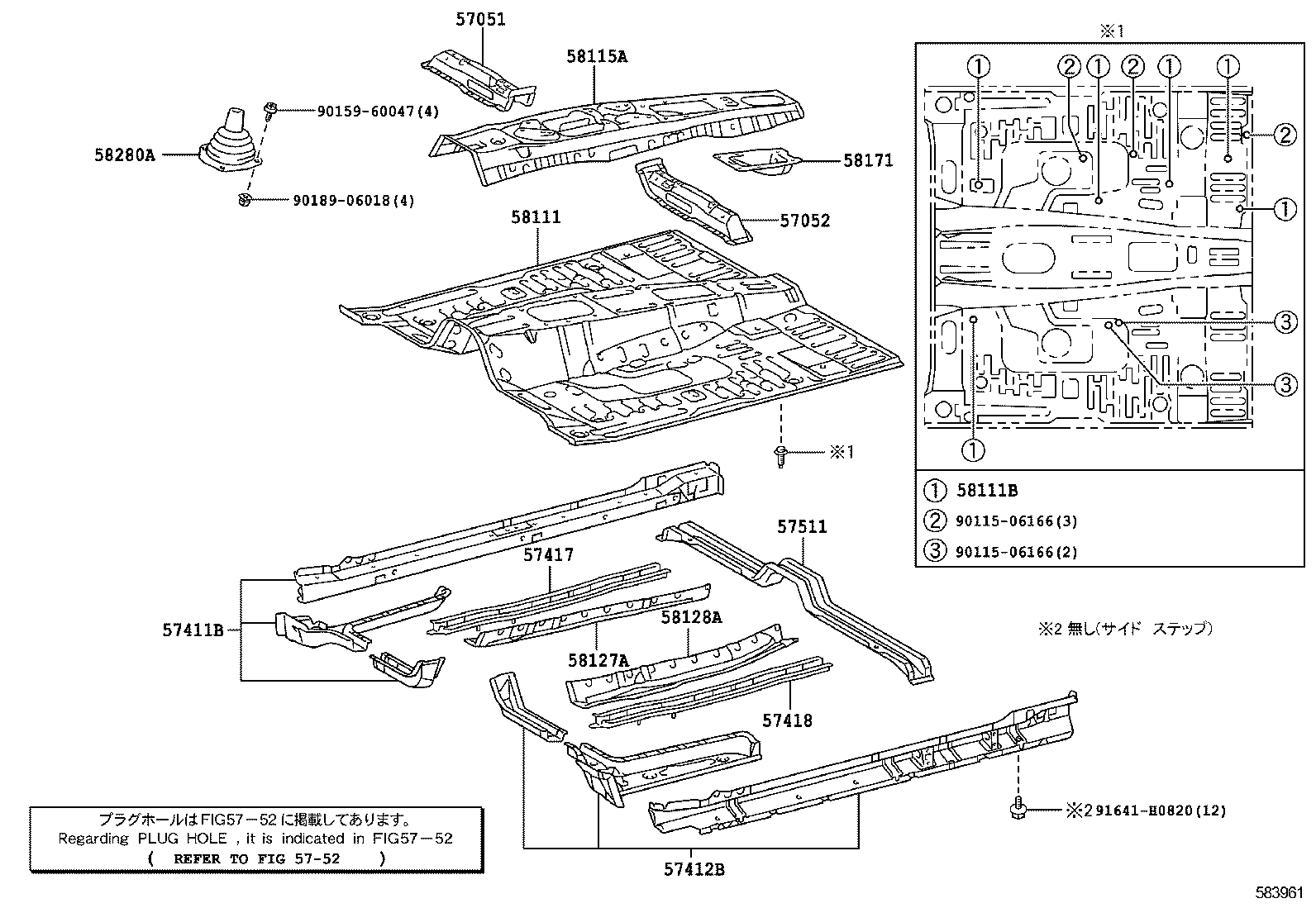

FRONT FLOOR PANEL FRONT FLOOR MEMBER

ILLUST NO. 1 OF 2(1011- )

FJ CRUISER | FRONT FLOOR PANEL FRONT FLOOR MEMBER 57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 57411B - MEMBER, FLOOR SIDE, INNER RH 57412B - MEMBER, FLOOR SIDE, INNER LH 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH 57511 - REINFORCEMENT, FRONT FLOOR, CENTER ** Refer Fig 58111 - PAN, FRONT FLOOR 58111B - BOLT, WELD(FOR FRONT FLOOR PAN) 58115A - REINFORCEMENT, FRONT FLOOR PANEL 58127A - REINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH 58128A - REINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH 58171 - REINFORCEMENT, PARKING BRAKE BASE 58280A - BOOT ASSY, SHIFT LEVER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
