TOYOTA FJ CRUISER GSJ15W-GKASK / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

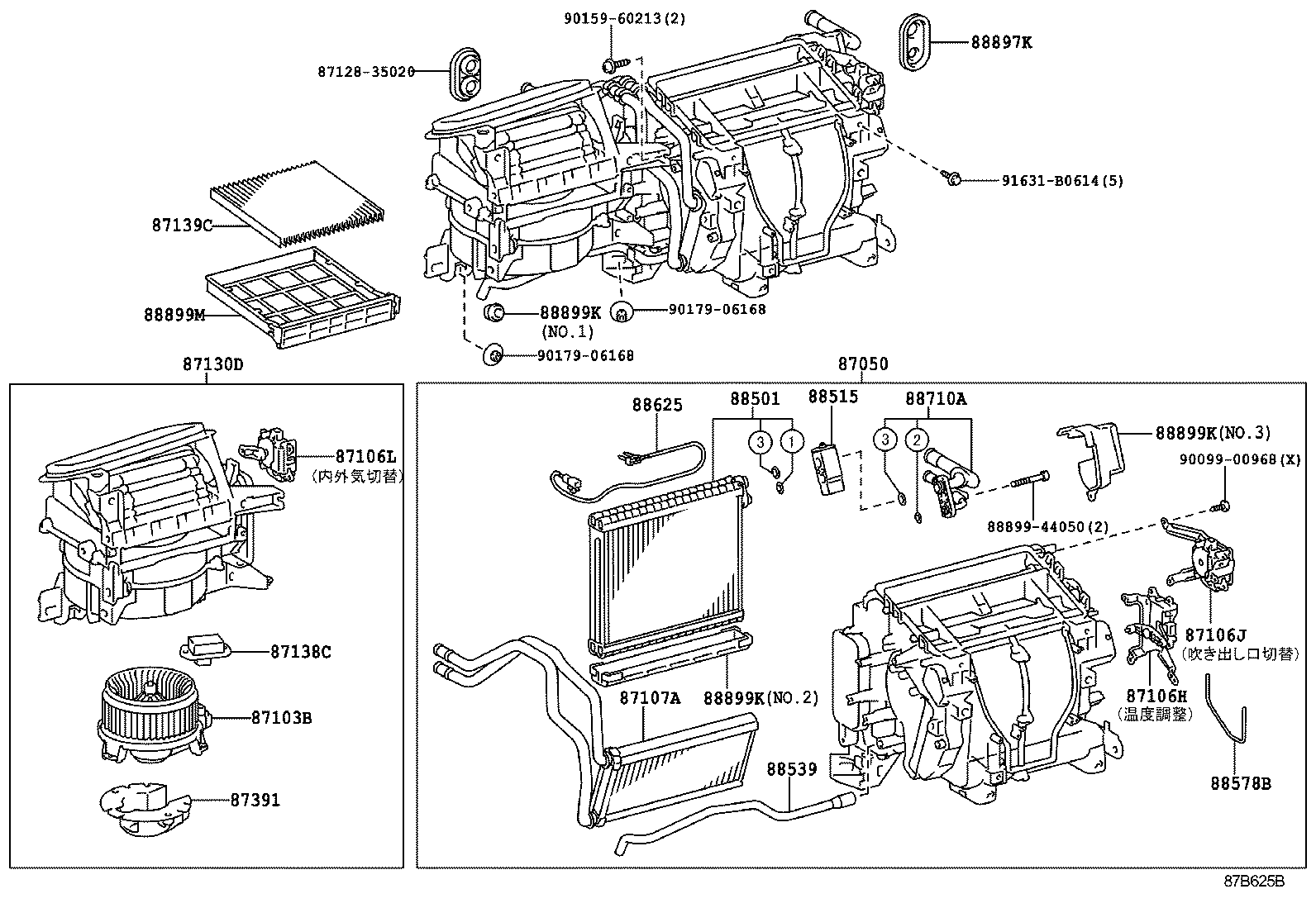

HEATING AIR CONDITIONING COOLER UNIT

ILLUST NO. 1 OF 2(1011- )

FJ CRUISER | HEATING AIR CONDITIONING COOLER UNIT 87050 - RADIATOR ASSY, AIR CONDITIONER 87103B - MOTOR SUB-ASSY, BLOWER W/FAN 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) 87106L - SERVO SUB-ASSY, DAMPER 87107A - UNIT SUB-ASSY, HEATER RADIATOR ** Std Part 87130D - BLOWER ASSY 87138C - RESISTOR, BLOWER 87139C - FILTER, CLEAN AIR 87391 - COVER, BLOWER MOTOR 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88515 - VALVE, COOLER EXPANSION 88539 - HOSE, COOLER UNIT DRAIN, NO.1 88578B - PACKING, COOLING UNIT, NO.1 88625 - THERMISTOR, COOLER, NO.1 88710A - TUBE ASSY, AIRCONDITIONER 88897K - GROMMET, (FOR COOLER PIPE) ** Std Part 88899K - PLATE, COVER 88899K - PLATE, COVER 88899K - PLATE, COVER 88899M - PLATE, COVER(FOR AIR FILTER) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
