TOYOTA MARK X ZIO GGA10-AWTQK / BODY / FRONT BUMPER BUMPER STAY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

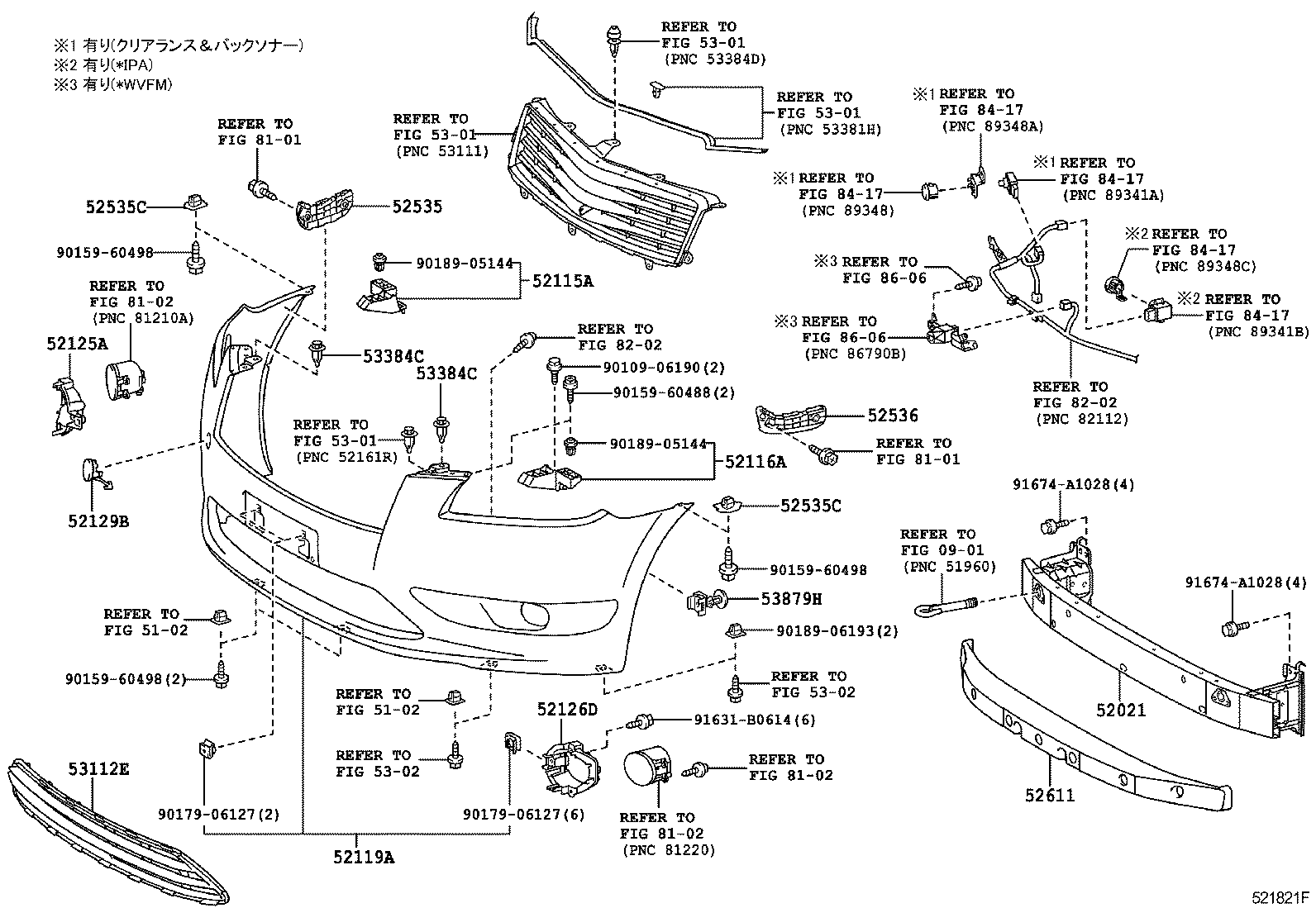

FRONT BUMPER BUMPER STAY

(0709-1102)240,240G,350G ; (0709- )240F

 MARK X ZIO |  FRONT BUMPER BUMPER STAY ** Refer Fig ** Refer Fig ** Refer Fig 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER 52115A - SUPPORT, FRONT BUMPER SIDE, RH 52116A - SUPPORT, FRONT BUMPER SIDE, LH 52119A - COVER, FRONT BUMPER 52125A - BRACKET, FOG LAMP MOUNTING, RH 52126D - BRACKET, FOG LAMP MOUNTING, LH 52129B - COVER, FRONT BUMPER, LOWER 52535 - RETAINER, FRONT BUMPER SIDE, RH 52535C - RETAINER, FRONT BUMPER SIDE 52535C - RETAINER, FRONT BUMPER SIDE 52536 - RETAINER, FRONT BUMPER SIDE, LH 52611 - ABSORBER, FRONT BUMPER ENERGY ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 53112E - GRILLE, RADIATOR, LOWER NO.1 53384C - CUSHION, HOOD, CENTER 53384C - CUSHION, HOOD, CENTER 53879H - RETAINER, FRONT FENDER LINER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
