TOYOTA MARK X ZIO GGA10-AWTQK / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

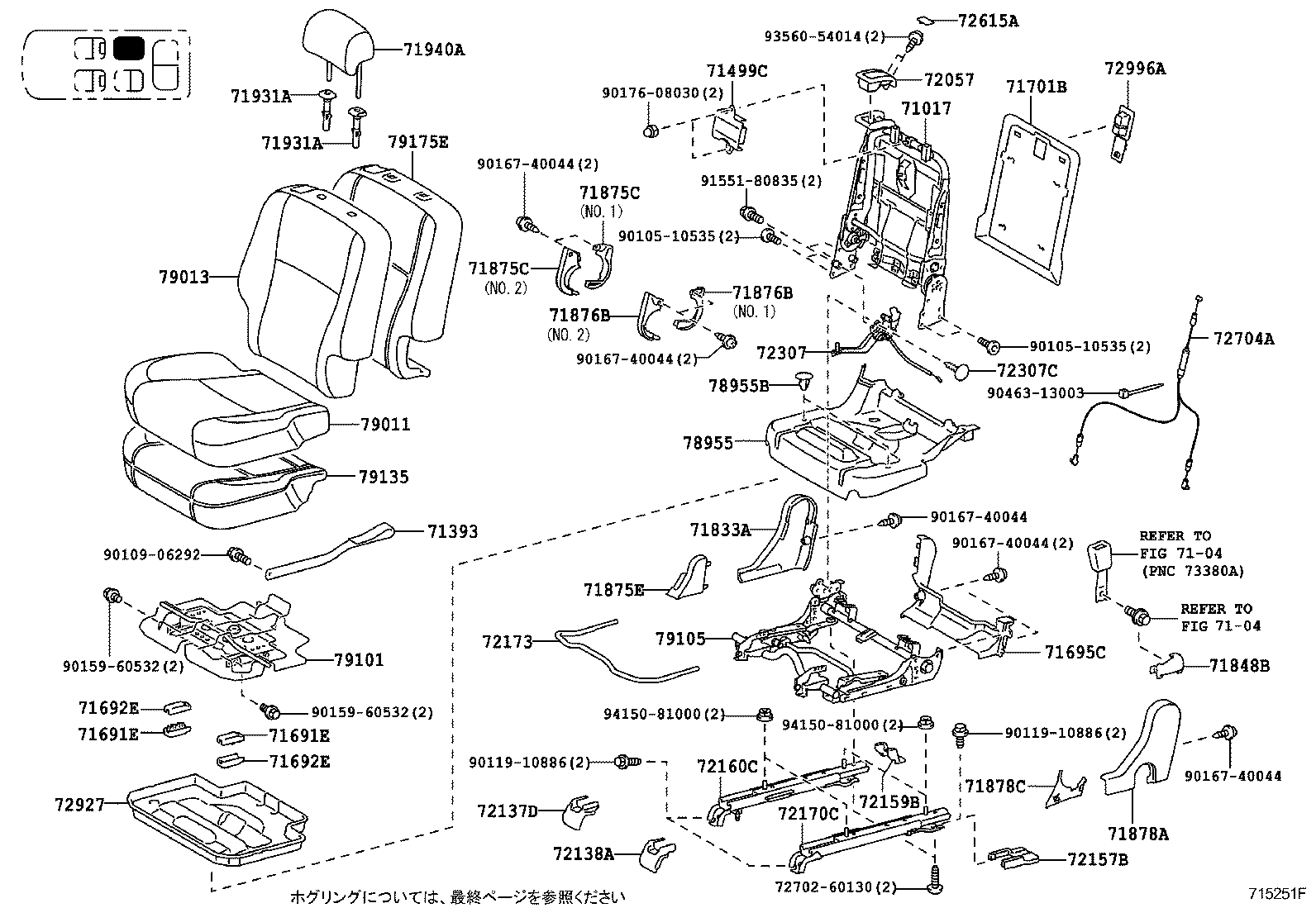

REAR SEAT SEAT TRACK

リヤ NO.1 シート(RH=キャプテン シート) (0709- )240G,350G,ARIAL

 MARK X ZIO |  REAR SEAT SEAT TRACK 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH ** Refer Fig ** Refer Fig 71393 - BAND, REAR SEAT CUSHION 71499C - DAMPER, REAR SEAT CUSHION SPRING 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 71695C - PROTECTOR, REAR SEAT, NO.1 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH 71833A - COVER, REAR SEAT RECLINING, NO.1 RH 71848B - CAP, SEAT ADJUSTER COVER, RH 71875C - COVER, RECLINING ADJUSTER INSIDE, RH 71875C - COVER, RECLINING ADJUSTER INSIDE, RH 71875E - COVER, RECLINING ADJUSTER INSIDE, RH 71876B - COVER, RECLINING ADJUSTER INSIDE, LH 71876B - COVER, RECLINING ADJUSTER INSIDE, LH 71878A - COVER, REAR SEAT RECLINING, INNER RH 71878C - COVER, REAR SEAT RECLINING, INNER RH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH 72137D - COVER, REAR SEAT TRACK, RH 72138A - COVER, REAR SEAT TRACK, LH 72157B - COVER, REAR SEAT TRACK BRACKET, INNER RH 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER 72160C - TRACK ASSY, REAR NO.1 SEAT, OUTER RH 72170C - TRACK ASSY, REAR NO.1 SEAT, INNER RH 72173 - HANDLE, REAR SEAT TRACK ADJUSTING 72307 - LINK SUB-ASSY, RECLINING CONTROL, RH 72307C - CLIP, RECLINING CONTROL LINK 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH  ** Std Part 72704A - CABLE, REAR SEAT RECLINING CONTROL 72927 - COVER, REAR SEAT CUSHION UNDER, RH 72996A - COVER, REAR SEAT BACK 78955 - COVER, REAR SEAT UNDER TRAY RH 78955B - CLIP(FOR REARSEAT UNDER TRAY) 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH 79101 - FRAME SUB-ASSY, NO.1 SEAT CUSHION 79105 - LEG SUB-ASSY, NO.1 SEAT, RH 79135 - PAD, NO.1 SEAT CUSHION 79175E - PAD, NO.1 SEAT BACK, RH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
