TOYOTA LAND CRUISER 40 55 FJ40L-A / POWERTRAIN-CHASSIS / FRONT AXLE HUB

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

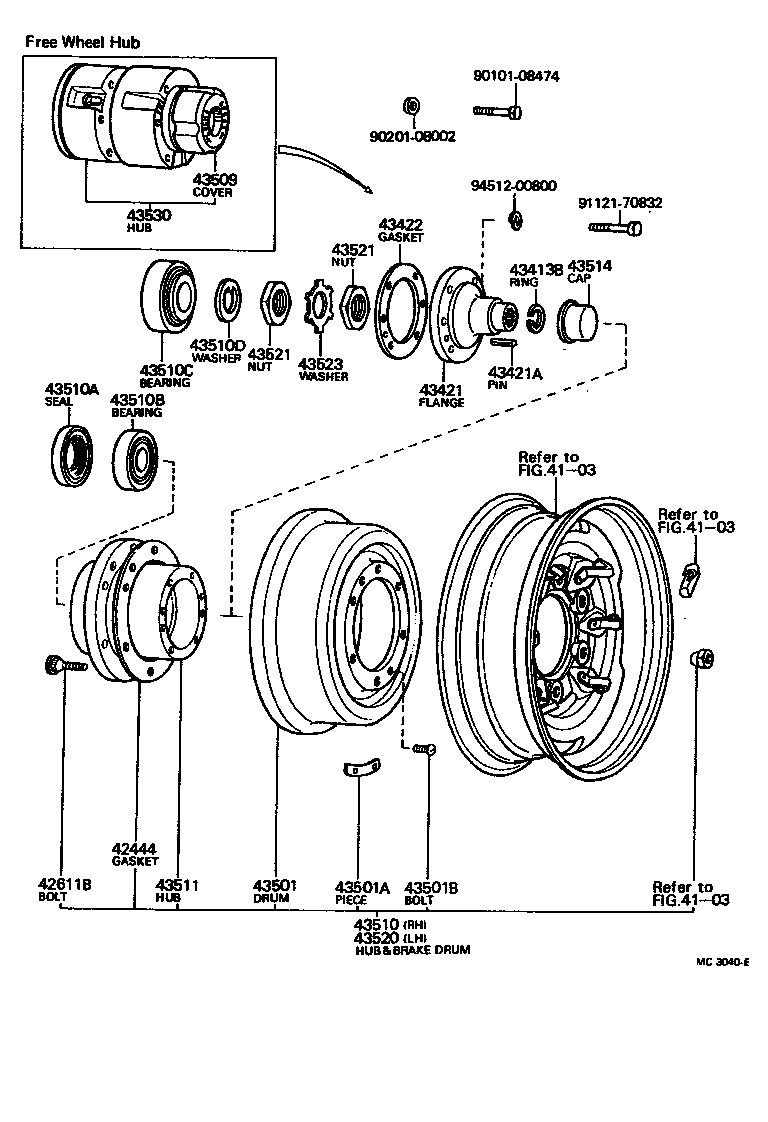

FRONT AXLE HUB

(6903-7509)

LAND CRUISER 40 55 | FRONT AXLE HUB ** Refer Fig ** Refer Fig ** Refer Fig 42444 - GASKET, BRAKE DRUM (FOR FRONT AXLE) 42611B - BOLT, HUB (FOR FRONT AXLE) 43413B - RING, DRIVE SHAFT SNAP 43421 - FLANGE, FRONT AXLE OUTER SHAFT 43421A - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE) 43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE 43501 - DRUM SUB-ASSY, FRONT BRAKE 43501A - PIECE, BALANCE (FOR FRONT BRAKE DRUM) 43501B - BOLT, SET (FOR FRONT BRAKE DRUM SETTING) 43509 - COVER SUB-ASSY, FREE WHEEL HUB 43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH 43510A - SEAL, OIL (FOR FRONT AXLE HUB) 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) 43511 - HUB, FRONT AXLE 43514 - CAP, FRONT HUB GREASE 43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH 43521 - NUT, FRONT WHEEL ADJUSTING 43521 - NUT, FRONT WHEEL ADJUSTING 43523 - WASHER, FRONT WHEEL ADJUSTING LOCK 43530 - HUB ASSY, FREE WHEEL ** Std Part ** Std Part ** Std Part ** Std Part
