TOYOTA LAND CRUISER 40 55 FJ40L-A / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

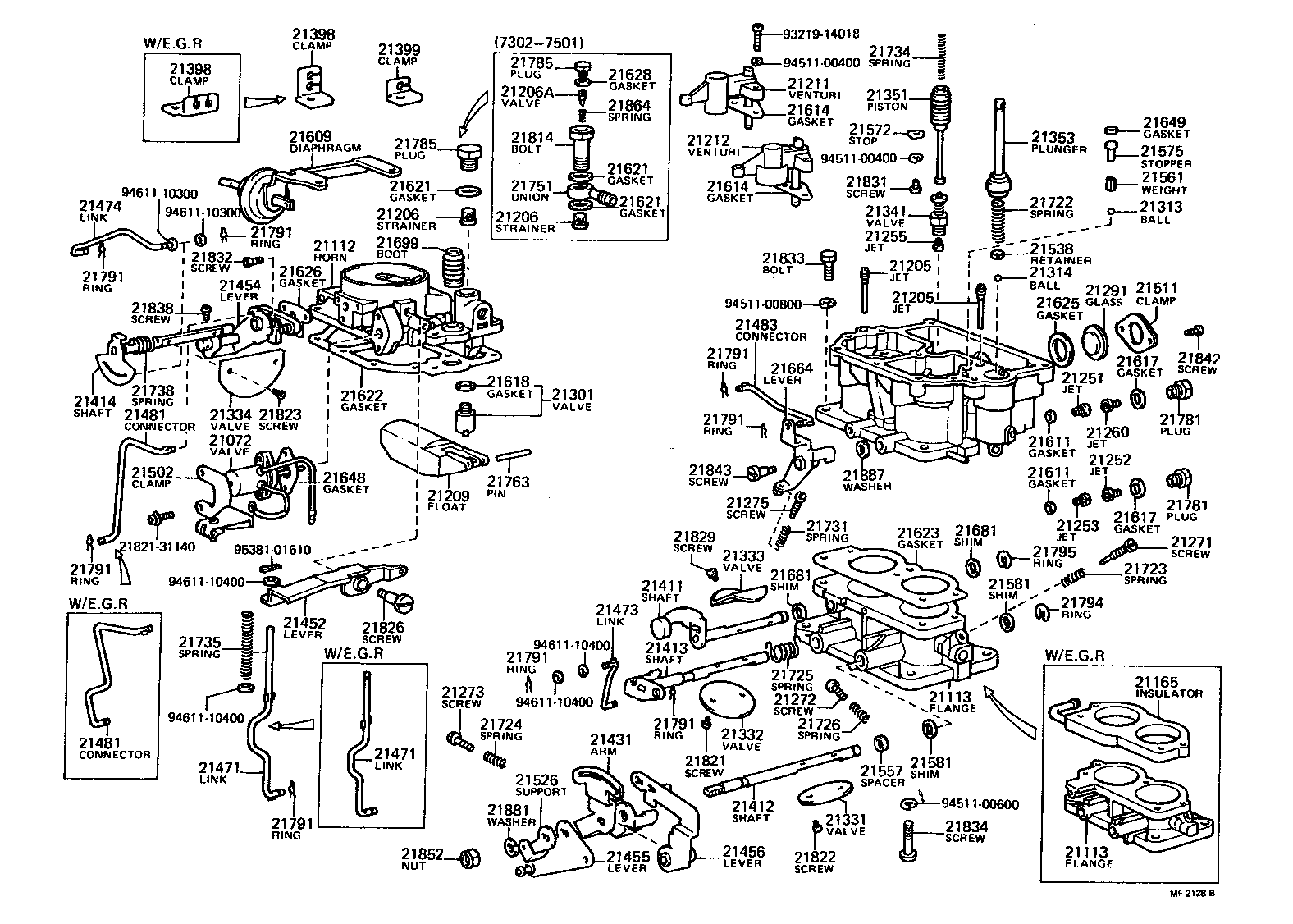

CARBURETOR

(7309-7501)

LAND CRUISER 40 55 | CARBURETOR 21072 - VALVE SUB-ASSY, SLOW 21112 - HORN, AIR 21113 - FLANGE, CARBURETOR 21113 - FLANGE, CARBURETOR 21165 - INSULATOR 21205 - JET SUB-ASSY, SLOW 21205 - JET SUB-ASSY, SLOW 21206 - STRAINER SUB-ASSY 21206 - STRAINER SUB-ASSY 21206A - VALVE, FUEL INLET 21209 - FLOAT SUB-ASSY 21211 - VENTURI, 1ST SMALL 21212 - VENTURI, 2ND SMALL 21251 - JET, 1ST MAIN 21252 - JET, 1ST MAIN SPARE 21253 - JET, 2ND MAIN 21255 - JET, POWER 21260 - JET, POWER SPARE 21271 - SCREW, IDLE ADJUSTING 21272 - SCREW, 1ST IDLE ADJUSTING 21273 - SCREW, THROTTLE ADJUSTING 21275 - SCREW, ADJUSTING 21291 - GLASS, LEVEL GAGE 21301 - VALVE SUB-ASSY, NEEDLE 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) 21331 - VALVE, 1ST THROTTLE 21332 - VALVE, 2ND THROTTLE 21333 - VALVE, HIGH SPEED 21334 - VALVE, CHOKE 21341 - VALVE, POWER 21351 - PISTON, POWER 21353 - PLUNGER, PUMP 21398 - SUPPORT(FOR DASH POT) 21398 - SUPPORT(FOR DASH POT) 21399 - SUPPORT(FOR DASH POT) 21411 - SHAFT, HIGH SPEED 21412 - SHAFT, 1ST THROTTLE 21413 - SHAFT, 2ND THROTTLE 21414 - SHAFT, CHOKE 21431 - ARM, 1ST THROTTLE SHAFT 21452 - LEVER, PUMP 21454 - LEVER, CHOKE 21455 - LEVER, THROTTLE 21456 - LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1 21471 - LINK, PUMP CONNECTING 21471 - LINK, PUMP CONNECTING 21473 - LINK, THROTTLE SHAFT 21474 - LINK, CONNECTING 21481 - CONNECTOR, 1ST IDLE 21481 - CONNECTOR, 1ST IDLE 21483 - CONNECTOR, NO.1 21502 - CLAMP SUB-ASSY, CHOKE WIRE 21511 - CLAMP, LEVEL GAGE 21526 - SUPPORT, BACK SPRING 21538 - RETAINER, BALL CHECK 21557 - SPACER(FOR 1ST IDLE CAM) 21561 - WEIGHT, PUMP DISCHARGE 21572 - STOP, POWER PISTON 21575 - STOPPER, B(FOR DISCHARGE WEIGHT) 21581 - SHIM, 1ST THROTTLE SHAFT 21581 - SHIM, 1ST THROTTLE SHAFT 21609 - DIAPHRAGM SUB-ASSY 21611 - GASKET, MAIN JET 21611 - GASKET, MAIN JET 21614 - GASKET, VENTURI 21614 - GASKET, VENTURI 21617 - GASKET, MAIN PASSAGE PLUG 21617 - GASKET, MAIN PASSAGE PLUG 21618 - GASKET, NEEDLE VALVE SEAT 21621 - GASKET, UNION NIPPLE 21621 - GASKET, UNION NIPPLE 21621 - GASKET, UNION NIPPLE 21622 - GASKET, AIR HORN 21623 - GASKET, BODY FLANGE 21625 - GASKET, LEVEL GAGE 21626 - GASKET, CASE 21628 - GASKET, PUMP JET SCREW 21648 - PACKING(FOR SLOW VALVE COVER) 21649 - GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER) 21664 - LEVER(FOR DASH POT OR POSITIONER) 21681 - SHIM(FOR HIGH SPEED SHAFT) 21681 - SHIM(FOR HIGH SPEED SHAFT) 21699 - BOOT(FOR PUMP PLUNGER) 21722 - SPRING, PUMP DAMPING 21723 - SPRING, IDLE ADJUSTING 21724 - SPRING, THROTTLE ADJUSTING 21725 - SPRING, 2ND THROTTLE BACK 21726 - SPRING, 1ST IDLE ADJUSTING 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING 21734 - SPRING, POWER PISTON 21735 - SPRING, PUMP ARM 21738 - SPRING, CHOKE VALVE RELIEF 21751 - UNION, NIPPLE 21763 - PIN, FLOAT LEVER 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) 21785 - PLUG, CARBURETOR FUEL INLET STRAINER 21785 - PLUG, CARBURETOR FUEL INLET STRAINER 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) 21795 - RING, RETAINER, NO.2(FOR HIGH SPEED SHAFT) 21814 - BOLT, FUEL INLET 21821 - SCREW, 2ND THROTTLE VALVE SET ** Std Part 21822 - SCREW, 1ST THROTTLE VALVE SET 21823 - SCREW, CHOKE, VALVE SET 21826 - SCREW, PUMP ARM SET 21829 - SCREW, HIGH SPEED VALVE SET 21831 - SCREW, POWER PISTON STOP 21832 - SCREW(FOR CHOKE LEVER ADAPTER SET) 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) 21838 - SCREW, CHOKE WIRE CLAMP 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) 21843 - SCREW OR PIN (FOR DASH POT OR POSITIONER LEVER) 21852 - NUT, THROTTLE LEVER SET 21864 - SPRING(FOR 1ST THROTTLE ARM) 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) 21887 - WASHER(FOR CONNECTING LINK SETTING) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
