TOYOTA LAND CRUISER 40 55 FJ45LP-KK / BODY / FRAME

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRAME

(7606-7901)FJ45

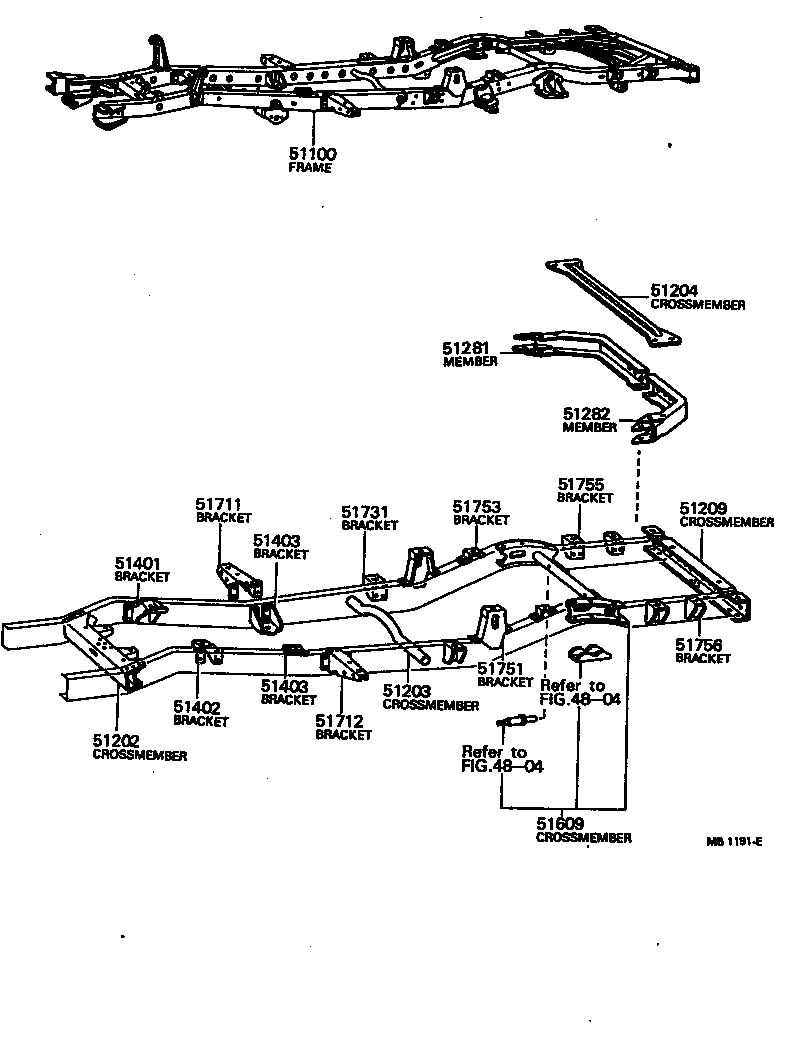

 LAND CRUISER 40 55 |  FRAME ** Refer Fig ** Refer Fig 51100 - FRAME ASSY 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8 51281 - MEMBER, REAR DIAGONAL, RH 51282 - MEMBER, REAR DIAGONAL, LH 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH 51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING 51403 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING 51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT 51711 - BRACKET, FRONT BODY SUPPORT OR MOUNTING, RH 51712 - BRACKET, FRONT BODY SUPPORT OR MOUNTING, LH 51731 - BRACKET, CAB REAR MOUNTING, RH 51751 - BRACKET, BODY SUPPORT, NO.1 51753 - BRACKET, BODY SUPPORT, NO.2 51755 - BRACKET, BODY SUPPORT, NO.3 RH 51756 - BRACKET, BODY SUPPORT, NO.3 LH
