TOYOTA CELICA MA46L-BLHQEA / ELECTRICAL / HEATING AIR CONDITIONING COMPRESSOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COMPRESSOR

(7901- )MA4#

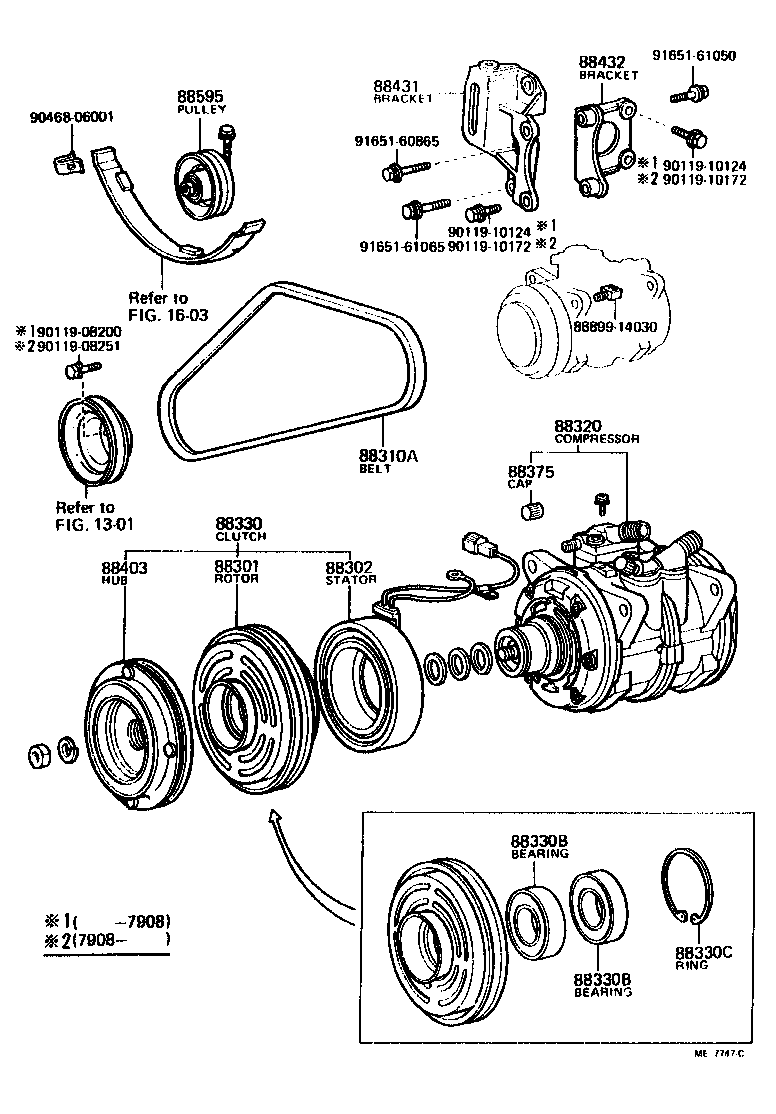

CELICA | HEATING AIR CONDITIONING COMPRESSOR ** Refer Fig ** Refer Fig 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH 88302 - STATOR SUB-ASSY, MAGNET CLUTCH 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 88320 - COMPRESSOR ASSY, COOLER 88330 - CLUTCH ASSY, MAGNET 88330B - BEARING, MAGNET CLUTCH 88330B - BEARING, MAGNET CLUTCH 88330C - RING, SNAP (FOR MAGNET CLUTCH) 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE 88403 - HUB SUB-ASSY, MAGNET CLUTCH 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 88595 - PULLEY, COOLER COMPRESSOR IDLE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
