TOYOTA CELICA MA46L-BLHQEA / POWERTRAIN-CHASSIS / TORQUE CONVERTER FRONT OIL PUMP CHAIN ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

TORQUE CONVERTER FRONT OIL PUMP CHAIN ATM

(7901- )RA43..GT ; (7901- )4FC..SPR,ST

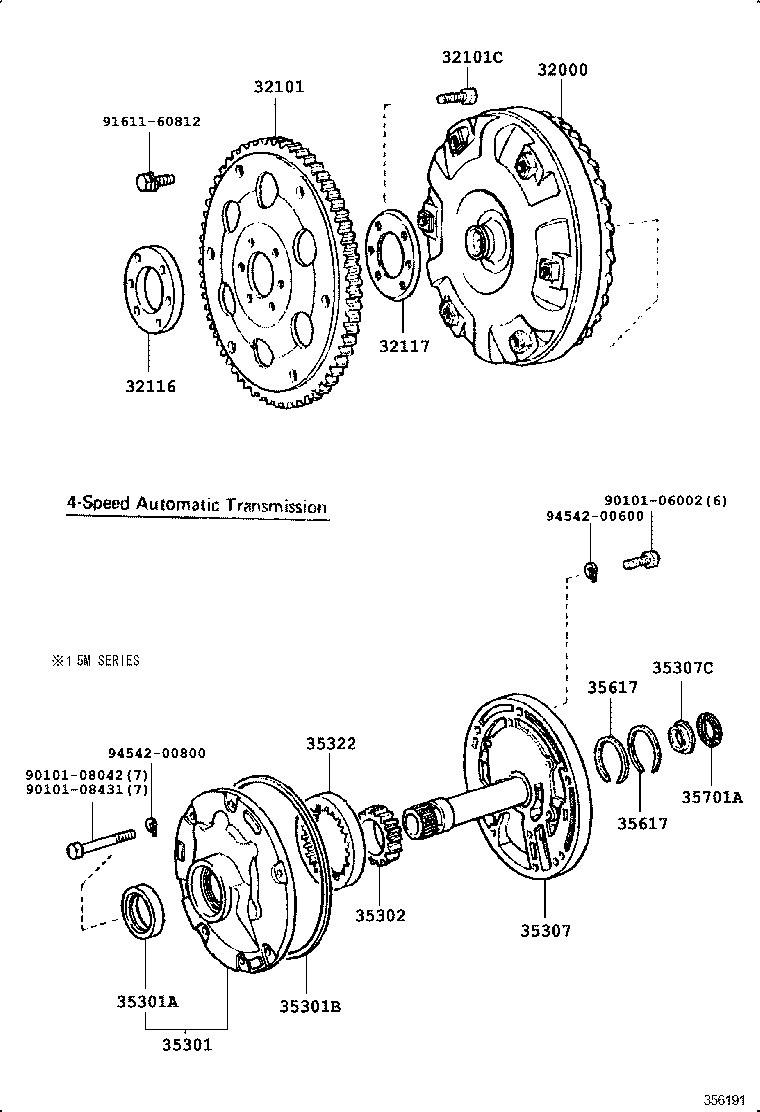

CELICA | TORQUE CONVERTER FRONT OIL PUMP CHAIN ATM 32000 - CONVERTER ASSY, TORQUE 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) 32116 - SPACER, DRIVE PLATE, FRONT 32117 - SPACER, DRIVE PLATE, REAR 35301 - BODY SUB-ASSY, FRONT OIL PUMP 35301A - SEAL, OIL (FOR FRONT OIL PUMP) 35301B - RING, O (FOR FRONT OIL PUMP BODY) 35302 - GEAR SUB-ASSY, FRONT OIL PUMP DRIVE 35307 - SHAFT SUB-ASSY, STATOR 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) 35322 - GEAR, FRONT OIL PUMP DRIVEN 35617 - RING, CLUTCH DRUM OIL SEAL 35617 - RING, CLUTCH DRUM OIL SEAL 35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
