TOYOTA CRESSIDA MX32L-EHGEA / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

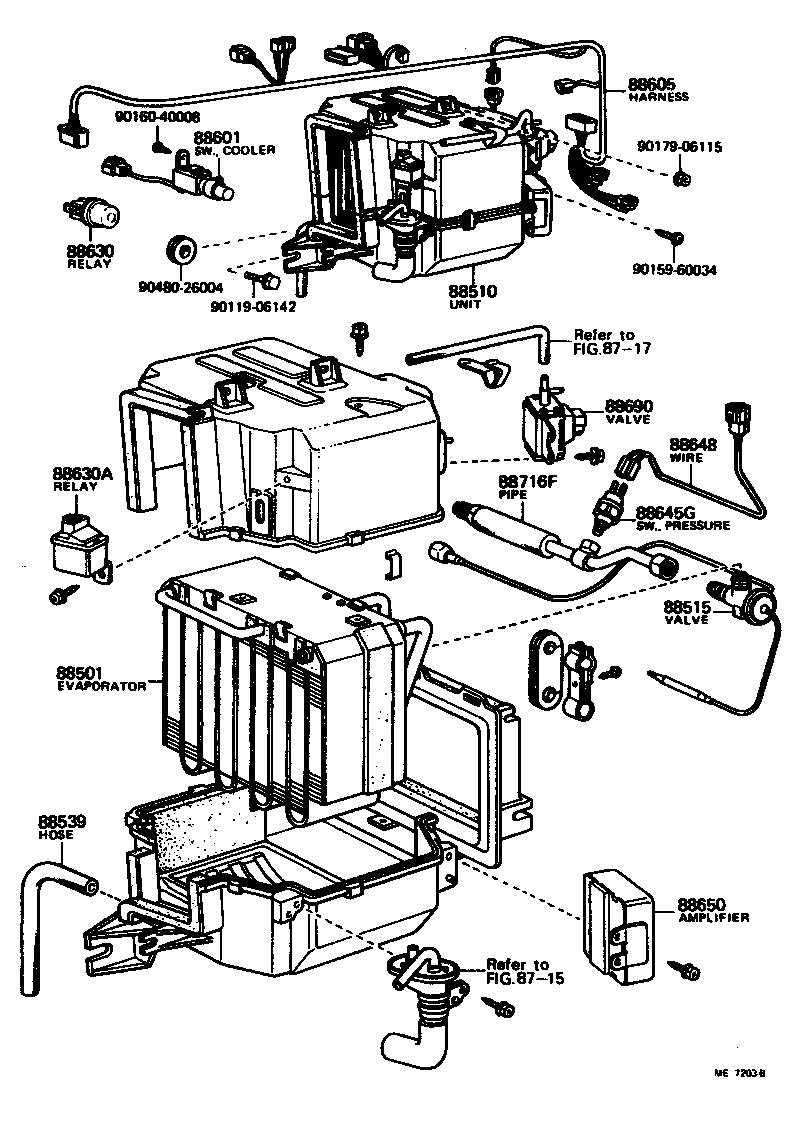

HEATING AIR CONDITIONING COOLER UNIT

(7808-8008)LG

CRESSIDA | HEATING AIR CONDITIONING COOLER UNIT ** Refer Fig ** Refer Fig 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88510 - UNIT ASSY, COOLER 88515 - VALVE, COOLER EXPANSION 88539 - HOSE, COOLER UNIT DRAIN, NO.1 88601 - SWITCH SUB-ASSY, COOLER CONTROL 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 88630 - RELAY ASSY, COOLER 88630A - RELAY ASSY, COOLER 88645G - SWITCH, PRESSURE 88648 - WIRING, COOLER, NO.1 88650 - AMPLIFIER ASSY, COOLER STABILIZER 88690 - VALVE ASSY, COOLER MAGNET 88716F - PIPE, COOLER REFRIGERANT LIQUID, F ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
