TOYOTA STARLET KP61L-PGMRCA / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

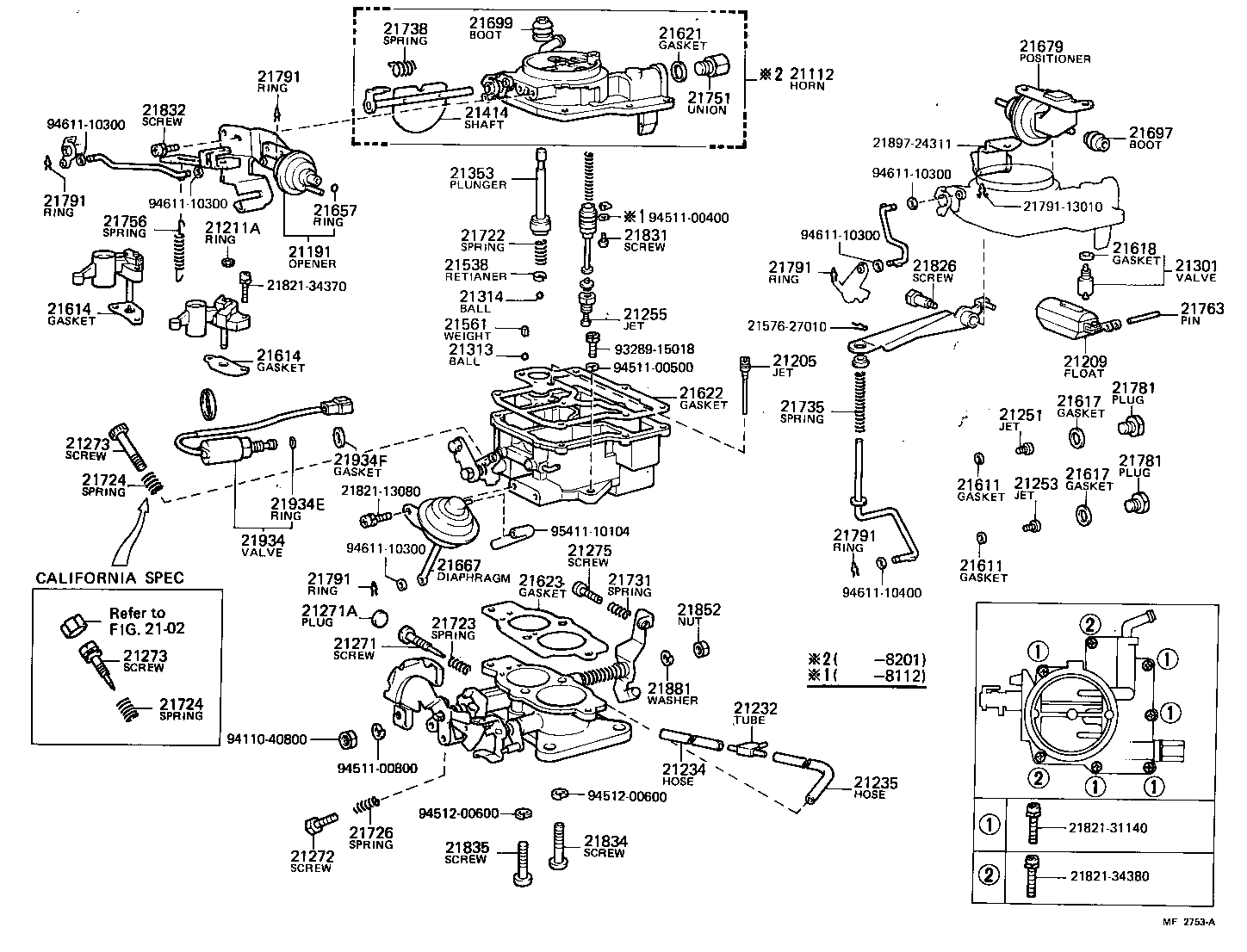

CARBURETOR

(8108-8208)

 STARLET |  CARBURETOR ** Refer Fig 21112 - HORN, AIR 21191 - OPENER 21205 - JET SUB-ASSY, SLOW 21209 - FLOAT SUB-ASSY 21211A - RING(FOR SMALL VENTURI) 21232 - TUBE 21234 - PIPE OR HOSE 21235 - PIPE OR HOSE, CONNECTING 21251 - JET, 1ST MAIN 21253 - JET, 2ND MAIN 21255 - JET, POWER 21271 - SCREW, IDLE ADJUSTING 21271A - PLUG, IDLE LIMIT 21272 - SCREW, 1ST IDLE ADJUSTING 21273 - SCREW, THROTTLE ADJUSTING 21273 - SCREW, THROTTLE ADJUSTING 21275 - SCREW, ADJUSTING 21301 - VALVE SUB-ASSY, NEEDLE 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) 21353 - PLUNGER, PUMP 21414 - SHAFT, CHOKE 21538 - RETAINER, BALL CHECK 21561 - WEIGHT, PUMP DISCHARGE  ** Std Part 21611 - GASKET, MAIN JET 21611 - GASKET, MAIN JET 21614 - GASKET, VENTURI 21614 - GASKET, VENTURI 21617 - GASKET, MAIN PASSAGE PLUG 21617 - GASKET, MAIN PASSAGE PLUG 21618 - GASKET, NEEDLE VALVE SEAT 21621 - GASKET, UNION NIPPLE 21622 - GASKET, AIR HORN 21623 - GASKET, BODY FLANGE 21657 - RING, O(FOR ADJUSTING SCREW) 21667 - DIAPHRAGM 21679 - POSITIONER 21697 - BOOT(FOR SLIDING ROD) 21699 - BOOT(FOR PUMP PLUNGER) 21722 - SPRING, PUMP DAMPING 21723 - SPRING, IDLE ADJUSTING 21724 - SPRING, THROTTLE ADJUSTING 21724 - SPRING, THROTTLE ADJUSTING 21726 - SPRING, 1ST IDLE ADJUSTING 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING 21735 - SPRING, PUMP ARM 21738 - SPRING, CHOKE VALVE RELIEF 21751 - UNION, NIPPLE 21756 - SPRING, BACK(FOR THROTTLE SHAFT) 21763 - PIN, FLOAT LEVER 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part 21826 - SCREW, PUMP ARM SET 21831 - SCREW, POWER PISTON STOP 21832 - SCREW(FOR CHOKE LEVER ADAPTER SET) 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) 21835 - SCREW, SET, NO.3(FOR CARBURETOR BODY SET) 21852 - NUT, THROTTLE LEVER SET 21881 - WASHER, LOCK(FOR THROTTLE SHAFT)  ** Std Part 21934 - SOLENOID, THROTTLE VALVE 21934E - RING, O(FOR SOLENOID VALVE) 21934F - GASKET  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
